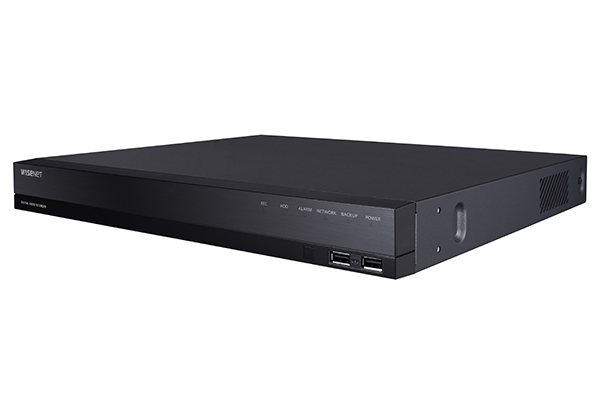

Đầu ghi hình camera AHD/HDTVI/HDCVI/CVBS/IP 4 kênh Hanwha Techwin WISENET HRX-421

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Mã: HRX-421 Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera AHD/HDTVI/HDCVI/CVBS/IP 4 kênh Hanwha Techwin WISENET HRX-421

– Đầu ghi hình camera 4 kênh (5 in 1).

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Ngõ vào: AHD/HDTVI/HDCVI/CVBS/IP.

– Ghi hình: 8fps@8MP, 12fps@5MP, 30fps@2MP.

– Coaxial control.

– Smart search (only Network camera).

– Hỗ trợ 2 ổ cứng SATA dung lượng lưu trữ mỗi ổ 6TB.

– HDMI/VGA monitor.

– P2P service (QR code connect).

Đặc tính kỹ thuật

Model	HRX-421
Analog camera
Inputs	4CH(1Vp-p 75ohm, BNC)
Signal Type	AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL)
Network camera
Inputs	Max. 6CH
Resolution	8MP ~ CIF
Protocols	SUNAPI(Wisenet), ONVIF
Live
Local Display	HDMI: 3840 x 2160, 1920×1080, 1280×720 VGA: 1920×1080, 1280×720
Resolution	[Analog Camera(NTSC/PAL)] – 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) per CH [Network Camera] – Typ. 2MP(120fps)
Performance
Compression	H.265, H.264, MJPEG
Record Rate(Analog)	Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Str
Recording Bandwidth	Max. 25Mbps (Analog Camera only) ~ 17Mbps (Network Camera only)
Resolution	8MP ~ CIF
Mode	Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
Event Trigger	Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Play
Playback Bandwidth	Max. 32Mbps (6CH simultaneously)
User	Max. 4 Users (Local 1, Remote 3)
Simultaneous playback	6CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web)
Fisheye Dewarping	WEB / CMS
Storage
Supported HDD	Up to 6TB
HDD Slot	SATA 2ea(Max 12TB)
Backup
File backup	BU, EXE(Include Player), AVI(Webviewer only)
Function	Max. 6 CH play, Date-time/title display
PTZ
Control	Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart phone
Support Model	iOS, Android
Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
Control	Live(4ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push
Max. Remote Users	Search(3), Live Unicast(10)
Redundancy
ARB	Support
Easy configuration	Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial Control	CVBS(Pelco-C)/AHD/CVI/TVI
Interface
HDMI	1EA
VGA	1EA
BNC	4CH In / 1CH Out(Spot Output)
Audio	Out(1EA, RCA, Line)
Ethernet	RJ-45(10/100/1000BASE-T)
Alarm	In 4EA, Out 2EA – Relay Out1(NO/NC/COM) – Relay Out2~4(NO/COM)
USB	2EA(Front USB2.0, Rear USB 3.0))
Serial(Protocols)	RS-485/422 (Samsung-T/Pelco-D/Pelco-p)
Power inlet	1EA DC Input Jack
System
System Control	Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC2000)
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature	0°C to +40°C(+32℉ to +104℉)
Operating Humidity	20% ~ 85% RH
Certification	UL, CE, FCC, KC
Electrical
Power Input	DC12V
Power Consumption	Max. 28W (6T HDD 2ea)
Mechanical
Color / Material	Black / Metal
Dimension	370.0x 44.0 x 320mm
Weight	Approx. 2.3Kg

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
