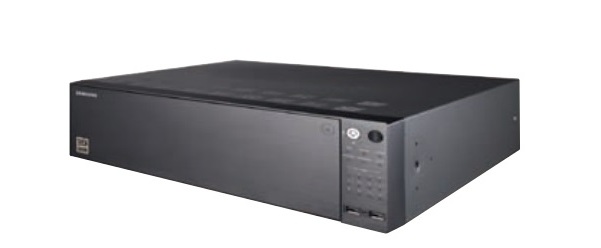

Đầu ghi hình camera IP 16 kênh Hanwha Techwin WISENET XRN-1610S/KAP

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 16 kênh Hanwha Techwin WISENET XRN-1610S/KAP

-Đầu ghi hình camera IP 16 kênh.

-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

-Độ phân giải: 12 Megapixel.

-Hỗ trợ 4 ổ cứng SATA dung lượng lưu trữ tối đa 24TB.

-Hỗ trợ 1 ổ cứng eSATA.

-Hỗ trợ WiseStream.

-Ghi hình camera qua mạng lên đến 180Mbps.

-Hỗ trợ âm thanh: 2 chiều.

-Hỗ trợ giao thức: TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client).

-Đa ngôn ngữ.

-Cổng kết nối: RJ45.

-Chức năng cấp nguồn qua mạng PoE.

-Nguồn điện cung cấp: 100 ~ 240VAC.

-Kích thước: 440 x 88 x 384.8mm.

-Trọng lượng: 5.1kg.

Đặc tính kỹ thuật

Inputs	Up to 16 CH
Resolution	CIF ~ 12MP
Protocols	Samsung, ONVIF
Local Display	1x HDMI, 1x VGA dual monitor
Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence
Performance	[Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), 2MP (480fps), 720p (480fps), D1 (480fps). [Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps)
Embedded	Linux
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	180Mbps
Resolution	CIF ~ 12MP
Mode	Normal, Schedule (Continuous / Event), Event (Pre/ Post)
Event Trigger	Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics),
	VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear,
	Face detection, Audio Detection), Defocus camera event
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth	32Mbps (16 CH simultaneously
Performance	Max. 4 users (Local 1, Remote 3)
Mode	Date & Time (Calendar) / Event log list / Text search (POS, ANPR)
Simultaneous Playback	Max. 16CH (Local monitor, CMS)
Resolution	CIF ~ 12MP
Fish-eye Dewarping	Processed on Web / CMS
Playback Control	Fast/Slow Forward/Backward, Move one step up/down
External	iSCSI storage (Max. 384TB), Promise VessRaid R2600
Internal HDD	0TB ~ 6TB
Internal / External	4 SATA (Max. 24TB) / 1 e-SATA, iSCSI (Max. 384TB, PROMISE VESSRAID R2600)
File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Function	Max. 16CH play, Date-time/title display
Input / Output	8 / 4 (NO/NC selectable)
Input	16CH (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way (Pass-through between camera and SSM)
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	iPOLiS DDNS
Transmission Bandwidth	Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Web Browser	Plug-in free Webviewer
	– Supported Browser : Google Chrome 47, MS Edge 20
	– WMF : 1CH live (800 x 600), Setup
	Plug-in Webviewer
	– Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only
Viewer	Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Software	CMS Support: SDK / CGI (SUNAPI)
Camera Setup	Register: PnP mode, Manual mode
	Setup Items: IP address, Add profile edit, Bitrate, Compression, GOP, Quality.
	Camera event setup – MD, VA: Tampering, Enter / Exit,
	Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection)
	Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS,
	WDR, D&N, SSNR, Shutter, SSDR, DIS)
	Fisheye dewarping, Hallway view setup, Camera webpage
PoE (PoE+)	Monitor PoE/PoE+ power consumption, On/Off control for each PoE/
PoE (PoE+)	PoE+ camera, Remote reset for each PoE/PoE+ camera
Time Sync.	NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time)
ARB (Auto Recovery Backup)	Yes
PTZ	Control / Preset: Via GUI, Webviewer, SPC-2000 / 255 presets
Smart Phone	OS: Android, iOS
	Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
	Control: Live (16CH): Multi-profile support, Playback (1CH, Max 2MP).
	Max. Remote Users: Search 3 / Live unicast 10
System Control	Mouse, Web, SPC-2000 (USB)
Indicator	Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea
Indicator	Record status LED 1ea, Network action LED 1ea, Backup LED 1ea
USB	2ea (Front 1ea / Rear 1ea)
HDMI	Main: 1ea (Both support Live / PB / Setup)
HDMI	Support up to 4K (3840 x 2160, Single monitor mode)
VGA	Sub: 1ea (Support live screen up to 16 div. mode)
Audio/ Serial	Out 1ea (RCA, Line) / 1ea for UPS (Plan to support as project basis)
Ethernet	16ea (PoE (PoE+), 100Mbps), 2ea (LAN/WAN, 1Gbps) – LAN: Downlink to camera / PoE (PoE+) Hub – WAN: Uplink to CMS
Alarm	In 8ea (Terminal block) / Out 4ea (Terminal block)
Reset / Power Cord	Yes (Factory reset, Alarm reset) / Included
Log List	Max. 20,000 (System log, Event log each)
Input Voltage / Current	100 ~ 240VAC
Power Consumption	Max. 271.9W (4 HDDs, PoE/PoE+ on), Max. 51.9W (4 HDDs, PoE/PoE+ off )PoE/PoE+ Budget: Max. 220W
Color / Material	Black / Metal
Dimensions	440.0 x 88.0 x 384.8mm
Weight	5.1kg

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
