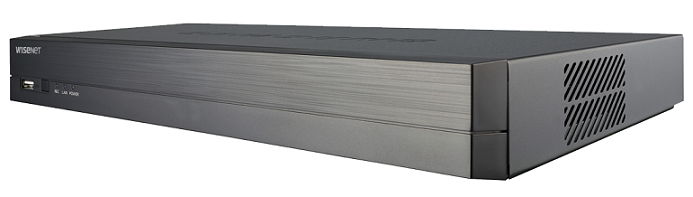

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET QRN-410P

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET QRN-410P
-Đầu ghi hình camera IP 4 kênh.
-Độ phân giải: 8 Megapixel.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Ghi hình camera qua mạng 50Mbps.
-Hỗ trợ 1 ổ cứng SATA dung lượng tối đa 6TB.
-Hỗ trợ ARB.
-Hỗ trợ P2P service (QR code connect).
-Nguồn điện: 12VDC/ 4A.
-Kích thước: 300 x 48 x 208.7mm.
-Trọng lượng: 1.66kg.
Đặc tính kỹ thuật

Inputs	Up to 4CH
Resolution	CIF ~ 8MP
Protocols	Samsung, ONVIF
Local Display	HDMI / VGA
Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 Auto sequence
Multi Screen Display	[Web] 1 / 4 Auto sequence
Performance	[Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps), 720p (240fps), D1 (240fps)
Embedded	Linux
Compression	H.265, H.264, MJPEG
Recording Bandwidth	50Mbps
Resolution	CIF ~ 8MP
Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger	Alarm input (4), Video loss, Camera event (Sensor, MD, Video analytics, Defocus)
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth	32Mbps (4CH simultaneously)
Performance	Max. 3 users (Local 1, Remote 3)
Mode	Date & Time (Calendar) / Event log list / Text search (POS, ANPR), ARB search, Smart search (Virtual Line w/ direction, Enter / Exit)
Simultaneous Playback	Up to 4CH (Local, Network)
Resolution	CIF ~ 8MP
Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Default Built-In	0TB ~ 6TB
Internal	1 (Max.6TB)
Max. Capacity	6TB
File Backup	BU/EXE (USB), JPG/AVI (Web, CMS)
Function	Multi channel (Up to 8CH) play, Date-time/title display
Input / Output	4 / 2 (NO 1ea, NO/NC 1ea)
Input	4CH (Network)
Compression	G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Hanwha security DDNS
Transmission Bandwidth	64Mbps
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai
OS	Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Web Browser	Non-plugin Webviewer
	Supported Browser : Google Chrome 47, MS Edge 20
	Plug-in Webviewer
	Supported MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only
Type	SSM, Webviewer, SmartViewer, Wisenet mobile
CMS Support	SDK / CGI (SUNAPI)
Register	PnP mode, Manual mode
Setup Items	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping (Web), Hallway view setup, Camera webpage
PoE	Monitor PoE power consumption, On/Off control for each PoE camera, Remote reset for each PoE camera
Easy Configuration	Setup wizard (Date/Time, Network, Auto camera configuration), P2P (QR code)
ARB	Yes
Control / Preset	Via GUI, Webviewer, 255 presets
OS	Android, iOS
Protocol Support	RTP, RTSP, HTTP, CGI (SUNAPI)
Control	Live (8CH): Multi-profile support, Playback (1CH), Event push
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese(Simplified), Japanese, Thai
OS	Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Web Browser	Non-plugin Webviewer
	Supported Browser: Google Chrome 47, MS Edge 20
	Plug-in Webviewer
	Supported MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only
Type	SSM, Webviewer, SmartViewer, Wisenet mobile
CMS Support	SDK / CGI (SUNAPI)
System Control	Mouse, IR Remocon, Web
Register	Auto mode, Manual mode
Setup Items	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness /
Setup Items	Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping (Web), Hallway view setup, Camera webpage
ARB	Yes
Control / Preset	Via GUI, Webviewer, 255 presets
OS	Android, iOS
System Control	Mouse, IR Remocon, Web
Indicator	Power status LED 1ea, LAN LED 1ea, Record status LED 1ea
VGA	1ea
HDMI	1ea – Support up to 4K (3840 x 2160)
Audio	Out 1ea (RCA, Line)
Ethernet	1ea (WAN, 1Gbps) – WAN: Uplink to CMS
Alarm	In 4ea (Terminal block) / Out 3ea (Terminal block)
USB	2ea (Front 1, Rear 1)
Reset	Switch (1ea)
Power Cord	Included
Log List	Max. 20,000 (System log, Event log each)
Input Voltage / Current	12VDC/ 4A
Power Consumption/	MAX.9W (134BTU, 2TB HDD x 1ea) / Max.100W
PoE Budget	MAX.9W (134BTU, 2TB HDD x 1ea) / Max.100W
Dimensions	300.0 x 48.0 x 208.7mm
Weight	1.66kg

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Bảo hành: 12 tháng.
