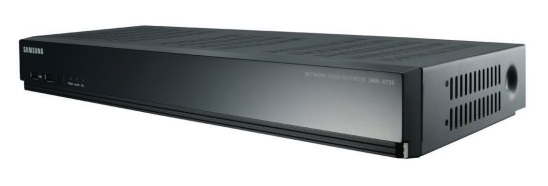

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET SRN-473S/KAP

-Độ phân giải: 8 Megapixel.

Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera IP 4 kênh Hanwha Techwin WISENET SRN-473S/KAP

-Đầu ghi hình camera IP 4 kênh.

-Độ phân giải: 8 Megapixel.

-Ghi hình camera qua mạng lên đến 32Mbps.

-Hỗ trợ 1 ổ cứng SATA dung lượng lưu trữ 4TB.

-Hỗ trợ âm thanh: 2 chiều.

-Cổng kết nối: RJ45.

-2 ngõ vào báo động, 1 ngõ ra báo động.

-Hỗ trợ hệ điều hành: Windows XP, Vista, 7, 8, Mac OS.

-Hỗ trợ trình duyệt Web: Microsoft Internet Explorer, Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above), Apple Safari (Ver. 6.0.3 or above).

-Nguồn điện cung cấp: 54VDC.

-Chức năng cấp nguồn qua mạng PoE.

-Công suất tiêu thụ: Tối đa 77W.

-Kích thước: 360 x 44 x 159.9mm.

-Trọng lượng: 1.6kg.

Đặc tính kỹ thuật

Inputs	Up to 4 CH
Resolution	CIF ~ 8MP
Protocols	Samsung, ONVIF
Local Display	HDMI / VGA
Multi Screen Display	[Local monitor] 1 / 4 / Auto sequence, [Web] 1 / 4 / Auto sequence
Performance	[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps), 720p (120fps), D1 (120fps) [Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1 (120fps)
Embedded	Linux
Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth	32Mbps, 2M 4 camera real-time recording
Resolution	CIF ~ 8MP
Mode	Normal, Schedule (Continuous / Event), Event (Pre/ Post)
Event Trigger	Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics)
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth	32Mbps
Performance	Max. 3 users
Mode	Date & Time (Calendar) / Event log list / Text search (POS)
Simultaneous Playback	[Local monitor] Up to 4CH, [Web, CMS] Up to 4CH
Resolution	CIF ~ 8MP
Fish-eye Dewarping	Via Smartviewer
Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Internal HDD	1SATA
Max.Capacity	Internal 4TB
File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Function	Max. 4CH play, Date-time/title display
Input / Output	2 / 1 (NO/NC 1ea)
Input / Compression	4CH (Network) / G.711, G.726, AAC (16/48KHz)
Audio Communication	2-way
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	Samsung iPOLiS DDNS
Transmission Bandwidth	Max. 64Mbps
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian,
Language	Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Web Browser	Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended)
	Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above),
	Apple Safari (Ver. 6.0.3 or above)
Viewer	Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Software	CMS Support: SDK / CGI (SUNAPI)
Camera Setup	Register: PnP mode, Manual mode
	IP address, Add profile edit, Bitrate, Compression, GOP, Quality
	Camera MD setup. Camera video setup (Simple focus, Brightness/ Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS)
PoE	Monitor PoE power consumption, On/Off control for each PoE camera
PoE	Remote reset for each PoE camera
Easy Configuration	Setup Wizard (Language Date/Time, Network, Auto camera configuration)
ARB (Auto Recovery Backup)	Yes
PTZ	Control / Preset: Via GUI, Webviewer, SPC-2000 / 255. OS: Android, iOS
PTZ	Control: Live (4CH)/ Playback (1CH)
OS	Android, iOS
Control	Live (4CH) / Playback (1CH)
System Control	Mouse, IR Remocon, Web, SPC-2000 (Controller)
Indicator	Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea
Indicator	Record status LED 1ea, Network action LED 1ea, Backup LED 1ea
USB	2ea (Front 1ea / Rear 1ea)
HDMI/VGA	1ea/ 1ea
Audio	Out 1ea (RCA, Line)
Ethernet	RJ-45 4ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 100Mbps)
Alarm	In 2ea (Terminal block) / Out 1ea (Terminal block)
Reset	Yes (Factory reset)
Log List	Max. 20,000 (System log, Event log each)
Input Voltage / Current	100 ~ 240VAC
Power Consumption	54VDC/ 1.67A
PoE Budget	Max. 50W
Color / Material	Black / Metal
Dimensions	360.0 x 44.0 x 159.9mm
Weight	1.6kg

–Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
