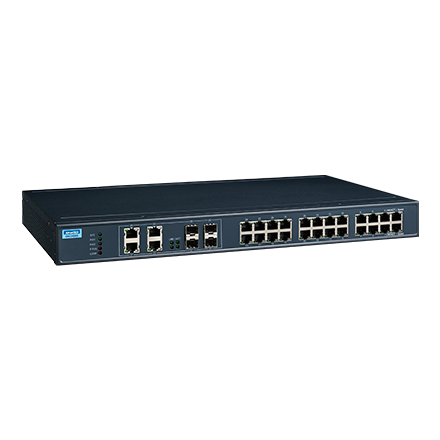

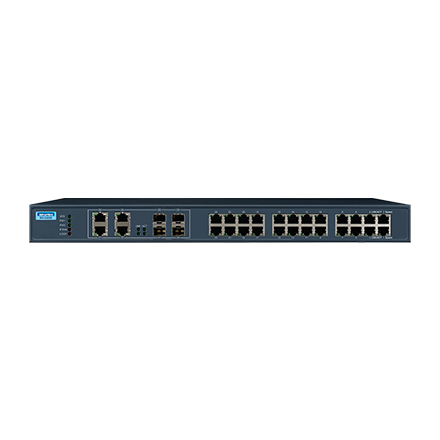

Switch Advantech EKI-2428G-4CI
24GE+4G Combo Unmanaged Ethernet Switch, 19″ Rackmount, -40~75℃
- 24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Provides 8K MAC address
- Supports 12-48V DC power input
- -40 ~ 70°C wide-range operating temperature
The EKI-2428G is an industrial-class unmanaged switch with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It is highly reliable with -40 ~ 70 °C wide temperature operation.
- Part Number
- Details
-
EKI-2428G-4CI-AE
- Description
- Total Port Number
- 24 x 10/100/1000BaseT(X) + 4 x 10/100/1000BaseT(X) RJ45/SFP (Combo)
- 28
- EMI
- EMS
- Safety
- CE, FCC, EN55022 Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- UL 61010-2-201
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- -40°C (-40°F)
- 70°C (158°F)
- -40 ~ 70°C (40~158°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- Fiber Transmission Speed
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- 4 (combo)
- SFP
- SFP
- Up to 110km
- 10/100/1000 Mbps
- 24 + 4 (combo)
- RJ45
- 100 m
- 10/100/1000 Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Weight
- –
- –
- –
- –
- Yes
- –
- 438 x 43.6 x 259.2 mm
- Yes
- –
- IP30
- 3.8kg
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (AC)
- Power Input (DC)
- Power Input (PoE)
- Power Input (Battery)
- Power Operating Current
- 4-pin removable screw terminal (power & relay)
- 20 W (system)
- –
- 12 ~ 48 VDC, (8.4VDC ~ 52.8VDC)
- –
- –
- 0.83A @ 24V
- Layer 2 – Unmanaged Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- 9,216 bytes
- 8K
- 4.1M bit
- 56Gbps
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
