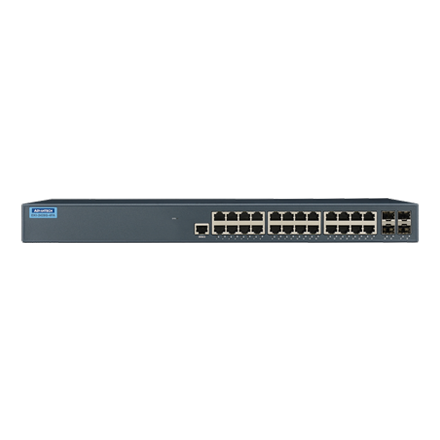

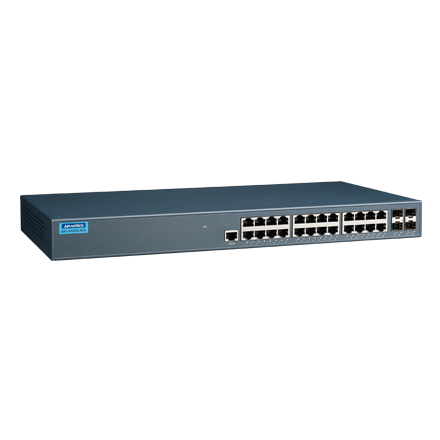

Switch Advantech EKI-2428G-4FA
24GE+4G SFP Unmanaged Ethernet Switch, 19″ Rackmount, 100~240VAC, 0~55℃
- 24 x Gigabit copper ports + 4 x Gigabit SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Provides 8K MAC address
- 100~240V AC power input
The EKI-2428G is an unmanaged switch with 24 Gigabit ports and 4 Gigabit SFP ports. It is designed for rack-mount installation, and suitable for edge to core industrial networks. The wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding.
- Part Number
- Details
-
EKI-2428G-4FA-AE
- Description
- Total Port Number
- 24 x 10/100/1000BaseT(X) + 4 x 100/1000Base SFP
- 28
- EMI
- EMS
- Safety
- CE FCC Class A
- EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
- –
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- 0°C (32°F)
- 55°C (131°F)
- 0 ~ 55°C (32 ~ 131°F)
- -20 ~ 70°C (-4 ~ 158°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- Fiber Transmission Speed
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- 4
- SFP
- SFP
- Up to 110km
- 100/1000 Mbps
- 24
- RJ45
- 100 m
- 10/100/1000 Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Weight
- –
- –
- –
- –
- Yes
- –
- 442 x 44 x 211 mm
- Yes
- –
- IP20
- 3kg
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Consumption
- Power Input (AC)
- Power Input (DC)
- Power Input (PoE)
- Power Input (Battery)
- Power Operating Current
- 18W
- 100~240VAC
- –
- –
- –
- 0.9A
- Layer 2 – Unmanaged Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- –
- 8K
- 4.1M bit
- 56Gbps
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
