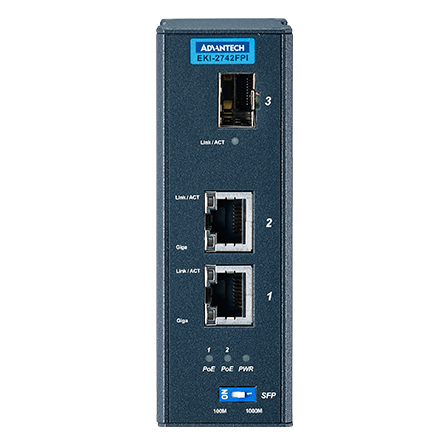

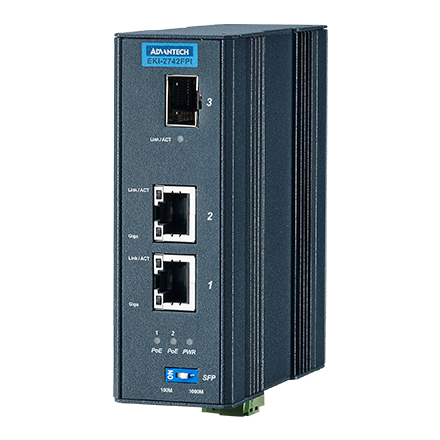

Switch Advantech EKI-2742FPI
2GE PoE, SFP Injector ,IEEE802.3af/at, 48VDC, -40~75℃
- Supports multi-rate for SFP slot
- IEEE 802.3af/at compliant
- Power input 48 VDC, supply 30W per port
- Provides slim size and DIN-rail/Wall mount with IP31 metal mechanism
- Supports operating temperatures from -40 to 75°C
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2741FPI / EKI-2742FPI are compliant IEEE 802.3af/at and supply to 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C.
- Part Number
- Details
-
EKI-2742FPI-AE
- Yes
- Ethernet Standard
- Safety
- EMC
- EMI
- EMS
- Shock
- Freefall
- Vibration
- IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab
- UL508, Class 1 Division 2
- CE, FCC
- EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
- Description
- Fiber Port Interface (X)
- Fiber Port Description (X)
- 2 x 10/100/1000Base-T(X)
- SFP
- 1
- RJ45 Transmission Distance
- Fiber Transmission Distance
- 100 m
- Up to 110km
- PoE Port Number
- 2
- Switch Fabric Speed
- Jumbo Frame
- 1.0Gbps
- 10K bytes
- Dimensions (W x H x D)
- IP Rating
- Enclosure (Metal)
- Weight
- Mounting (X)
- 36.7 x 108.4 x 103.5 mm
- IP31
- Metal
- 0.45 Kg
- DIN-rail, Wall
- Temperature (Operating Range)
- Temperature (Storage Range)
- Relative Humidity
- -40 ~ 75°C (-40 ~ 167°F)
- – 40 ~ 85°C ( -40 ~ 185°F)
- 10 ~ 95%
- Time
- Method
- 717,339 hours
- Telcordia(Relax), GB
- Power Input (AC)
- Power Operating Current
- Power Consumption
- Power Connector Type
- Reverse Polarity (X)
- 48 VDC
- 0.07A @48Vdc(system)
- 63.5W
- 2-pin removeable screw terminal
- Present
- Warranty Period
- 5 years
