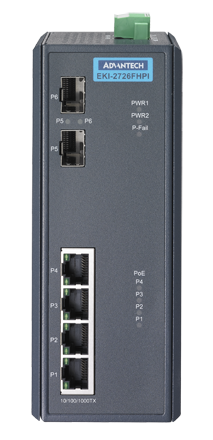

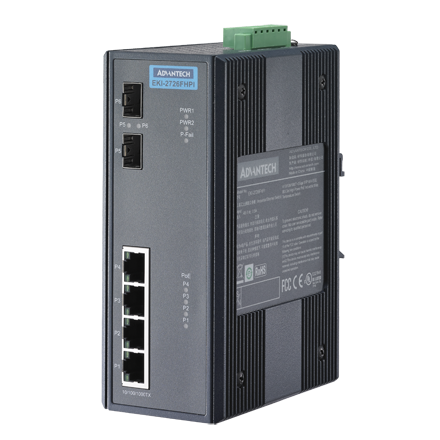

Switch Advantech EKI-2726FHPI
4GE PoE and 2G SFP Unmanaged Ethernet Switch, IEEE802.3af/at, 44~57VDC, -40~75℃
- Supports Jumbo Frames up to 9K bytes
- All Gigabit Ethernet ports for 4 Copper and 2 SFP
- Back-plane (Switching Fabric): 12Gbps
- Embedded 4 ports PoE inject function
- Provide 30W at 55V power output
- Redundant Power Design
- IP-30 Chassis Design
- Supports operating temperatures from -40 ~ 75°C
The EKI-2726 FHPI switch has 4 x 10/100/1000BASE-T Ethernet ports with PoE function and 2 x SFP sockets, it has been designed to work within a wide operating temperature range.This cost-effective solution, meets the high reliability requirements and demands of industrial applications. The equipment also meets the IEEE 802.3 at standard and can provide 30Watts output per PoE port.
- Part Number
- Details
-
EKI-2726FHPI-AE
- Yes
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- 4 x RJ-45, 2 x SFP: Gigabit Base
- Ethernet: up to 100 m, Fiber: up to 110 km
- 10/100/1000Mbps
- Power Input (DC)
- Power Consumption
- 2 x Unregulated 48 VDC
- 5.5 watts @48VDC (Ethernet only)
- 1 Relay Output
- Temperature (Operating Range)
- Temperature (Operating range) (X)
- Temperature (Storage Range)
- Humidity (Operating Range)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 75° C (-40 ~ 167° F)
- – 40 ~ 85° C (-40 ~185° F)
- 5 ~ 95% (non-condensing)
- 339,740
- LAN
- Transmission Speed
- Transmission Distance
- 10/100/1000Base-T, 1000Base-SX/LX/LHX/XD/ZX/EZX
- Copper: 10/100/1000 Mbps, Auto-Negotiation, Gigabit Fiber: Up to 1000 Mbps
- Ethernet: Up to 100 m, SFP: Up to 110 km (depends on SFP)
- Ethernet Standard
- IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab, 802.3z
- Reverse Polarity
- Overload Current
- Present
- Present
- Ports Number
- System: P1, P2, P-Fail, Per port: Link/Activity, Speed, PoE (1 to 4 ports)
- 6
- Enclosure (Metal)
- Dimensions (W x H x D)
- Mounting (X)
- IP30, metal shell with solid mounting kits
- 59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
- DIN-rail, Wall
