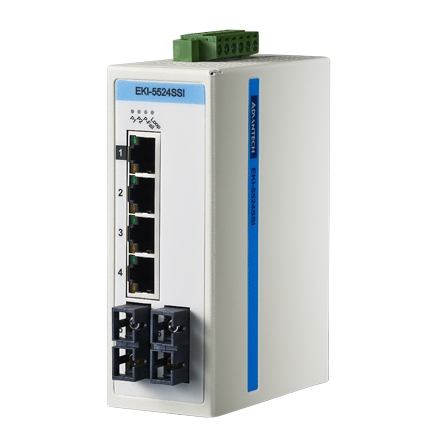

Switch Advantech EKI-5524SSI

4FE+2FE SC Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Mã: EKI-5524SSI Danh mục: Switch công nghiệp Advantech Từ khóa: EKI-5524SSI

Mô tả
Sản phẩm liên quan

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5524SSI/SSI-ST,EKI-5524MMI/MMI-ST only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize
the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Part Number
Details

EKI-5524SSI-AE

Buy Online

Configure System

Recommended for you: {{ReplaceBy}}

* Port Configuration

Description
Total Port Number

4 x 10/100 RJ45 + 2 x 100 Single-Mode SC Fiber

Certification

EMI
EMS
Safety

FCC Part 15 Subpart B Class A, EN 55011/55022 Class A

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment

Temperature (Min. Operating)
Temperature (Max. Operating)
Temperature (Operating Range)
Temperature (Storage Range)

-40°C (-40°F)

75°C (167°F)

-40 ~ 75°C (-40 ~ 167°F)

-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

Fiber Port Number
Fiber Port Interface
Fiber Port Connector Type
Fiber Transmission Distance
Fiber Transmission Speed
RJ45 Port Number
RJ45 Port Connector Type
RJ45 Transmission Distance
RJ45 Transmission Speed

Single-Mode

SC Type

Up to 30km

100 Mbps

RJ45

100 m

10/100 Mbps

Mechanism

Mounting (DIN-rail)
Mounting (Stack)
Mounting (Panel)
Mounting (Wall)
Mounting (Rack Mount)
Mounting (Pole Mount)
Dimensions (W x H x D)
Enclosure (Metal)
Enclosure (Plastic)
IP Rating
Weight

43 x 120 x 84 mm

IP30

PoE Information

PoE Port Number
PoE Budget
PoE Output
Support PoE

Power

Power Connector Type
Power Consumption
Power Input (AC)
Power Input (DC)
Power Input (PoE)
Power Input (Battery)
Power Operating Current
Redundant Dual Inputs

6-pin removable screw terminal ((power & relay)

Max. 4 W

12 ~ 48 VDC

0.16A @ 24V

Product Category

Layer 2 – Unmanaged Switch

Switch Properties

Jumbo Frame
MAC Table Size
Packet Buffer Size
Switch Fabric Speed

9,216 bytes

1M bit

1.2Gbps

Warranty

Warranty Period

5 years

Protection

Overload Current
Reverse Polarity

Present

Present
