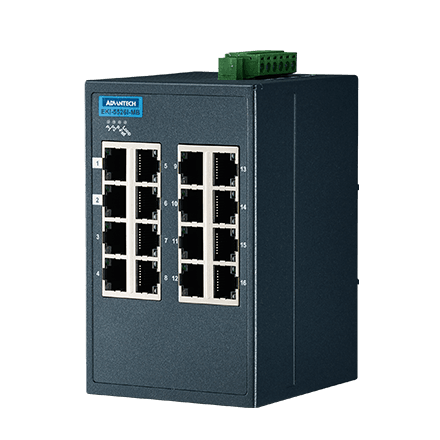

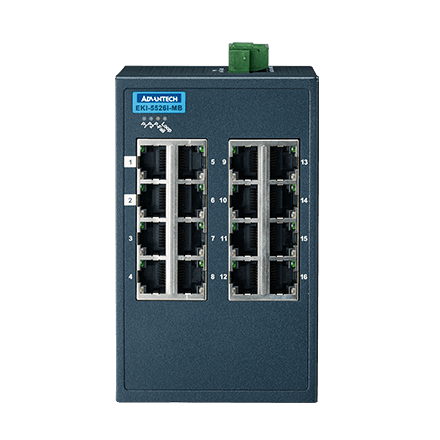

Switch Advantech EKI-5526I-MB
16FE Managed Ethernet Switch support Modbus/TCP, -40~75℃
- 16 ports Fast Ethernet RJ-45 (EKI-5526/I-MB)
- 16 ports Fast Ethernet RJ-45 (EKI-5526/I-MB)
- Entry-Level Managed Switch
- Entry-Level Managed Switch
- IXM function enables fast deployment
- IXM function enables fast deployment
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
The EKI-5526/I-MB are a new generation of entry-level managed switch products. They support basic Layer 2 managed function such as Ring, SNMP, IGMP etc. Besides, they support Modbus/TCP and can easily integrate with SCADA. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.
- Part Number
- Details
-
EKI-5526I-MB-AE
- Description
- Total Port Number
- 16 x 10/100BaseT(X)
- 16
- EMC
- EMI
- EMS
- Ethernet Standard
- Freefall
- Safety
- Shock
- Vibration
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- CE, FCC Class A
- –
- IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3AD,802.3az
- IEC 60068-2-32
- UL 508
- IEC 60068-2-27
- IEC 60068-2-6
- Relative Humidity
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- 10 ~ 95%
- 75°C (167°F)
- -40°C (-40°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Connector Type
- Fiber Port Interface
- Fiber Port Number
- Fiber Transmission Speed
- Fiber Transmission Distance
- RJ45 Port Connector Type
- RJ45 Port Number
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- RJ45/SFP Combo Port Number
- RJ45/SFP Combo Port Speed
- –
- –
- –
- –
- –
- RJ45
- 16
- 100 m
- 10/100Mbps
- –
- –
- Modbus TCP
- Modbus RTU
- PROFINET
- EtherNet/IP
- EtherCAT
- OPC UA
- BACnet
- Ethernet
- –
- Yes
- –
- –
- –
- –
- –
- Yes
- Dimensions (W x H x D)
- Enclosure (Plastic)
- Enclosure (Metal)
- IP Rating
- Mounting (DIN-rail)
- Mounting (Panel)
- Mounting (Pole Mount)
- Mounting (Rack Mount)
- Mounting (Stack)
- Mounting (Wall)
- Weight
- 74 x 120 x 84 mm
- –
- Yes
- IP30
- Yes
- –
- –
- –
- –
- Yes
- 700g
- Method
- Time
- Telcordia(Relax), GB
- 2,788,343 hours
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (AC)
- Power Input (Battery)
- Power Input (DC)
- Power Input (PoE)
- Power Operating Current
- Redundant Dual Inputs
- 6-pin removable screw terminal ((power & relay)
- 8W
- –
- –
- 12 ~ 48 VDC
- –
- 0.16A @ 48Vdc (system)
- –
- Reverse Polarity
- Overload Current
- Present
- –
- Layer 2 – Managed Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- 9,216 bytes
- 8K
- 4.1M bit
- 3.2Gbps
- Warranty Period
- 5 years
