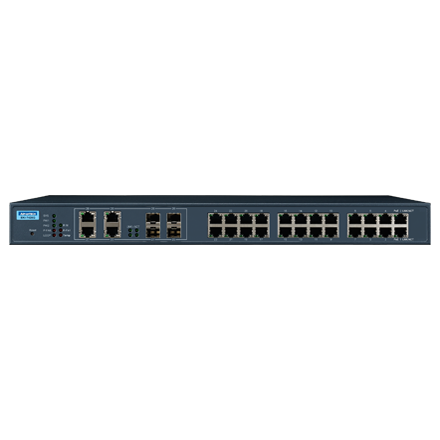

Switch Advantech EKI-7428G-4CPI
24GE PoE and 4G Combo Managed Ethernet Switch, IEEE802.3af/at, 19″ Rackmount, -40~75℃, 46~57VDC
- 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- -40 ~ 70°C wide-range operating temperature
The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 V DC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer’s time and costs.
- Part Number
- Details
-
EKI-7428G-4CPI-AE
- Yes
- Ethernet Standard
- Safety
- EMC
- EMI
- EMS
- Shock
- Freefall
- Vibration
- IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab,802.1p,802.3az, 802.3z
- UL 61010-2-201
- CE, FCC
- (X) EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
- Description
- Fiber Port Interface (X)
- Fiber Port Description (X)
- 24 x 10/100/1000BaseT(X), 4 x 10/100/1000BaseT(X) RJ45/SFP Combo ports
- SFP
- 4
- RJ45 Transmission Distance
- Fiber Transmission Distance
- 100 m
- Up to 110km
- Support PoE
- PoE Port Number
- PoE Budget
- PoE Output
- Yes
- 24
- 685W
- 25.5W
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- Jumbo Frame
- 8K
- 4.1M bit
- 56Gbps
- 9,216 bytes
- Dimensions (W x H x D)
- IP Rating
- Enclosure (Metal)
- Weight
- Mounting (X)
- 438 x 43.6 x 259.2 mm
- IP30
- Metal
- 3.8kg
- 1U 19″ Rack mount
- Temperature (Operating range) (X)
- Temperature (Storage Range)
- Relative Humidity
- -40 ~ 70°C (40~158°F)
- -40 ~ 85°C (-40 ~ 185°F)
- 10 ~ 95%
- Time
- Method
- 424,517 hours
- Telcordia(Relax), GB
- Power Input (AC)
- Power Operating Current
- Power Consumption
- Power Connector Type
- Reverse Polarity (X)
- 48 VDC, (46VDC ~ 57VDC)
- 0.4A @ 48V
- 20 W (system)
- 4-pin removable screw terminal (power & relay)
- Present
- Warranty Period
- 5 years
