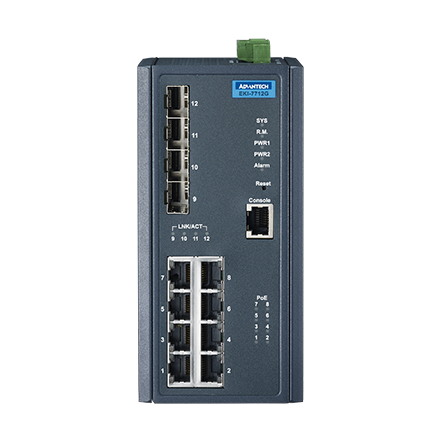

Switch Advantech EKI-7712G-4FPI
8GE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at, 46~57VDC, -40~75℃
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature
- Dual 48 VDC power input and 1 relay output
EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- Part Number
- Details
-
EKI-7712G-4FPI-AE
-
EKI-7712G-4FPI-AU
- Yes
- Yes
- Ports Number
- 12
- 12
- RJ45 Port Connector Type
- RJ45 Transmission Speed
- RJ45 Transmission Distance
- Fiber Transmission Distance
- 8 x RJ45, 4 x SFP
- 8 x RJ45, 4 x SFP
- 10/100/1000Base-T(X)
- 10/100/1000Base-T(X)
- 100 m
- 100 m
- Up to 110km
- Up to 110km
- Power Input (DC)
- Power Input (AC)
- Power Operating Current
- Power Consumption
- Power Connector Type
- Reverse Polarity (X)
- 48VDC
- 48VDC
- 48 VDC
- 48 VDC
- 0.25A @ 48Vdc (system)
- 0.25A @ 48Vdc (system)
- 12.1W (system)
- 12.1W (system)
- 6-pin removable screw terminal ((power & relay)
- 6-pin removable screw terminal ((power & relay)
- Present
- Present
- Ethernet Standard
- EMI
- Safety
- EMC
- Shock
- Freefall
- Vibration
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- CE, FCC Class A
- CE, FCC Class A
- UL 61010
- UL 61010
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- IEC 60068-2-27
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-32
- IEC 60068-2-6
- IEC 60068-2-6
- Description
- Fiber Port Interface (X)
- Fiber Port Description (X)
- 12 x 10/100/1000Base-T(X)
- 12 x 10/100/1000Base-T(X)
- SFP
- SFP
- 4 x SFP(mini-GBIC) ports
- 4 x SFP(mini-GBIC) ports
- PoE Port Number
- 8
- 8
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- Jumbo Frame
- 8K
- 8K
- 4.1M bit
- 4.1M bit
- 24Gbps
- 24Gbps
- 9,216 bytes
- 9,216 bytes
- Dimensions (W x H x D)
- IP Rating
- Enclosure (Metal)
- Weight
- Mounting (X)
- 74 x 152 x 105 mm
- 74 x 152 x 105 mm
- IP30
- IP30
- Metal
- Metal
- 1.1kg
- 1.1kg
- DIN-rail, Wall
- DIN-rail, Wall
- Temperature (Operating Range)
- Temperature (Storage Range)
- Relative Humidity
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- -40 ~ 85°C (-40 ~ 185°F)
- 10 ~ 95%
- 10 ~ 95%
- Time
- Method
- 1,001,782 hours
- 1,001,782 hours
- Telcordia(Relax), GB
- Telcordia(Relax), GB
- Warranty Period
- 5 years
- 5 years
- Place of production
- China
- Taiwan
