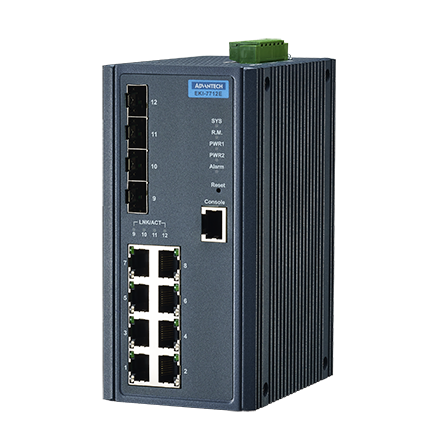

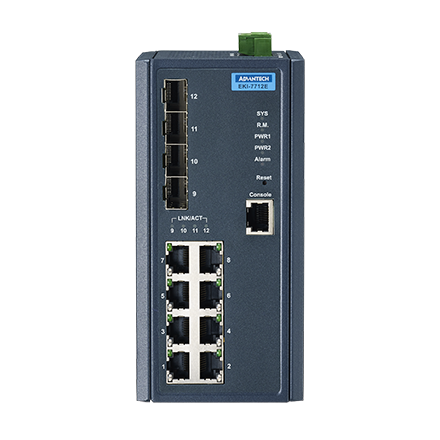

Switch Advantech EKI-7712E-4FI

8FE+4G SFP Managed Ethernet Switch, -40~75℃

Mã: EKI-7712E-4FI Danh mục: Switch công nghiệp Advantech Từ khóa: EKI-7712E-4FI

Mô tả
Sản phẩm liên quan

8 Fast Ethernet ports + 4 SFP ports
SFP socket for Easy and Flexible Fiber Expansion
Redundancy: X-Ring Pro (ultra high-speed recovery time
IXM function enables fast deployment
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
NEMA TS2 for Traffic Control
EN50121-4 approval for Railway trackside deployment
-40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)
Dual 12~48 VDC power input and 1 relay output

EKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Part Number
Details

EKI-7712E-4FI-AE

Buy Online

Configure System

Recommended for you: {{ReplaceBy}}
EKI-7712E-4FI-AU

Buy Online

Configure System

Recommended for you: {{ReplaceBy}}

* Port Configuration

Total Port Number
Description

1 x 10/100BaseT(X)
1 x 10/100BaseT(X)

Certification

Ethernet Standard
Vibration
Freefall
Shock
EMS
EMI
EMC
Safety

IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w

IEC 60068-2-6
IEC 60068-2-6

IEC 60068-2-32
IEC 60068-2-32

IEC 60068-2-27
IEC 60068-2-27

CE, FCC Class A
CE, FCC Class A

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

UL 61010
UL 61010

Environment

Temperature (Max. Operating)
Temperature (Min. Operating)
Relative Humidity
Temperature (Operating Range)
Humidity (Operating Range)
Temperature (Storage Range)

75°C (167°F)
–

-40°C (-40°F)
–

10 ~ 95%
10 ~ 95%

-40 ~ 75°C (-40 ~ 167°F)
-40 ~ 75°C (-40 ~ 167°F)

-40 ~ 85°C (-40 ~ 185°F)
-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication

RJ45/SFP Combo Port Speed
RJ45/SFP Combo Port Number
Fiber Port Supports VDSL
Fiber Port Optical Mode
Fiber Transmission Speed
Fiber Port Number
RJ45 Port Number
Fiber Transmission Distance
Fiber Port Connector Type
Fiber Port Interface
RJ45 Transmission Distance
Ethernet Standard
RJ45 Port Connector Type
RJ45 Transmission Speed

Up to 110km
Up to 110km

100 m
100 m

RJ45
8 x RJ45, 4 x SFP

10/100Mbps
10/100Base-T(X)

Mechanism

Mounting (Panel)
Enclosure (Plastic)
Mounting (Pole Mount)
Mounting (Stack)
Mounting (Wall)
Mounting (Rack Mount)
Mounting (DIN-rail)
Weight
IP Rating
Dimensions (W x H x D)
Enclosure (Metal)

1.1kg
1.1kg

IP30
IP30

74 x 152 x 105 mm
74 x 152 x 105 mm

Yes
Metal

MTBF

Method
Time

Telcordia(Relax), GB
Telcordia(Relax), GB

858,835 hours
858,835 hours

PoE Information

Support PoE
PoE Output
PoE Budget
PoE Port Number

Power

Redundant Dual Inputs
Power Input (Battery)
Power Input (PoE)
Power Input (AC)
Power Operating Current
Power Connector Type
Power Input (DC)
Power Consumption

–
12 ~ 48 VDC

0.25A @ 48Vdc (system)
0.25A @ 48Vdc (system)

6-pin removable screw terminal ((power & relay)
6-pin removable screw terminal ((power & relay)

12 ~ 48 VDC
12 ~ 48 VDC

12.1W (system)
12.1W (system)

Protection

Reverse Polarity
Overload Current

Present
–

Switch Properties

Jumbo Frame
Switch Fabric Speed
Packet Buffer Size
MAC Table Size

9,216 bytes
9,216 bytes

9.6Gbps
9.6Gbps

4.1M bit
4.1M bit

Warranty

Warranty Period

5 years
5 years
