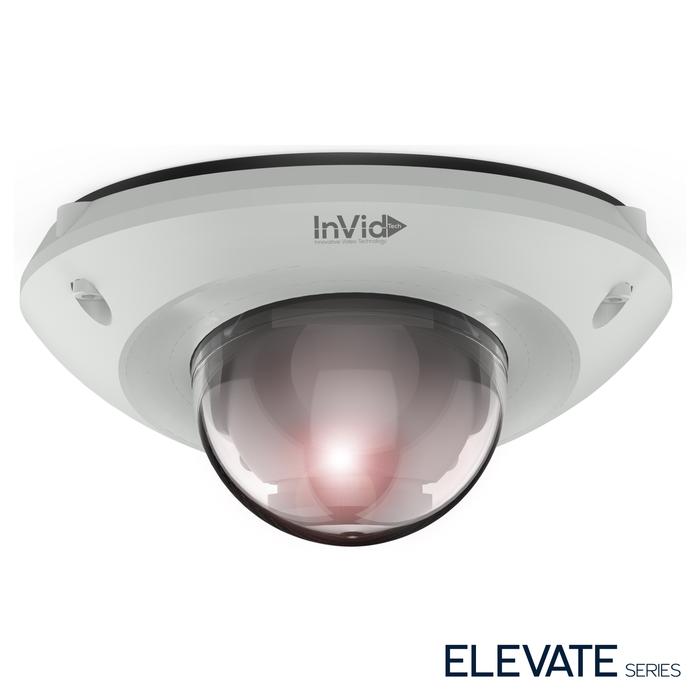

Camera Canada Invidtech ELEVI-P5LIR: 5 Megapixel IP Plug & Play, Fixed Lens

5 Megapixel IP Plug & Play, Outdoor Low Profile,32’ IR Range, WDR, Built-in Mic, SD Card Slot, PoE/DC12V

Mô tả
Sản phẩm liên quan

5 Megapixel IP Plug & Play, Outdoor Low Profile,32’ IR Range, WDR, Built-in Mic, SD Card Slot, PoE/DC12V

Features

5 Megapixel Resolution
Fixed Lens
True Day/Night with IR Range up to 32’
True WDR 120dB
H.265/H.265+/H.264/H.264+
Smart Analytics
TF Card Local Storage: Up to 128GB
Built-in Mic
IP66 Weather Resistant
IK10 Vandal Resistant
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps
Free CMS
Free MAC client

Model	ELEVI-P5LIR
Sensor+DSP	IMX335+Hi3516EV300
Sensor	1/2.8″ Progressive scan CMOS Sensor
Min. Illumination	0.01lux(Color), 0lux(IR on)
Lens	2.8 mm@F1.85: horizontal FOV: 99°, vertical FOV:56°
Lens Mount	M12
IR	14milX18pcs SMD LED
IR Range	98ft (30m)
Smart IR	Support
Shutter Time	Auto/Manual, 1/3~1/10000s
Day/Night	IR cut filter with auto switch
Wide Dynamic Range	WDR&DWDR (13fps)
Digital noise reduction	2D/3D DNR
Compression Standard
Video Compression	H.264/H.265
H.264 Codec profile	Base/Main/High profile
H.265 Codec profile	Main profile
Max. Image Resolution	5MP(2592 × 1944)(default 15fps)
Frame Rate	“50Hz:15fps 5MP (2592 × 1944) 15fps 4MP (2560 × 1440),15fps 4MP(2304 × 1728) 25fps 3MP( 2048 × 1536),25fps 1080P(1920 × 1080) 25fps 960P (1280 × 960), 60Hz:15fps 5MP (2592 × 1944) 15fps 4MP (2560 × 1440),15fps 4MP(2304 × 1728) 30fps 3MP (2048 × 1536),30fps 1080P(1920 × 1080) 30fps 960P (1280 × 960),30fps 720P(1280 × 720)”
Sub Stream	“50Hz:25fps 720P(1280 × 720) 25fps D1(704 × 576),25fps CIF(352 × 288) 60Hz:30fps 720P(1280 × 720) 30fps D1(704 × 480),30fps CIF(352 × 240)”
Third Stream	N/A
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
BLC	Support
HLC	Support
ROI	Support
Defog	Support
Network
Network Storage	N/A
Protocols	“TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP,RTSP, RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour,IPV6″
Event	Motion Detection, Video Shelter
Smart Functions	Line Crossing,Area Intrusion,Region Entrance,Region Exiting,Fast Moving,Face Detection
System compatibility	Onvif (Profile S), CGI
Security	User authentication,IP address filtering,Video mask
Mobile Surveillance	iPhone, iPad,Android , CMS, WEB
Interface
Communication interface	1 RJ45 10M / 100M/ Ethernet Port
General
Operating Conditions	-22°F ~ 140°F ( -30°C ~ 60°C) Humidity 95% or less (non-condensing) “
Power Supply	DC12V ± 10%
POE Supply	PoE (802.3af)
Power Consumption	MAX. 8.5W
Weather Proof	IP66
Dimensions	2.65 x 2.26 x 5.98 inches (67.5X57.5X152mm)
Weight	0.80lb (365g)
