Camera IP EYENOR ENC-HBU5Z-50R-20 | Made in UK

MODEL

Model No.

ENC-HBU5Z-50R-20

Type

2MP Starlight IP H.265 Bullet Camera

Image Sensor

1/2.8″, 2Megapixel, Progressive scan CMOS

CAMERA

Lens

2.8 ~ [email protected], Autofocus and motorized zoom lens

Angle of View (H)

105° ~ 33°

Zoom/Focus

Zoom: 4X Optical / Focus: Auto/Manual

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.001Lux @ F1.4
BW: 0 Lux with IR

AGC

Auto/Manual

IR Range

Smart-IR, Up to 50M

White Light

Up to 10M

Day/Night

IR-Cut filter with auto switch (ICR)

S/N

>52dB

WDR

120dB

Defog

Digital Defog

 Max Resolution

 1920×1080

VIDEO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

 Video Streaming

 Triple

Corridor Mode

Supported

ROI

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

 Audio Compression

 G.711U/G.711A

 Two-way Audio

 Supported

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Suppression

Supported

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

BNC

Supported

GENERAL

Power Supply

DC 12V±25%, AC 24V±25%, PoE (IEEE 802.3at)

Power consumption: 13.7W

Operating Temperature

-40°C ~ +60°C, Humidity ≤ 95% RH (Non-condensing)

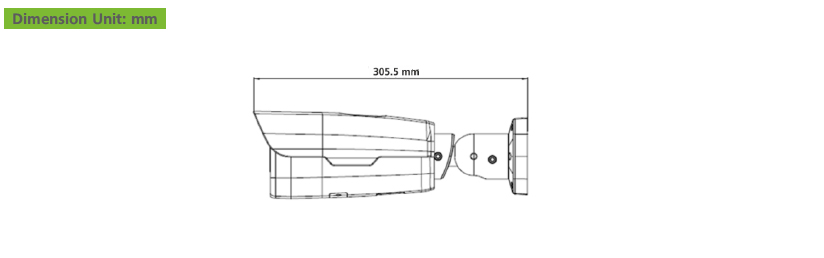

Dimensions

305.5 × 104.1 × 97 mm

Weight

1.65Kg

Storage

Micro SD up to 256 GB

ANR

Supported

Ingress Protection

IP67

Reset Button

Supported
