Camera IP EYENOR ENV-HVD5F-30R-20 | Made in UK

Model

Model No.

ENV-HVD5F-30R-20

ENV-HVD7F-30R-20

Type

2MP IR IP H.265 Vandal Proof Dome Camera

4MP IR IP H.265 Vandal Proof Dome Camera

Image Sensor

1/2.8″, 2 MP, Progressive scan CMOS

1/3″, 4.0 Megapixel, Progressive scan CMOS

CAMERA

Lens

 2.8mm(Optional 4mm)

Angle of View (H)

112.7°

104.4°

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.003Lux @ F2.0, 0Lux with IR

Colour: 0.03Lux @ F2.0, 0Lux with IR

AGC

Auto/Manual

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

>55dB

WDR

120dB

VIDEO & AUDIO

Max. Resolution

1920 × 1080

2592 × 1520

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Main Stream:4MP (2592×1520): Max. 20 fps,
4MP (2560×1440): Max. 25 fps?3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps

Video Streaming

Triple

 HLC/BLC

 Supported

Corridor Mode

Supported

ROI

Up to 8 areas

OSD

Up to 8 areas

Privacy Mask

 Up to 8 areas

 Motion Detection

 Up to 4 areas

Audio Compression

G.711U/G.711A

Two-way audio

Supported

 Audio I/O

 1/1

 Alarm I/O

 1/1

SMART

Behavior Detection

Intrusion, crossing line, motion detection

Intelligent Identification

Face Detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People counting

NETWORK

Protocols

IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

 Network

 RJ45 10M/100M Base-TX Ethernet

GENERAL

Power

12V DC or PoE(IEEE802.3 af)

Power Conumption: Max 4W

12V DC or PoE(IEEE802.3 af)

Power Conumption: Max 5W

Edge Storage

Micro SD Card, up to 256GB, ANR

Working Environment

-35°C ~ +60°C, Humidity ≤ 95% RH(Non-condensing)

Ingress Protection

IP67

Vandal Resistant

IK10

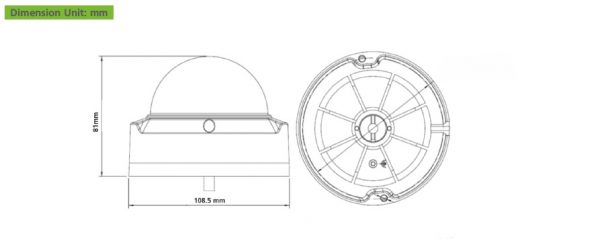

Dimensions

108.5×108.5×81 mm

Weight

0.45Kg
