Camera NVR EYENOR ENR-01004-N-4PK | Made in UK

MODEL

Model No.

Type

Video Input

4ch

INPUT & OUT VIDEO/AUDIO

Incoming Bandwidth

40Mbps

Outgoing Bandwidth

64Mbps

HDMI/VGA Output

HDMI : 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

VGA :1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

4-Ch

DECODING

Compression

H.265/H.264

Live view/ Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x [email protected], 2 x [email protected], 4 x [email protected]

DISK HARD

SATA

1 SATA interface

Capacity

Up to 8TB for each disk

NETWORK

Network Interface

1 RJ-45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel?1 x USB2.0, Front panel?1 x USB2.0

POE Port

4# 10/100 PoE Port

Support

IEEE 802.3af, IEEE 802.3at (Max. 54W)

GENERAL

Alarm In / Out

4/1

Power Supply

DC 48V

Power Consumption

≤ 5 W

Operating Temperature

-10°C ~ 55°C

Operating Humidity

10% – 90% RH

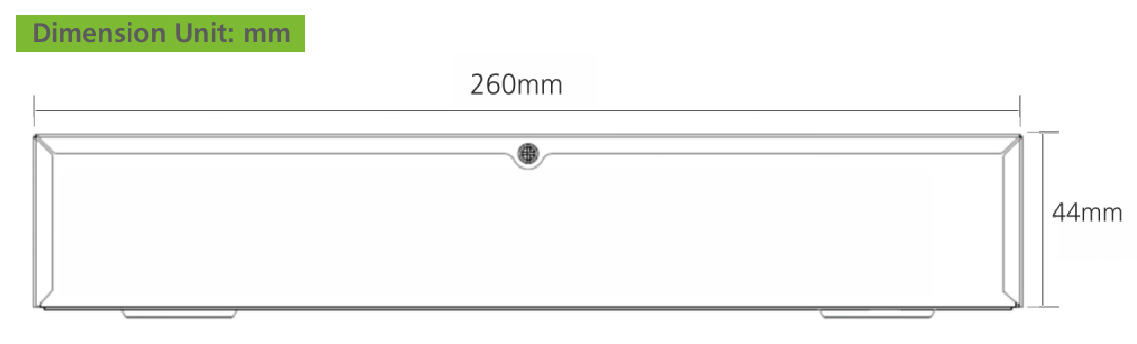

Dimension

44×240×260mm

Weight

1.1 Kg
