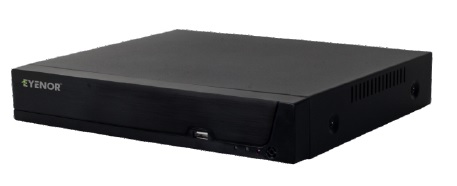

Đầu ghi NVR EYENOR ENR-01004-N | Made in UK

MODEL

Model No.

ENR-01004-N

Type

4Ch Embedded Network Video Recorder

SYSTEM

Main Processor

Single-core embedded processor

Operating System

Embedded Linux

IP Camera Input

4 Channel

Interface

2 HD-OUT, 1 VGA

DISPLAY

Resolution

HD-OUT: 1920×1080, 1440×900,1280×1024 VGA: 1920×1080, 1440×900,1280×1024

Decoding Capacity

1ch 5MP/4ch D1 @30fps

Multi-screen Display

1/4

Video Compression

H.265+, H.265, H.264

RECORDING

Resolution

5MP/4MP/3MP/1080P/720P/D1

Record Rate

40Mbps

Bit Rate

128Kbps ~ 8Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper

Record Interval

Post-record: 30 ~ 60 sec

VIDEO DETECTION & ALARM

Trigger Events

Recording, Push message, Pop up message

Video Detection

Motion Detection, Video Loss, Camera Tamper

Sync Playback

1ch 5MP/4ch D1

Search Mode

Time/Date, Alarm,Picture grid, Event

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat,Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device

INTERFACE

Protocols

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP

Compatibility

ONVIF (Profile S/G), SDK

Network

1 RJ-45 port (10M/100Mbps)

USB

2 x 2.0 USB Host

HARD DISK

 SATA

1 SATA Interface

Capacity

Up to 8TB for each HDD

GENERAL

Power

DC12V/2A

Power Consumption

< 5W (without HDD)

Working Environment

-0 °C ~ 50 °C, Humidity: 9% RH

Dimensions

245×215×43mm

Weight

0.62Kg
