Đầu ghi NVR EYENOR ENR-01004-N-FPK | Made in UK

MODEL

Model No.

ENR-01004-N-FPK

Type

4Ch Embedded Network Video Recorder

SYSTEM

Main Processor

Dual-core embedded processor

Operating System

Embedded Linux

IP Camera Input

4 Channel

Audio I/O

1/1, RCA

Two way Talk

Supported

Interface

HDMI, 1 VGA

DISPLAY

Resolution

HDMI: 3840×2160,1920×1080,1440×900, 1280×1024 VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity

1ch 8MP/4ch [email protected]

Multi-screen Display

1/4

Video Compression

H.265+, H.265, H.264+, H.264

RECORDING

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc

Record Rate

40Mbps

Bit Rate

100Kbps ~ 6Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in

Record Interval

Post-record: 30 ~ 60 sec

VIDEO DETECTION & ALARM

Trigger Events

Recording, Buzzer, Push message, Pop up message

Video Detection

Motion Detection, Video Loss, Camera Tamper

Alarm In/Out

4/1

Sync Playback

4/1

Search Mode

Time/Date, Alarm,Picture grid, Event

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat,Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device

INTERFACE

Protocols

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP

Compatibility

ONVIF (Profile S/G)

Network

1 RJ-45 port (10M/100Mbps)

USB

2 x 2.0 USB Host

PoE Interface

4ch 100Mbps, IEEE 802.3af

PoE Max Power

40W

HARD DISK

 SATA

1 SATA Interface

Capacity

Up to 8TB for each HDD

GENERAL

Power

DC12V/3A

Power Consumption

< 5W (without HDD)

Working Environment

-10 °C ~ 50 °C, Humidity:< 90% RH

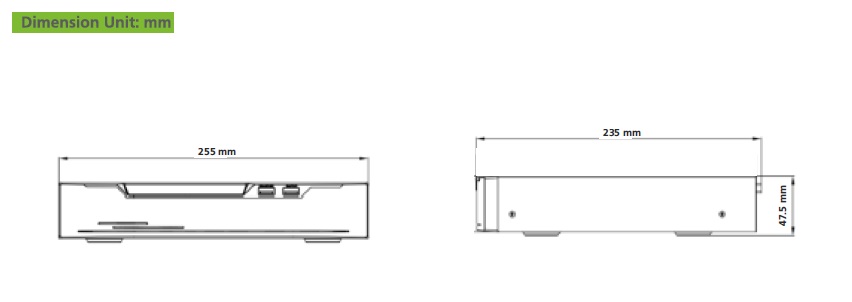

Dimensions

255×235×47.5mm

Weight

0.9Kg
