Overview

Linux OS, dual-BIOS, redundant power, two-server hot standby ONVIF Support, 1+1 Fail over Support, Browser/Server, Client/Server and mobile clients (both iOS and Android), Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 384TB storage, recording backup, IPSAN storage, Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted, Live view, playback, sequence, video wall, E-map, two-way audio, and alarm plan, Support of receiving VCA alarms, configuring alarm-linkage operations, and displaying people counting statistics in reports, Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP configuration, load balancing, secure password and IP address filtering

Specification

MODEL	Model No.	ENR-16000-N-ISK
MODEL	Type	Network Video Recording System
VIDEO	Cameras per Server	Eyenor Device: 1000 devices or 2000 channels ONVIF Device: 200 devices
	Device management	IPC, NVR, encoder, decoder(standard/expanded), network keyboard
	Online users	300
	Roles per user	16
	Incoming Bandwidth	512Mbps
	Out going Bandwidth	384Mbps
	Video compression	Ultra265, H.265, H.264
DECODING	Decoding	4×[email protected], 16×[email protected], 36×[email protected], 64×D1
	Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF/QCIF
	Display on video wall	HDMI(×2) and VGA(×1) output; HDMI output supports 4K resolution
	Audio compression	G.711
	Decoding card	Max 2 cards supported; models: HDMI4-C and HDMI6-C
	HDMI4-C decoding card	4-ch HDMI outputs, with decoding of 4[email protected] or 8[email protected] or 32[email protected] or 64[email protected]
	HDMI6-C decoding card	6-ch HDMI outputs, with decoding of 6[email protected] or 12[email protected] or 48[email protected] or 96[email protected]
	HDD	Hot-swappable HDDs Support 16HDDs (3.5″, up to 8TB for each )
VIDEO	RAID mode	RAID1, RAID5,RAID6,RAID10,RAID50,RAID60
	Disk enclosure	Max 2 disk enclosures supported; models: ENR-08000-N-E and ENR-16000-N-E
	ENR-08000-N-E disk enclosure	8xSATA interfaces, up to 8TB storage per interface
	ENR-16000-N-E disk enclosure	16xSATA interfaces, up to 8TB storage per interface
	Play control	1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 17 / 25 / 32 / 36 / 64 window display Corridor format Up to 3 auxiliary monitors
	Playback	Play NVR recordings Up to 24 channels for multiple clients; synchronous playback up to 16 channels for single client
SYSTEM	Main Processor	Intel® CPU
	Memory	4GB DDR3L
	Power supply	100-240 VAC (with power on/off switch) Dual-power redundancy
	Network	4×10M/100M/1000M Base-T adaptive Ethernet interfaces 2×1000M SFP optical interfaces
INTERFACE	USB	4×USB3.0
	HDMI	2×HDMI
	VGA	1×VGA
	Serial	1×RS-232 (RJ45), 1×RS-485 (RJ45)
	Alarm input/output	24×alarm inputs, 8×alarm outputs
	Power output	12 V DC
	Audio alarm	Buzzer
	Expansion	1xeSATA interface, 2xminiSAS interfaces, 2xdecoding cards (ENR-00004-M, ENR-00006-M)
OTHERS	Power consumption	Ω 50W (not including HDD), Ω 165W (including HDD)
	Operating temperature	-10°C to 55°C
	Operating humidity	10% to 90% (non condensing)
	Weight	Ω 10.0 Kg

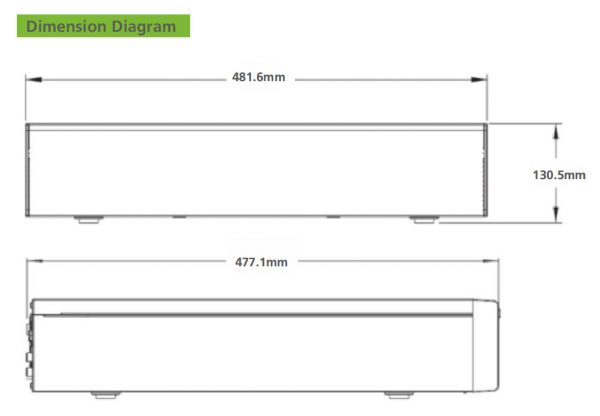

	Dimensions	477.1×481.6×130.5mm

Ordering Information

Part Number	Description	Standard Quantity
ENR-16000-N-ISK	Network Video Recording System with 16 Hot Swap HDD Bays Supports 4xRJ45 1000M, 2xSFP 1000M, 2-Mini SAS Expansion for NVR Expansion/Storage expansion, Supports Redundant power supply, failover, RAID, 2 no’s Decoding cards(optional), Rackmount 3U support	1

Downloads

Datasheet

PDF

159.85KB

DOWNLOAD
