Đầu ghi NVR EYENOR ENR-16000-J | Made in UK

Server Storage Enclosure (JBOD)

Mã: ENR-16000-J Danh mục: Đầu ghi EYENOR UK

Mô tả
Sản phẩm liên quan

Overview

EYENOR JBOD developed upon the Norden, support RAID 0, 1, 5, 6, 10, 50, 60, with each disk max 6TB, up to total 96 HDD capacity. This standard rack-mounted RAID, via external Min-SAS port of 6.0Gbps band width can realize each HDD 3.0Gbps flow.

Specification

Model	Model No.	ENR-16000-J	ENR-24000-J
	Type	Server Storage Enclosure (JBOD)
GENERAL	Appearance	3U 19″	4U 19″
	Drive Support	16	24
	External Interface	SAS
	Cascading	Yes
	Transmission Rate	6.0 Gbps
	RAID	RAID 0,1,5,6,10, 50, 60
	Host Channel	PCI-Express x 4/8
	Protocol	PCI-Express, SES Over In-band SAS
	Management	WEB Browser, In-band SES Enclosure Management, CLI Via RJ11 Serial Port
	Storage	RAID Expansion, Remove,Roaming, HDD Backup, Online Medium Detection, Rapid Initialization
	System power supply	Three Redundant 250W (up to Four), Swappable N+1 Design
	Power Supply	Voltage: 100-240V AC, Current: 4A (max)
	Working Environment	Temperature: 5°C to 40°C Humidity: 10% to 80%

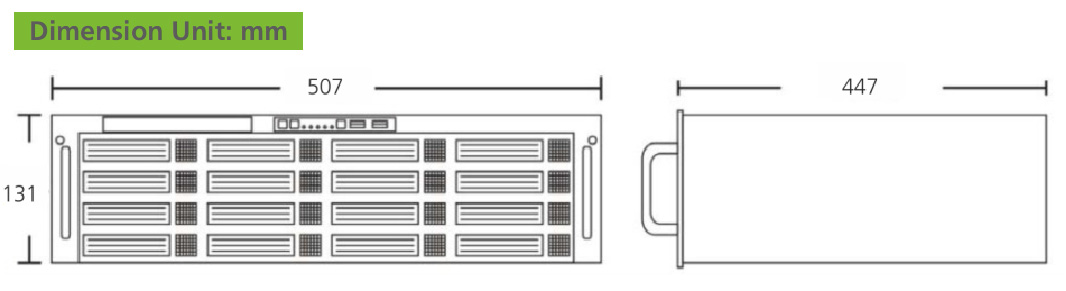

	Dimension (mm)	507 x 447 x 131	675 x 447 x 178
	Weight(Kg)	15 Kg (Without HDD)	20.9 Kg (Without HDD)

Ordering Information

Part Number	Description	Standard Quantity
ENR-16000-J	3U 16 HDD Bays (without HDD) JBOD Device Supports RAID Level 0,1,5,6,10,50,60 and Rack mountable	1
ENR-24000-J	4U 24 HDD Bays (without HDD) JBOD Device Supports RAID Level 0,1,5,6,10,50,60 and Rack mountable	1

Downloads

Datasheet

PDF

195.47KB

DOWNLOAD
