Overview

EYENOR Video Storage Servers are developed upon the latest Norden, Based on TCP / IP standard Ethernet, support the front-end SD, HD, analog cameras massive hybrid access system, forming a strong set of digital video monitor storage solution. The product can provide reliable stability for large and medium-sized video surveillance system, suitable for the pursuit of high performance, high scalability and pay attention to saving the cost of the user. Widely used in safe city, intelligent transportation, public security department , forest fire prevention and other industries. WINDOWS operating system. Support RAID0, 1, 5, 6, 10, 50, 60. Support SATA2.0/SATA3.0, Max 6TB. JBOD to Increase Storage up to 288TB. Support disks, fans, power supplies and other components, support Serial Interfaces (2xRs-232C)

Specification

Model	Model No.	ENR-16000-S	ENR-24000-S
	Type	Video Storage Server
GENERAL	Number of Drives	16 Drives (3.5″)	24 Drives (3.5″)
	Drive Type	SATA (6Gb/s¹ or 3Gb/s), NCQ, TCQ, Hot Swappable
	# of Controllers	Single
	System Processor	Intel® Xeon® E3 Quad-core 8-thread
	System Memory	4GB Default (Max 16GB)
	I/O Interface	2 x Gigabit Ethernet (Optional 4 x Gigabit)
	Max # of HDDs Supported	Up to 64 drives through JBOD expansion	Up to 96 drives through JBOD expansion
INTERFACES	# of USB Ports	4x USB	6x USB
	PCI Express Ports	1x 16-lane Gen 2.0 PCIe, 3x 8-lane Gen 2.0 PCIe	2x Gen 3.0 PCIe, 1x Gen 2.0 PCIe
	Graphics	D-sub VGA and HDMI	1x VGA D-sub, 1x DVI, 1x HDMI, 1x Display Port
	Serial Interfaces	2x RS-232C (D-sub 9-pin)
	Audio & Microphone	2x 3.5mm Audio Jack	3x 3.5mm Audio Jack
	Sensor In	Compatible w/ DC3.3V to 24V, photo coupler input x 8	NA
	Alarm Out	Max. DC 24V/1A, mechanical relay output x 8	NA
RAID	RAID Levels	0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 Any combination can exist at the same time
	Hot Spares	Multiple global or dedicated hot-spare drives with revertible option
	Max. LUNs per System/Array	256/32
SOFTWARE	Preloaded OS (64-bit)	Windows Embedded Standard 7 Runtime (Windows Server 2012 R2 Standard or Linux (Optional))
	Management Tools	Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
	Appliance Mode	Surveillance Optimization @ Arrays in Normal and Degrade
	Event Notification	Email, SNMP, Buzzer, LEDs
SYSTEM	AC Input	100 ~ 240 VAC, 60 ~ 50Hz
	Current (Maximum)	4A (100V); 2A (240V)
	Power Supply	Three redundant 250W, Energy-efficient 80PLUS Certified, 90-264V full-ranging w/PFC, Hot swappable N+1 Design
	Fan	Hot swappable design
	Temperature	5° ~ 40°C (-40° ~ 60°C non-operational)

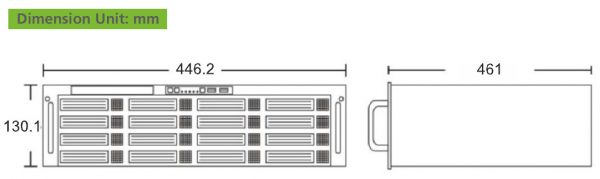

	Dimensions (H x W x D)	130.1 x 446.2 x 461 mm	174 x 447 x 630 mm
	Weight	15.9kg w/o drives, 27.9kg w/drives	20.9kg w/o drives, 32.9kg w/drives
	Form Factor	3U, 19″ Rackmount	4U, 19″ Rackmount

Ordering Information

Part Number	Description	Standard Quantity
ENR-16000-S	3U 16 HDD Bays (without HDD) Network attached storage Server with 2#Gigabit Ports, 4GB Memory, Supports RAID Level 0,1,5,6,10,50,60 and JBOD, Rack mountable with Redundant Power Supply and Scalability up to 384 TB through JBOD	1
ENR-24000-S	4U 24 HDD Bays (without HDD) JBOD Device Supports RAID Level 0,1,5,6,10,50,60 and Rack mountable	1

Downloads

Datasheet

PDF

213.51KB

DOWNLOAD
