Camera IP EYENOR ENV-HBU7F-50R-20 | Made in UK

Model No.

ENV-HBU7F-50R-20

Type

4MP IR IP H.265 Bullet Camera

Image Sensor

1/3″, Progressive scan, 4.0 Megapixel, CMOS

CAMERA

Lens

4.0mm (Optional 6mm)

Angle of View (H)

78.9° (49.9°)

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.02 Lux (F1.8), 0 Lux with IR on

AGC

 Auto/Manual

IR Range

Up to 50M

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>55dB

Defog

Digital Defog

Noise Reduction

2D/3D DNR

WDR

120dB

VIDEO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Corridor Mode

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People counting

NETWORK

Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP,
UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF(Profile S/G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max 9W

Operating Temperature

-35°C ~ 60°C, Humidity: ≤ 95%RH (Non-condensing)

Storage

Micro SD, Up to 256 GB

Ingress Protection

IP67

Vandal Resistant

IK10

Network Storage

ANR

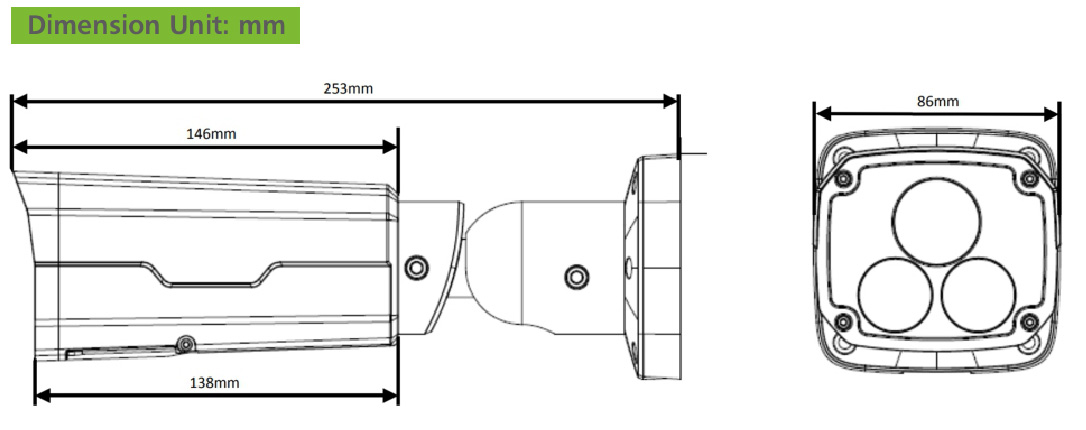

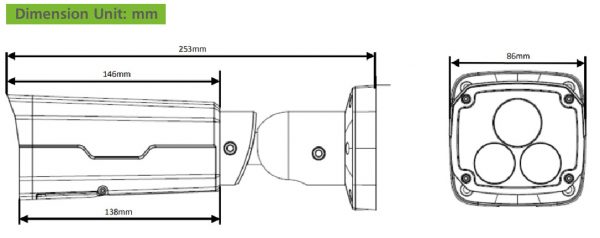

Dimensions

253.4x86x71.7mm

Weight

1.0Kg
