Camera IP EYENOR ENV-HCB7F-30R-14 | Made in UK

Model

Model No.

ENV-HCB7F-30R-14

Type

4MP IR IP Bullet Camera

CAMERA

Image sensor

1/3″, 4.0 Megapixel, progressive scan, CMOS

Lens

4.0mm (Optional 6.0mm)

Angle of View(H)

78.9° (49.9° for 6.0mm)

Shutter

Auto/Manual, 1/~1/100000 s

Min. Illumination

Colour: 0.03Lux @F2.0, BW: 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 30M IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

WDR

120dB

Noise Reduction

2D/3D

VIDEO

Max. Resolution

2592 x 1520

Video Compression

H.265+/H.265/H.264/MJPEG

Frame Rate

 Main Stream: 4MP (2592*1520), Max 20fps; 4MP   (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
 Sub Stream: 2MP (1920*1080), Max 30fps; Third  Stream: D1 (720*576), Max 30fps

Video Streaming

Triple

9:16 Corridor Mode

Supported

ROI

Up to 8 areas

HLC/BLC

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

 Audio Compression

 G.711U/G.711A

 Built-in Mic

 Supported

SMART

Behavior Detection

Intrusion, crossing line, motion detection

Intelligent Identification

Face detection, Defocus, Scene Change,Missing Object, Abandoned Object

Statistical Analysis

People counting

NETWORK

Protocol

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF(Profile S/G), API

GENERAL

Power Supply

DC 12V±25%, PoE (IEEE 802.3af),

Power Consumption

Max. 6W

Working Environment

-35°C ~ +60°C, Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

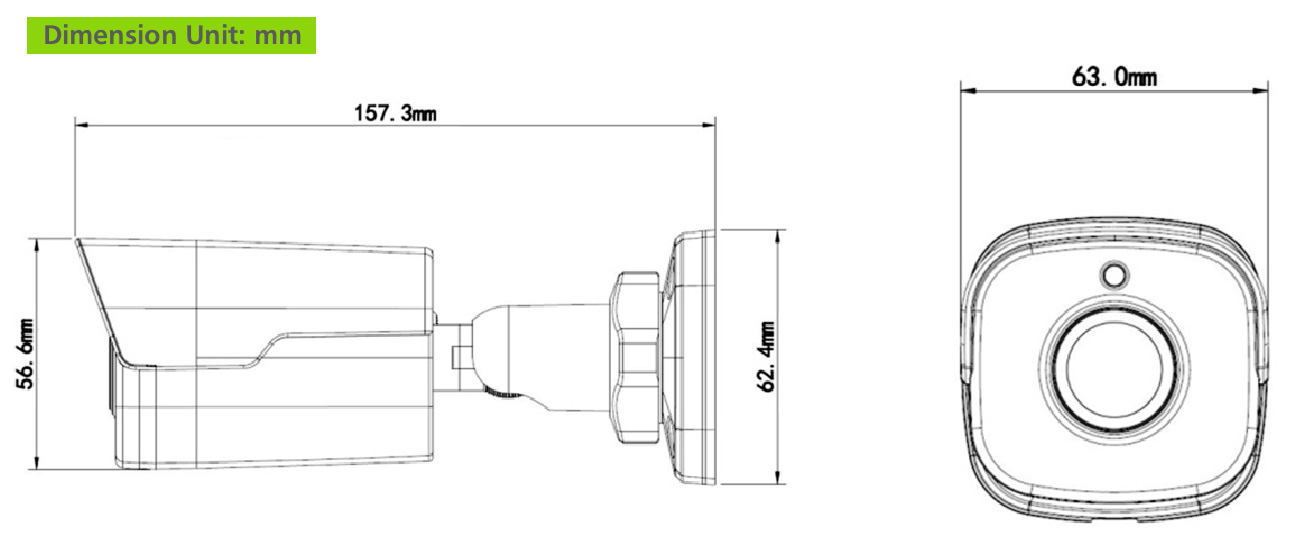

Dimensions

157.3×62.4×63mm

Weight

0.45kg
