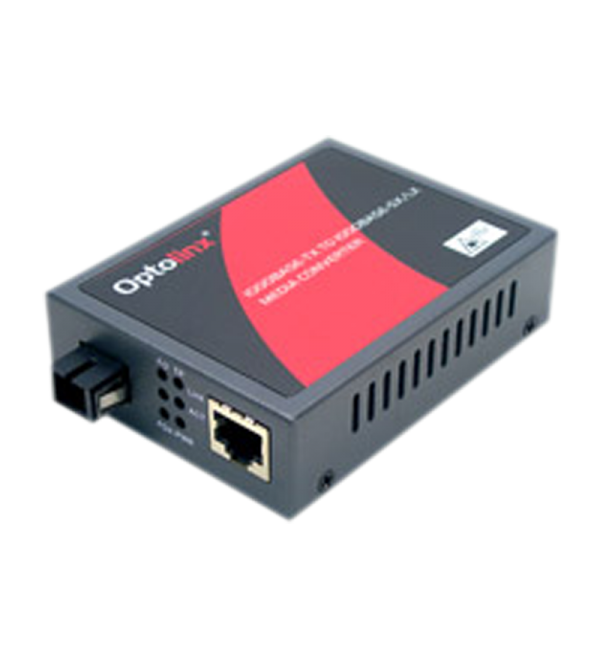

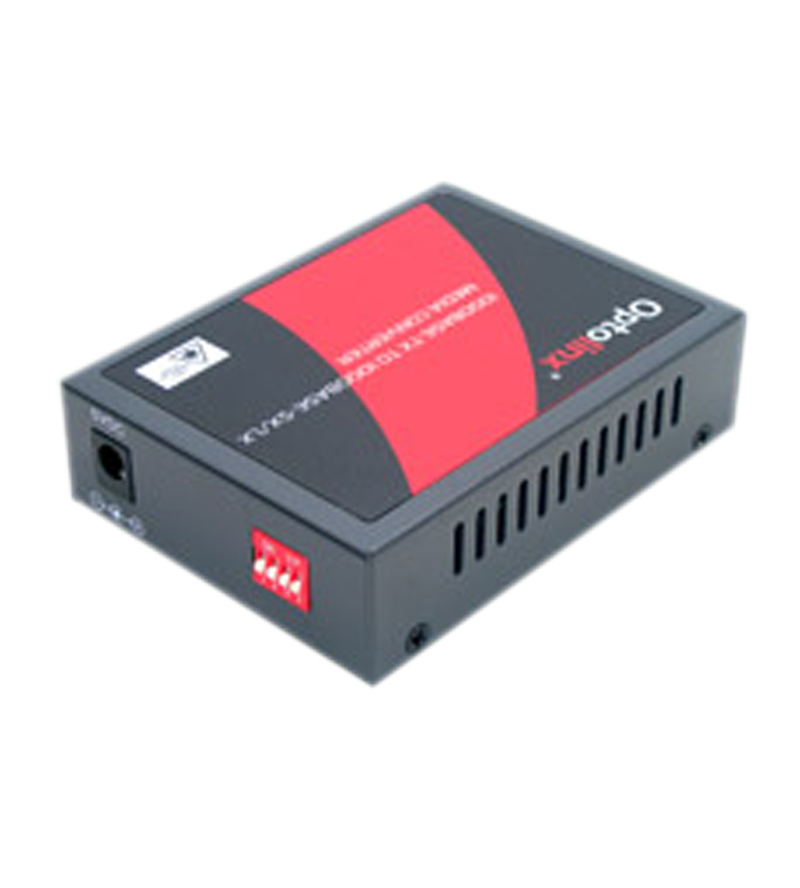

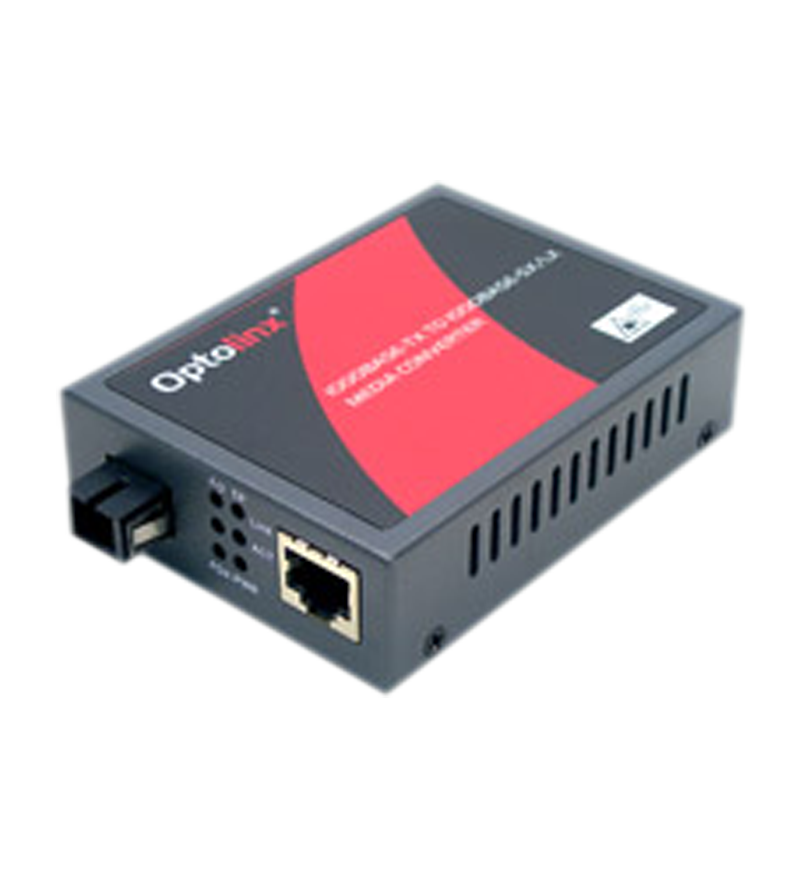

Antaira FCU-3002A-WA-S6

Antaira Technologies FCU-3002A-WA-S6 is a compact single-mode gigibit fiber to 10/100/1000 Ethernet WDM media converter. The FCU-3002A-WA-S6 is housed in a industrial metal case and conforms to the FCC emission standards. The FCU-3002A-WA-S6 features a standard

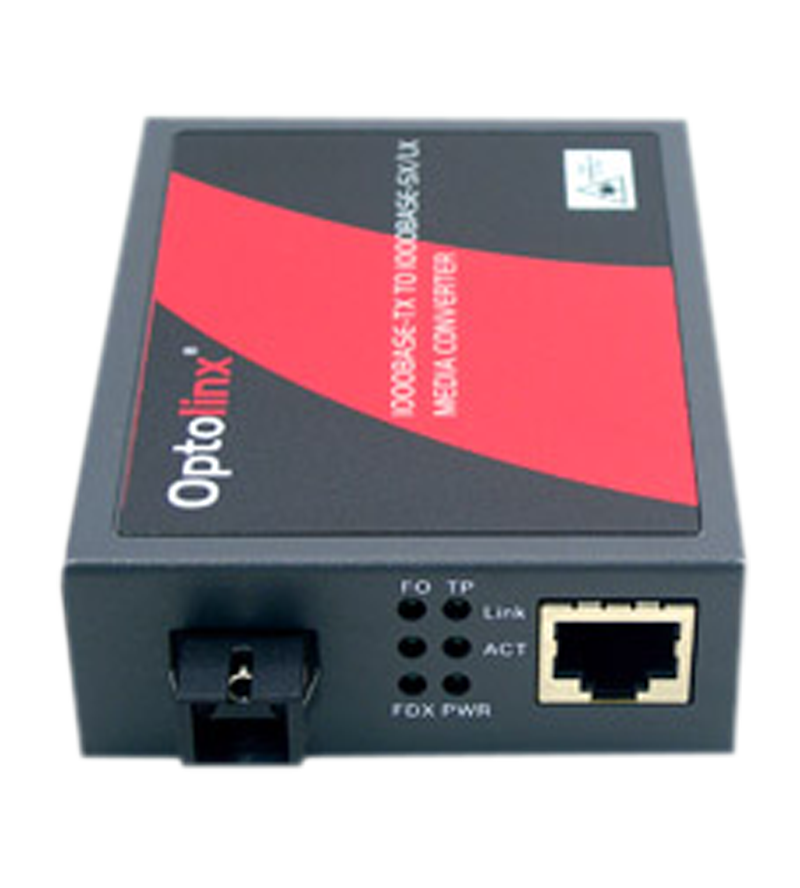

SC single strand fiber connector as well as the copper STP-RJ45 Ethernet connector. The FCU-3002A-WA-S6 is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The FCU-3002A-WA-S6 features LEDs that provide indicators for Power,
TP Link/ACT and Fiber Link/ACT. The FCU-3002A-WA-S6 is a industrial WDM media converter that operates on single mode, single strand fiber TX:1490nm RX:1550nm capable of transmission up to 60 kilometers. WDM media converters are a great solution to double the
bandwidth of a existing fiber network.

• Complies with IEEE 802.3/u/ab 10/100/1000BaseT
• Complies with IEEE 802.3z 1000BaseX
• Supports Jumbo Frame (9K bytes)
• Store-and-Forward Switching Mechanism
• Auto-Crossover for MDI/MDIX in TP Port
• Auto-Negotiation in TP Port
• Supports Flow Control
• Supports Link Alarm
• Supports Auto & Force Mode Configuration
• 5-Year Warranty
