Antaira IMC-100A-ST-S3-T
EOT: -40° ~ 80°C

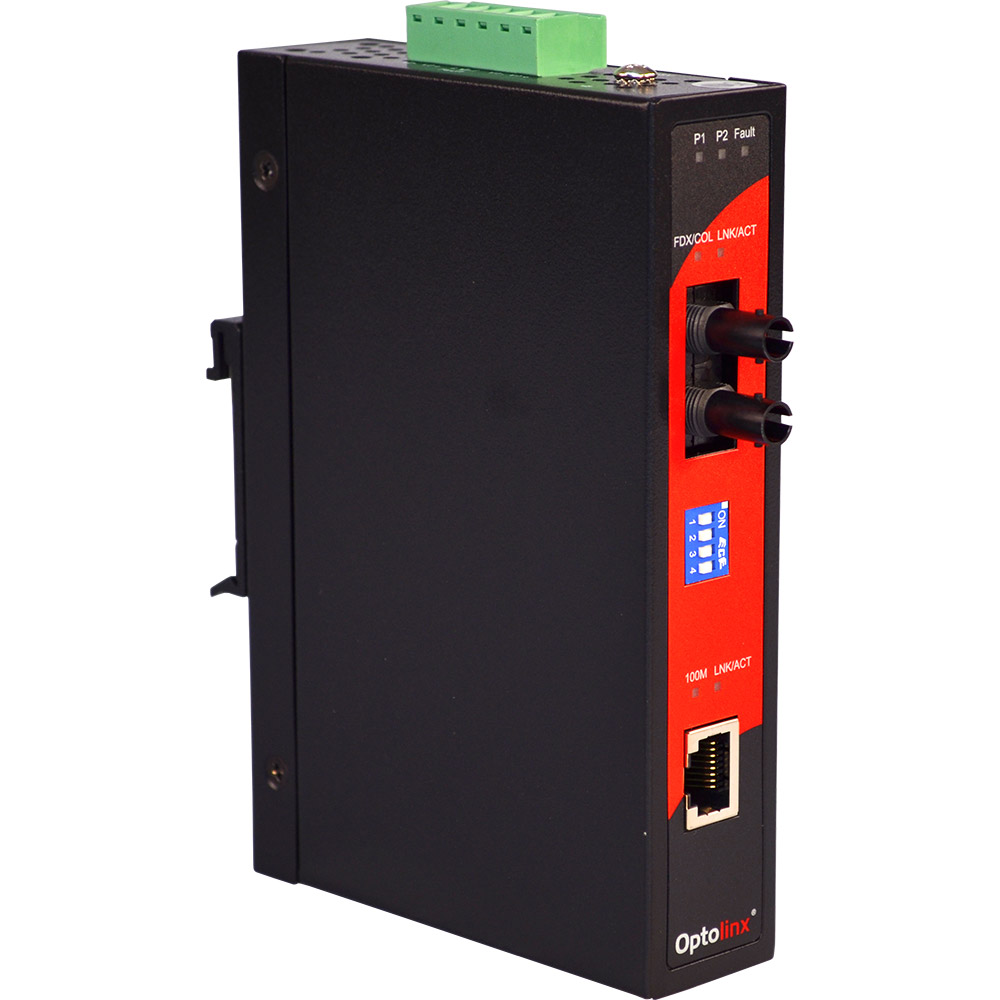

The IMC-100A-ST-S3 is an Industrial grade 10/100BaseTX to 100BaseFX Media Converter. DC power input, DIN Rail mounting, and alarm contacts are all standard features. The IMC-100A-ST-S3 allows users to extend their Industrial Ethernet network up to 30km while
maintaining industrial reliability.
- UTP to Fiber Media Converter
- RJ-45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
- Wide-range Redundant Power Design
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/FX Fast Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 1 port |
| 10/100 BASE-T(X) | 10/100BaseT: 1 × RJ45 Port |
| Fiber Interface | |
| Fiber Port Count | 1 port |
| 100 BASE-FX Fiber | 100BaseFX: 1 × ST Port |
| Wavelength | 1310nm |
| Transmission Distance | 30 km |
| Link Loss Forward | Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP) |
| Other Interface | |
| DIP Switch | DIP Switch 1: Enables Port/Power Alarm (ON), Disables Port/Power Alarm (OFF) DIP Switch 2: Enables LLF and LFP (ON), Disables LLF and LFP (OFF) DIP Switch 3: 100BaseFX Half-Mode (ON), 100BaseFX Full-Mode (OFF) DIP Switch 4: 100BaseTX Full-Duplex Mode (ON), Au~ Negotiation (OFF) |
| LED Indicator | Power1, Power2(Green), Fault (Red) Fiber: Link/Activity(Green), Half/Full-Duplex(Yellow) Etherent : Link/Activity(Green), 100M (Yellow) |
| Performance | |
| Jumbo Frame | 1,600 bytes |
| Memory Buffer | 128 kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 2.74 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 80° C (-40° to 176° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 90% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 30 × 140 × 95 mm (1.18 × 5.51 × 3.74 inches) |
| Weight | Unit: 0.95 Ib Shipping: 1.4 Ibs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A EN 61000-6-4 Class A EN 61000-3-2 EN 61000-3-3 |
| EMS | CE EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 EN61000-4-12 |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
