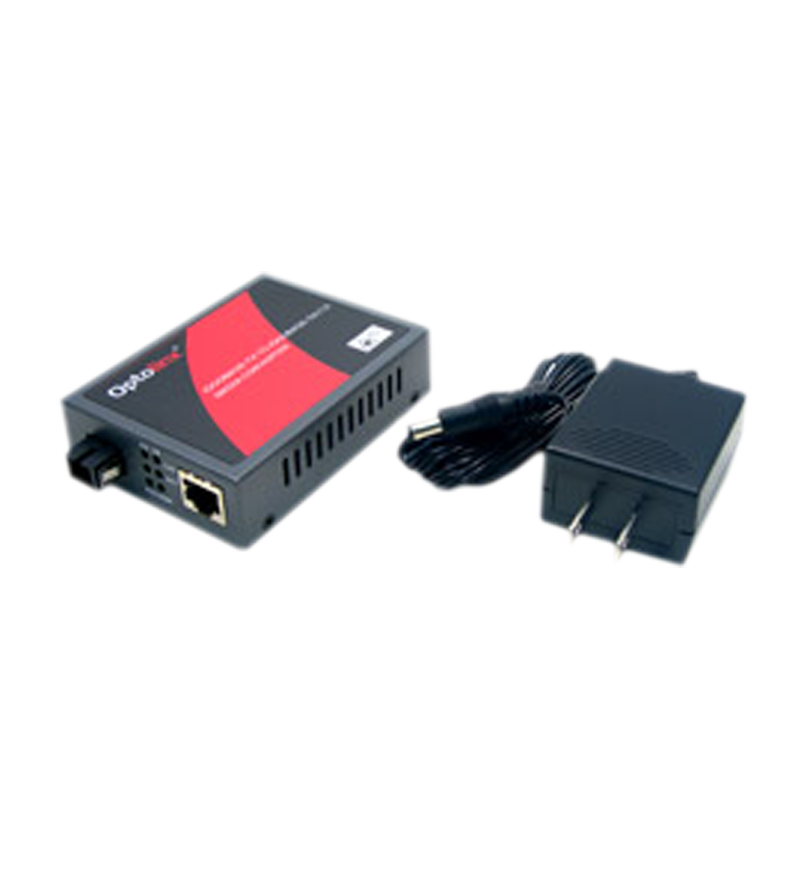

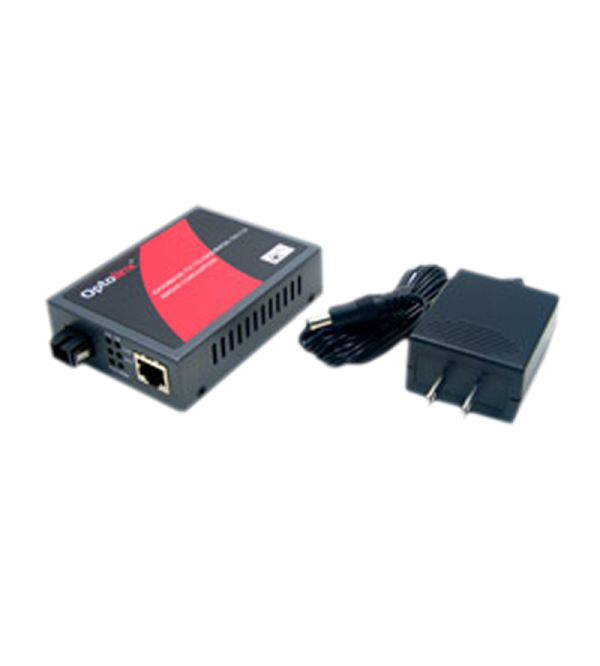

Antaira FCU-3002A-WB-M

Antaira Technologies FCU-3002A-WB-M is a compact multi-mode gigibit fiber to 10/100/1000 Ethernet WDM media converter. The FCU-3002A-WB-M is housed in a industrial metal case and conforms to the FCC emission standards. The FCU-3002A-WB-M features a standard
SC single strand fiber connector as well as the copper STP-RJ45 Ethernet connector. The FCU-3002A-WB-M is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The FCU-3002A-WB-M features LEDs that provide indicators for Power,

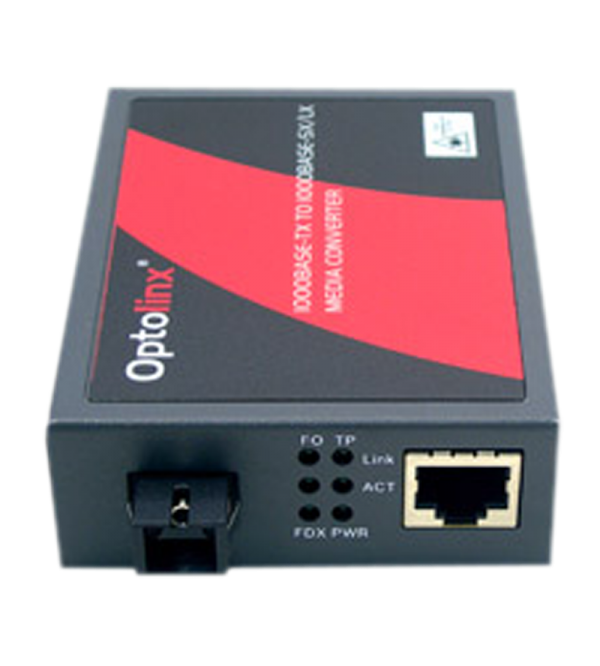

TP Link/ACT and Fiber Link/ACT. The FCU-3002A-WB-M is a industrial WDM media converter that operates on multi mode, single strand fiber TX:1550nm RX:1310nm capable of transmission up to 550 meters. WDM media converters are a great solution to double the bandwidth
of a existing fiber network.

• Complies with IEEE 802.3/u/ab 10/100/1000BaseT
• Complies with IEEE 802.3z 1000BaseX
• Supports Jumbo Frame (9K bytes)
• Store-and-Forward Switching Mechanism
• Auto-Crossover for MDI/MDIX in TP Port
• Auto-Negotiation in TP Port
• Supports Flow Control
• Supports Link Alarm
• Supports Auto & Force Mode Configuration
• 5-Year Warranty
