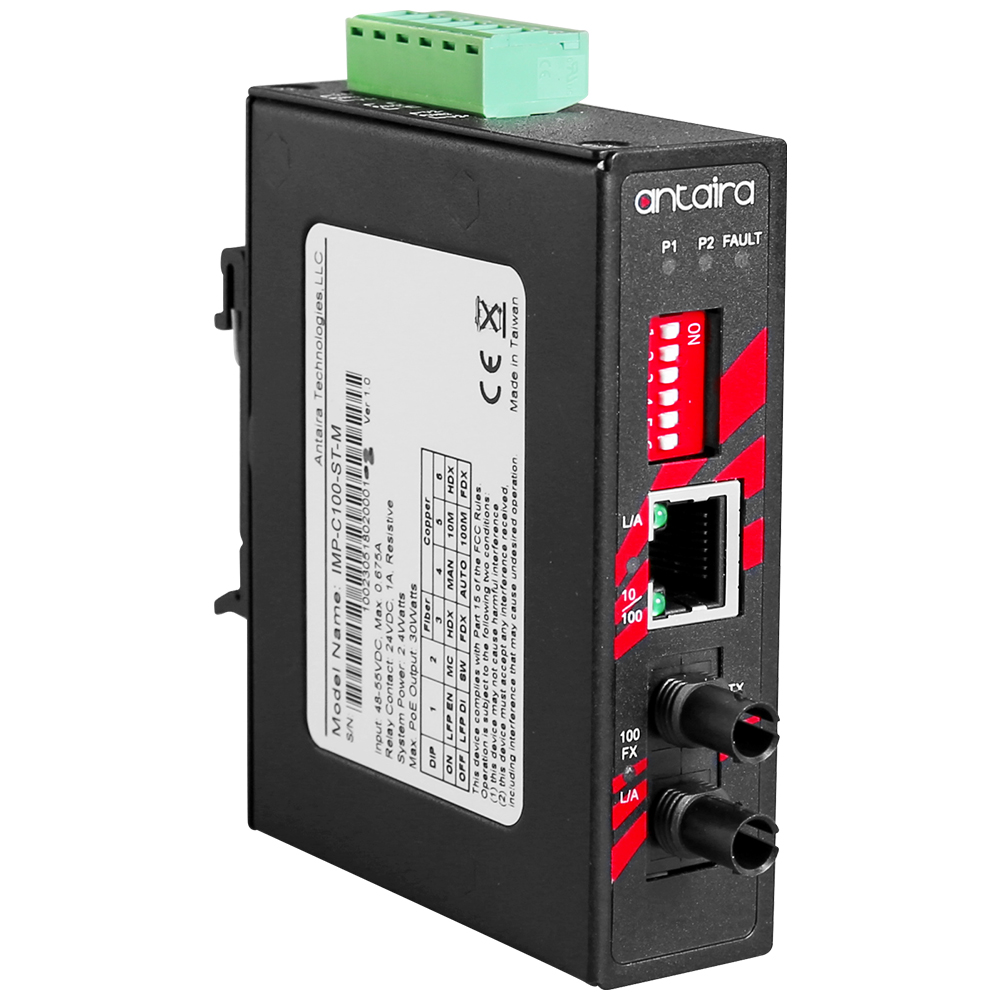

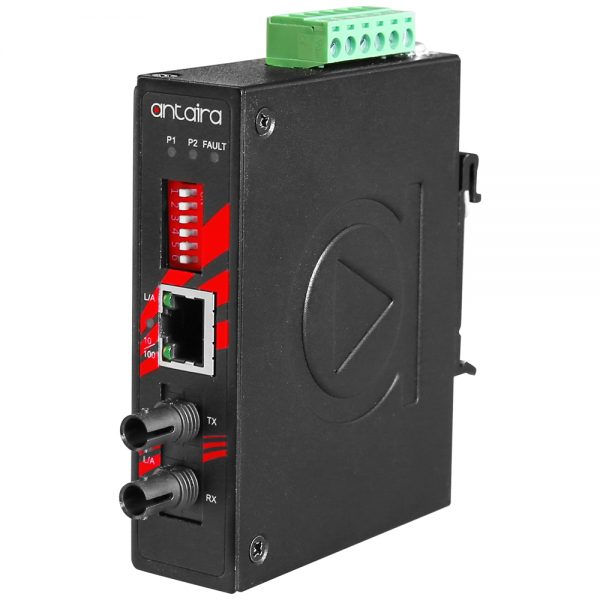

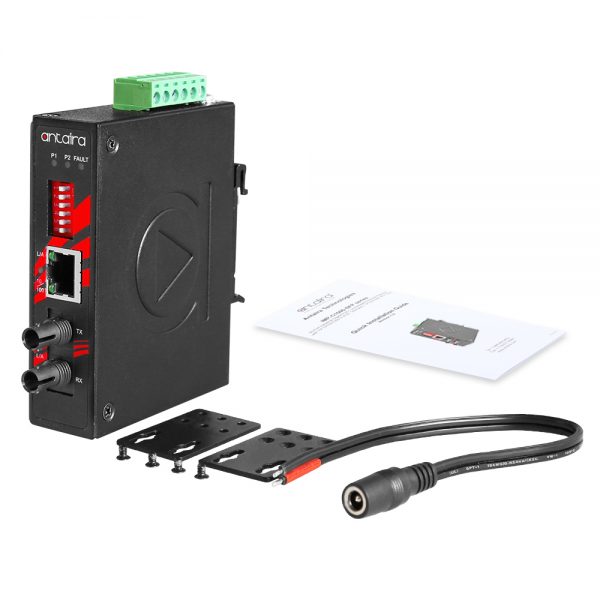

Antaira Technologies’ IMP-C100-ST-M is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE that can supply up to 30 watts, and a fixed fiber interface supporting ST connector.
The model supports Multi-Mode for applications with a variety of fiber distances and types. It is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space.
IMP-C100-ST-M has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. The model supports DIN-Rail as well as wall mountable orientations
and provides an operating temperature range model in STD: -10°C to 70°C.
- 1*10/100Tx Fast Ethernet with IEEE 802.3at Compliant PoE+
- 1*100Fx ST Connector (Multi-Mode)
- RJ45 Port Support Auto MDI / MDI-X Function
- Auto Negotiation Speed, Half / Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Fault Pass Through (LFP)
- Built-in Far End Fault (FEF)
- Wide-Range Redundant Power Design
- Redundant Power Input: 48~55VDC
- Power Polarity Reverse Protection
- Overload Current Protection

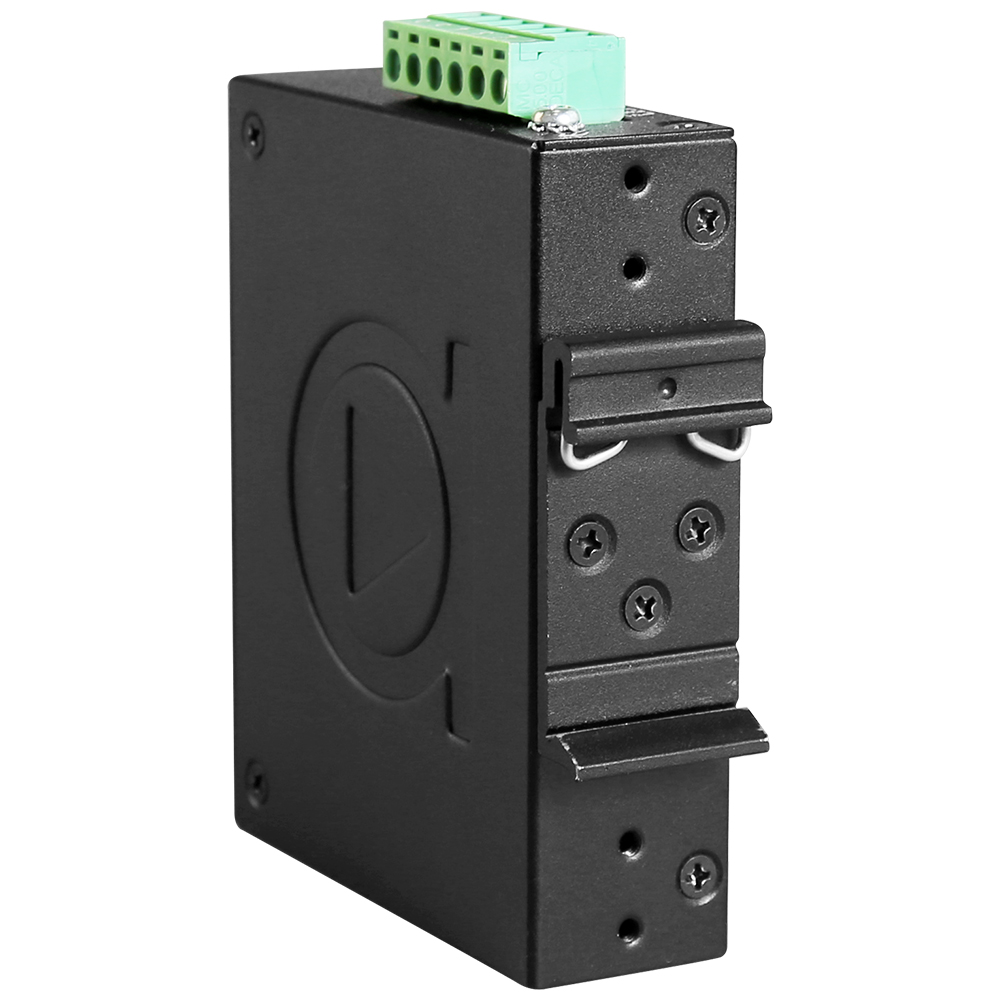

- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Technology | |
IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3af/at Power Over Ethernet |
Processing Type | Store and Forward |
Protocol | CSMA/CD |
Flow Control | IEEE 802.3x back pressure flow control |
Ethernet Interface | |
Ethernet Port Count | 1 port |
10/100 BASE-T(X) | 1 × RJ45 Port w/10/100T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
PoE Port | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
10G/5G/1GBase-T | 1 port (30W/port) |
Fiber Interface | |
Fiber Port Count | 1 port |
100 BASE-FX Fiber | 1 × 100Fx ST type connector Multi-mode: 50/125um or 62.5/125um |
Wavelength | 1310nm |
Transmission Distance | 2 km |
Link Loss Forward | LFP( Link Fault Pass Through) |
Other Interface | |
DIP Switch | DIP-Switch 1: LFP (Link Fault Pass) Enable/Disable DIP-Switch 2: Converter Mode/ Switch Mode DIP-Switch 3: Fiber Port Half-Duplex Mode/ Half-Duplex Mode DIP-Switch 4: Copper Port Auto-negotiation Disable/ Enable DIP-Switch 5: Copper Port 10Mbps/100Mbps DIP-Switch 6: Copper Port Half-Duplex Mode/ Half-Duplex Mode |
LED Indicator | Power 1, Power 2, Fault: On / Off Fiber Port: Link / Act Ethernet Port: Link / Act PoE: On-connected to PD devices |
Performance | |
Memory Buffer | 128 kbits |
Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
Power Requirements | |
Power Connection | Removable 6-contact terminal block |
Input Voltage | 48V–55V DC, Redundant Input |
Power Redundancy | Yes |
Relay Output | 24V DC, 1A resistive |
System Power Consumption | 2.4 Watts |
Max. PoE Power Budget | Max. 30 Watts |
Overload Current Protection | Present |
Reverse Polarity Protection | Present |
Environmental Limits | |
Operating Temperature | -10° to 70° C (14° to 158° F) |
Storage Temperature | -40° to 85° C (-40° to 185° F) |
Ambient Relative Humidity | 5% to 95% non-condensing |
Mechanical Characteristics | |
Housing | Metal, IP30 protection |
Mounting | DIN-Rail mount, Wall mount (Optional) |
Dimensions (W × H × D) | 26 × 95 × 75 mm |
Weight | Unit: 0.661 lb Shipping: 0.903 lb |
Regulatory Approvals | |
Certifications | FCC, CE |
EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6 |
Green | RoHS Compliant |
Warranty | 5 years |
