Full gigabit 10-port managed Ethernet switch

OVERVIEW

The ONV33010FM is a full gigabit L2+ managed Ethernet fiber switch independently developed by ONV. It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.

The ONV33010FM has the L2+ full network management, supports IPV4 management,static route full line rate forwarding, complete security protection mechanism, ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It satisfies high-density network application environment and is suitable for medium, large-scale scenes such as hotel, campus, park, shopping mall, scenic spot, hospital, bank to form an economical, efficient and reliable communication network.

FEATURE

Gigabit access, Gigabit SFP fiber port uplink

◇ All series support “Gigabit Ethernet port and Gigabit SFP port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, galvanized steel casing, The fan active cooling.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link .

Easy operation and maintenance management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

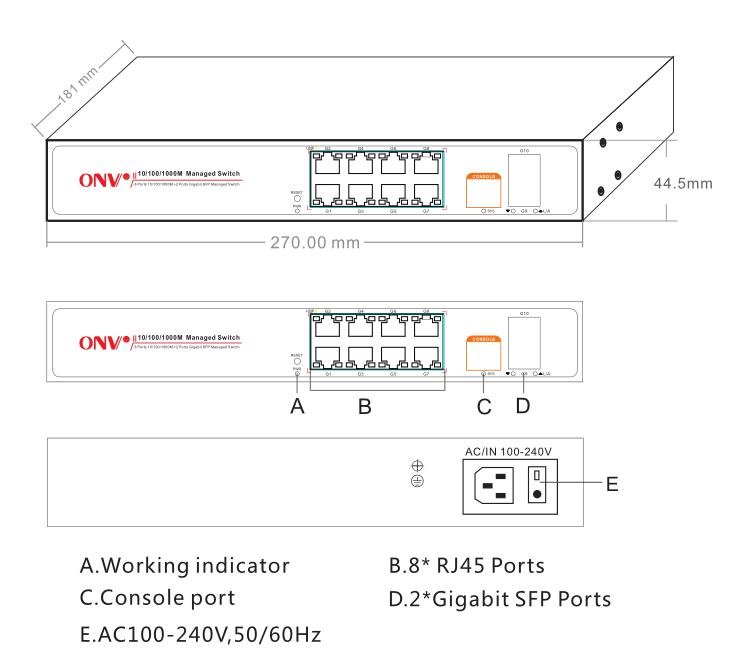

DIMENSION

ORDERING INFORMATION

PACKING LIST
