Gigabit uplink 51-port Ethernet fiber switch

OVERVIEW

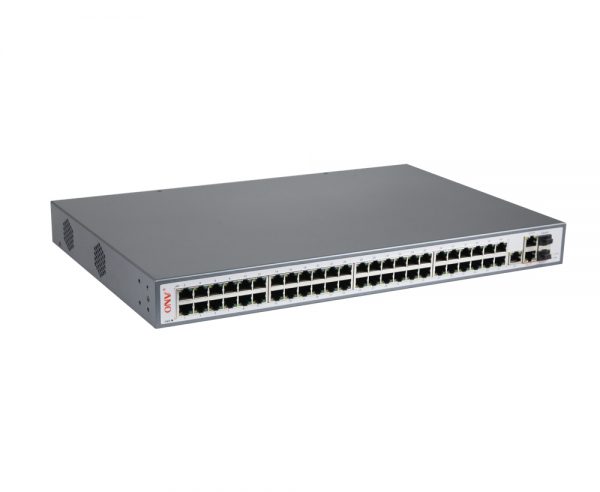

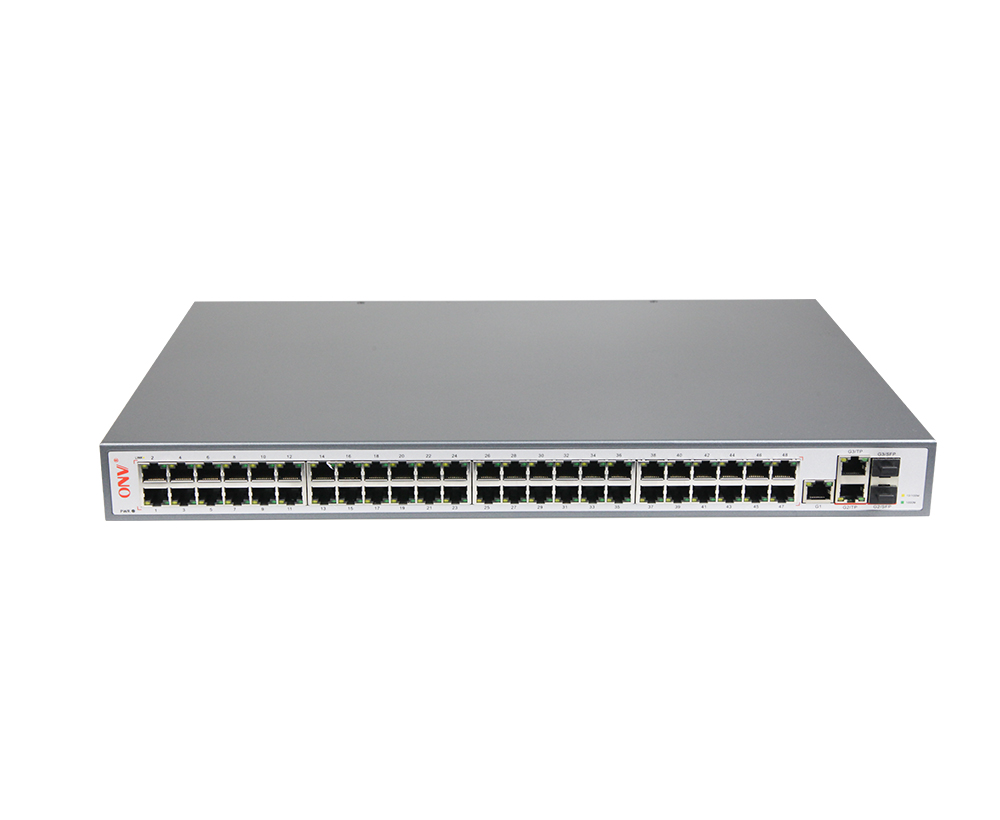

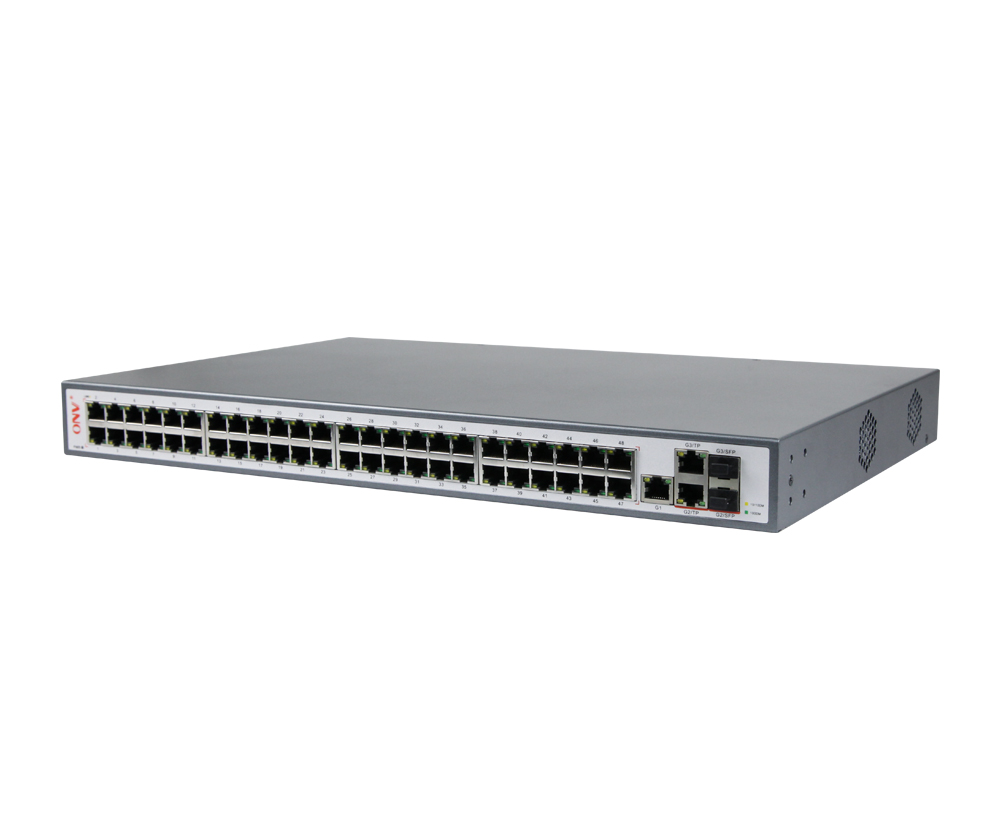

The ONV31048F series is a high-performance and easy-to-maintain gigabit uplink unmanaged Ethernet fiber switch. It is a switch for hotels, banks, campuses, attractions, supermarkets, factory dormitories, and small and medium business network environments. It has 48*10/100Base-TX RJ45 ports and 3*10/100/1000Base-X SFP ports and 2*1000M uplink SFP fiber slot ports (combo port), which can be easily connected to the network through the combo port. Expansion. Each port can support full line rate forwarding, 4M large-capacity cache (2 times the same kind of products), guarantee the timely transmission of large files and stable video stream, 7*24 hours stable and not dropped, effectively solve the video jam in the HD monitoring environment, Problems such as missing pictures. The ONV31048F is made of the high-strength all-steel casing. It is simple and stylish, exquisite and beautiful. It supports desktop and 1U/19-inch cabinet installation.

Plug and play, no setup, simple and convenient to use.

FEATURE

10/100M access, Gigabit (TP/SFP) combo port uplink

◇ All series support “10/100M Ethernet port and Gigabit combo port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Stable and reliable, easy to use

◇ CCC,CE, FCC, RoHS.

◇ Desktop and 1U / 19 inch cabinet installation.

◇ Plug and play, no setup, simple and convenient to use.

◇ Low power consumption, galvanized steel metal casing.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

DIMENSION

ORDERING INFORMATION

PACKING LIST
