Full gigabit 16-port L2+ managed industrial Ethernet switch

OVERVIEW

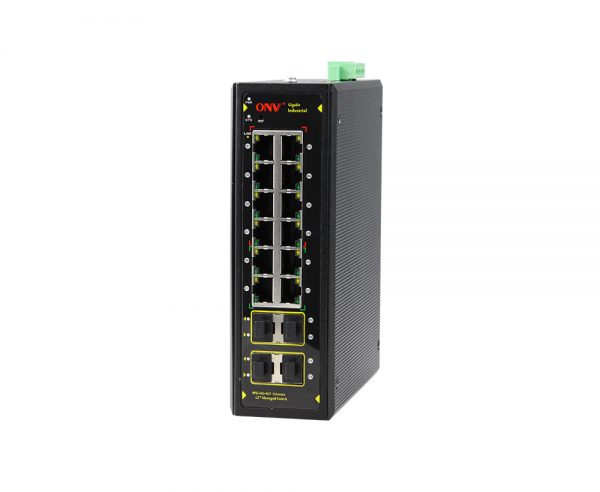

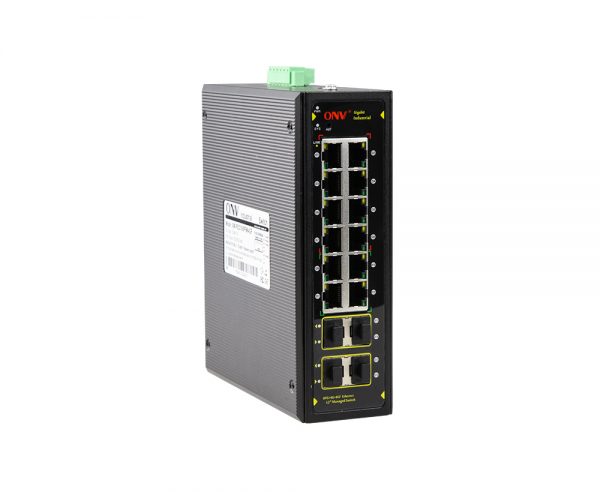

The ONV-IPS33168FM-4GF is a full gigabit managed industrial Ethernet switch independently developed by ONV. It has 12*10/100/1000M RJ45 ports and 4*100/1000M SFP slot ports. it can support L2+ full network management function, IPV4/IPV6 management, rich network management features, and complete network security policy configuration, it is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy construction.

The ONV-IPS33168FM-4GF can support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) industrial fast ring network protocol. When the one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. It has high reliability, high security, high manageability, ensuring reliable transmission of critical data, support for remote management, and can be used for cluster management with ONV-NMS network management platform. No blind spot network management. ONV-IPS33168FM-4GF industrial grade series products fully comply with industrial product design and materials. The shell is made of aluminum alloy to enhance heat dissipation performance and has excellent industrial field environment adaptability (including mechanical stability, climatic environment adaptability, electromagnetic environment adaptation). Sexuality, protection level up to IP40, support for dual redundant power supply, low power consumption fanless cooling technology, MTBF mean time between failures of up to 35 years, long 5 years warranty.

FEATURE

Gigabit access, SFP port uplink

◇ All series supports Ethernet port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, no fan , aluminum casing.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, SYS,Link,L/A .

Easy operation and maintenance management

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

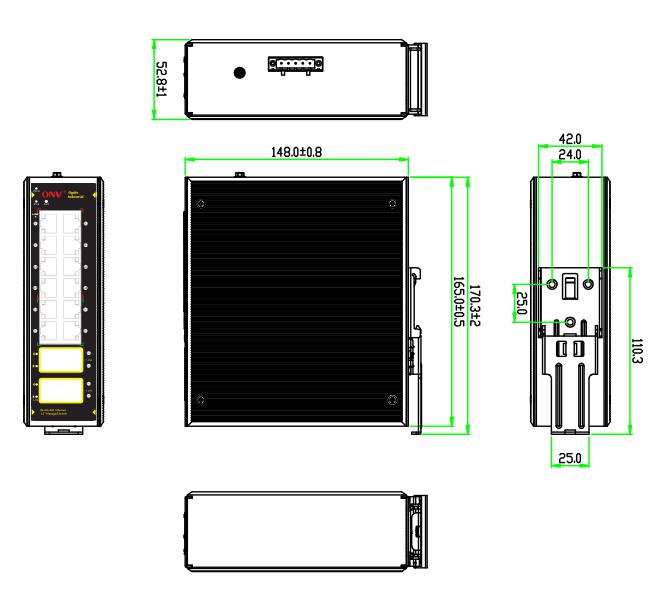

 DIMENSION

ORDERING INFORMATION

 PACKING LIST
