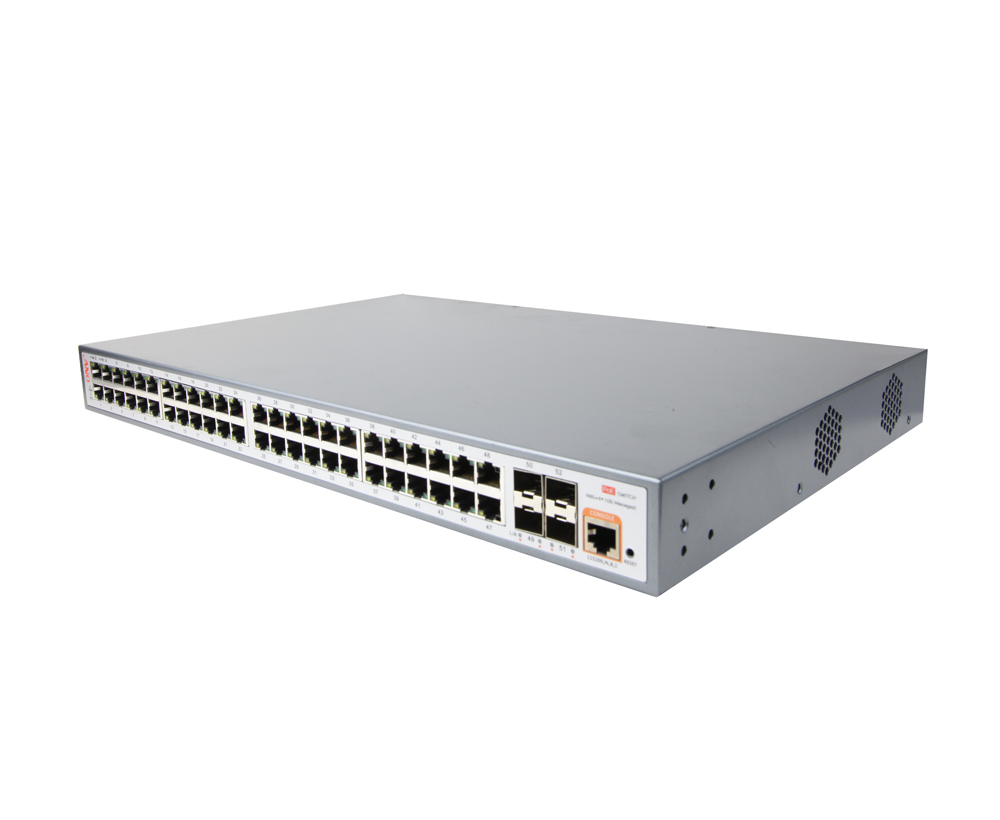

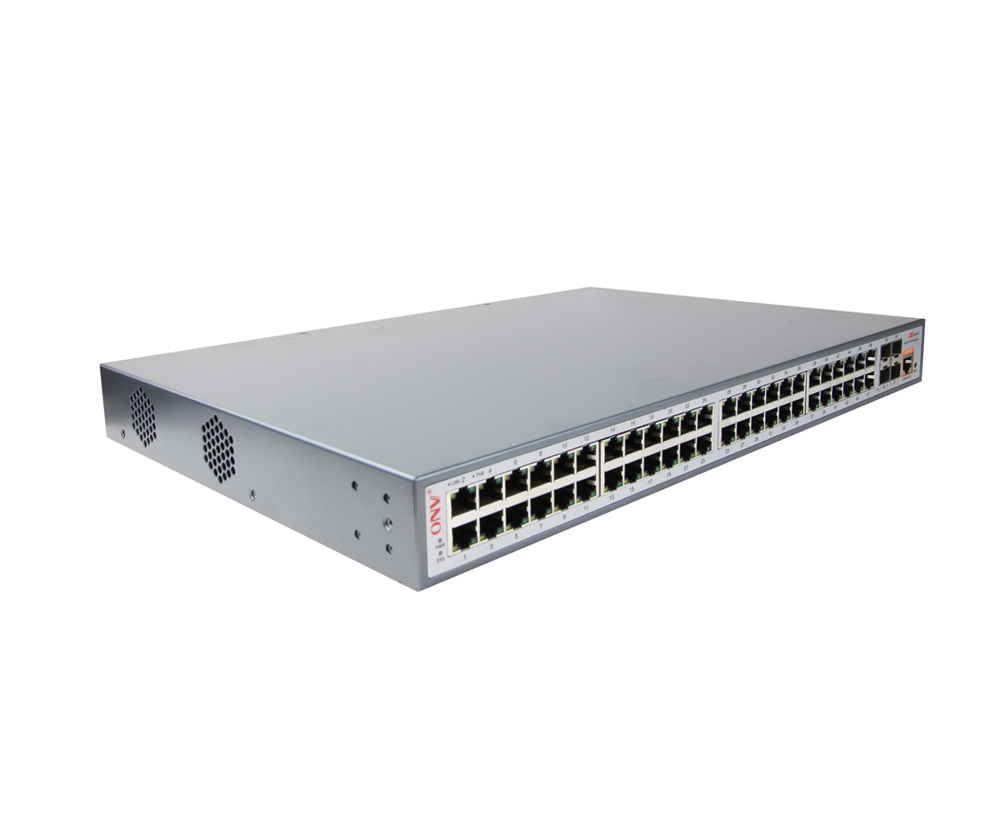

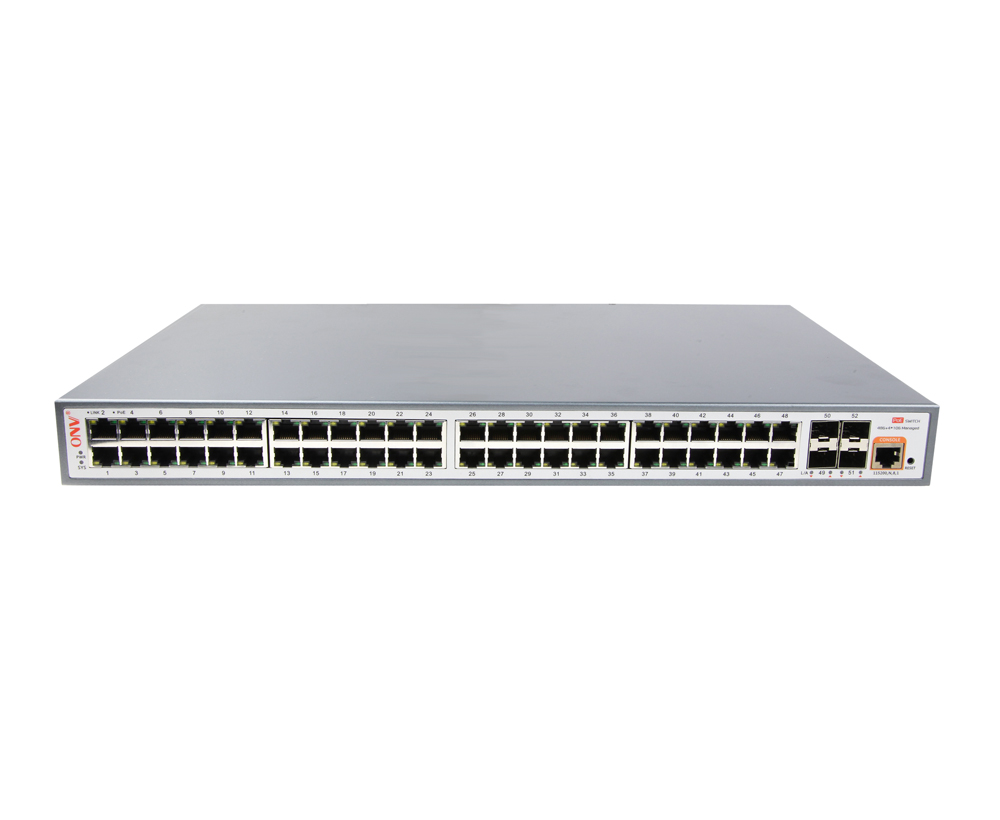

Full gigabit 52-port L2+ managed PoE switch

OVERVIEW

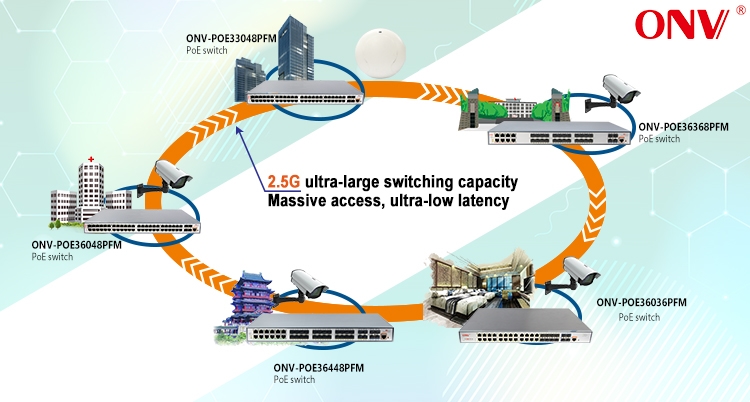

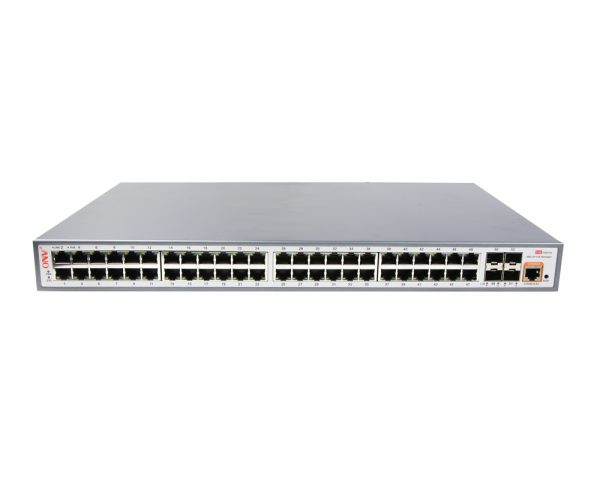

The ONV-POE33048PFM series is a full gigabit managed PoE switch independently developed by ONV. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports . Port 1-48 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 600W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom, etc. through network cable, to meet the network environment that needs high-density PoE power supply.It is suitable for hotels, campuses, parks, shopping malls, scenic spots, hospitals, factory dormitory and small and medium-sized enterprise.

The ONV-POE33048PFM has L2+full Web management function, supports IPV4/IPV6 management, static route full line rate forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web management mode.

FEATURE

Gigabit wire speed access, SFP port uplink

◇ All series supports Gigabit Ethernet port and gigabit SFP uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

◇ 48*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

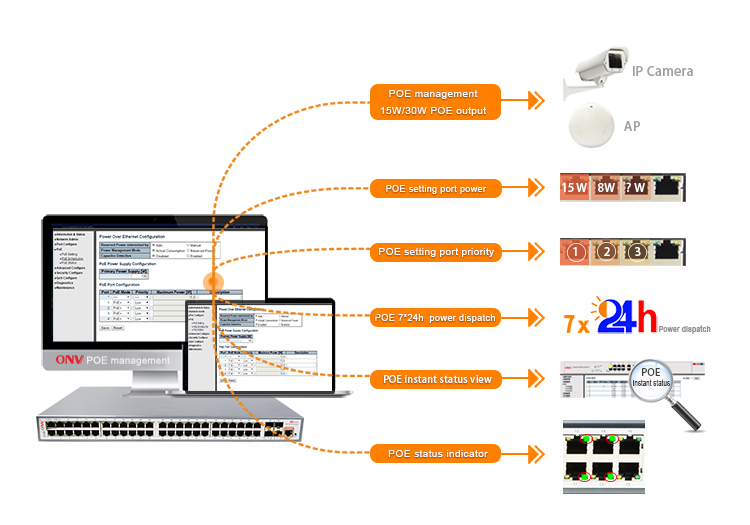

◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

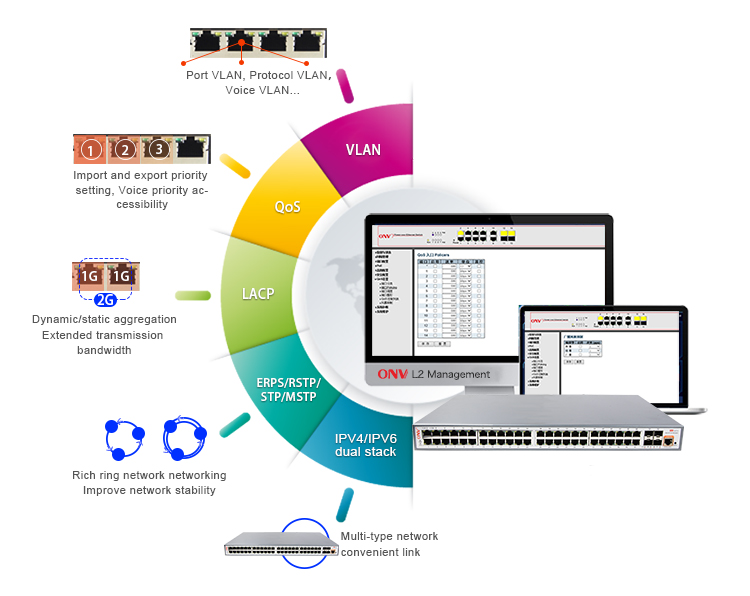

Strong business processing capability

◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

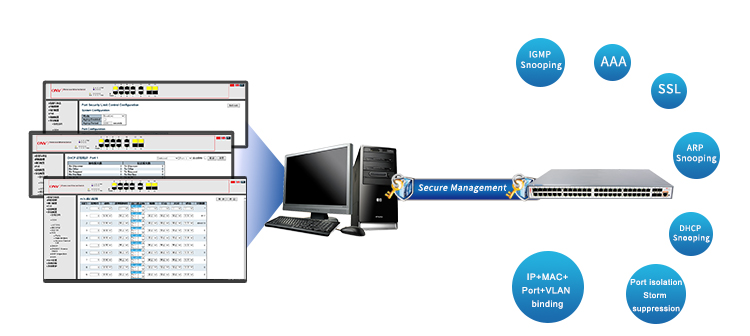

Security

◇ 802.1X authentication.

◇ Port isolation,Storm control.

◇ IP-MAC-VLAN-Port binding.

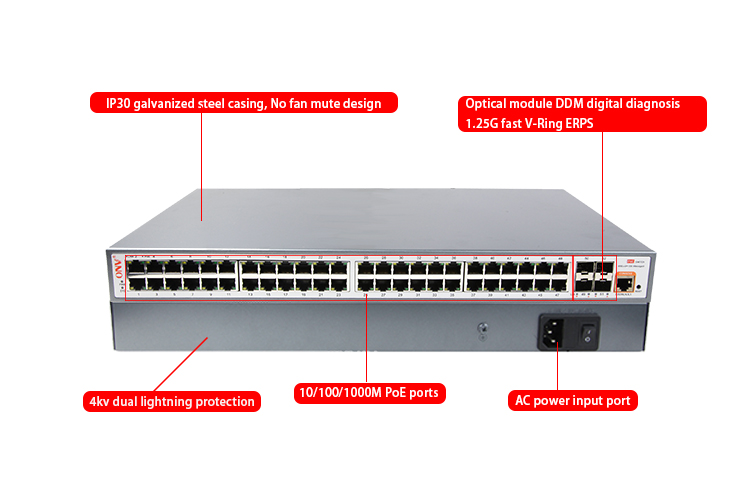

Stable and reliable

◇ Low power consumption, galvanized steel casing, The Fan active cooling.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

Easy operation and maintenance management

◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

◇ HTTPS, SSLV3, and SSHV1/V2.

◇ RMON, system log, LLDP, and port traffic statistics.

◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.

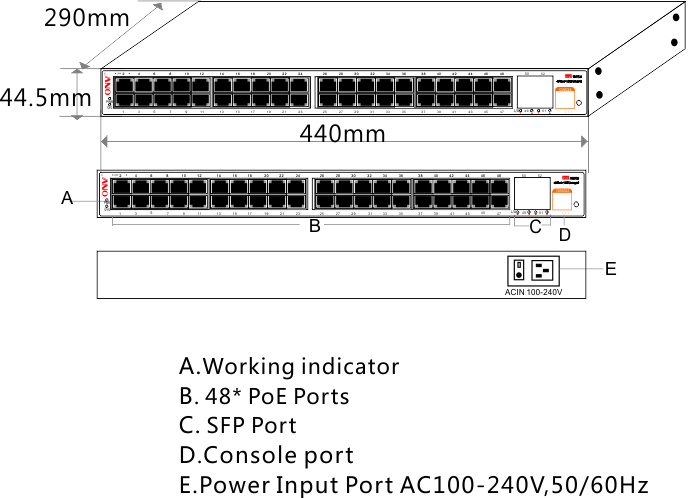

DIMENSION

ORDERING INFORMATION

PACKING LIST
