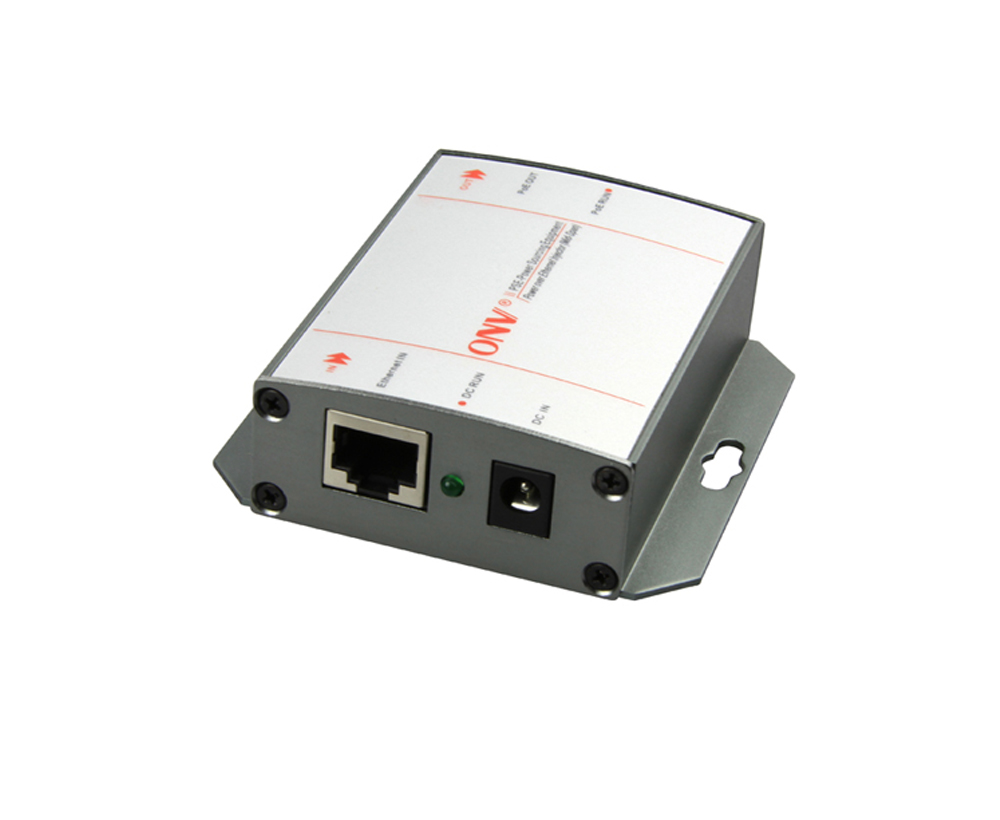

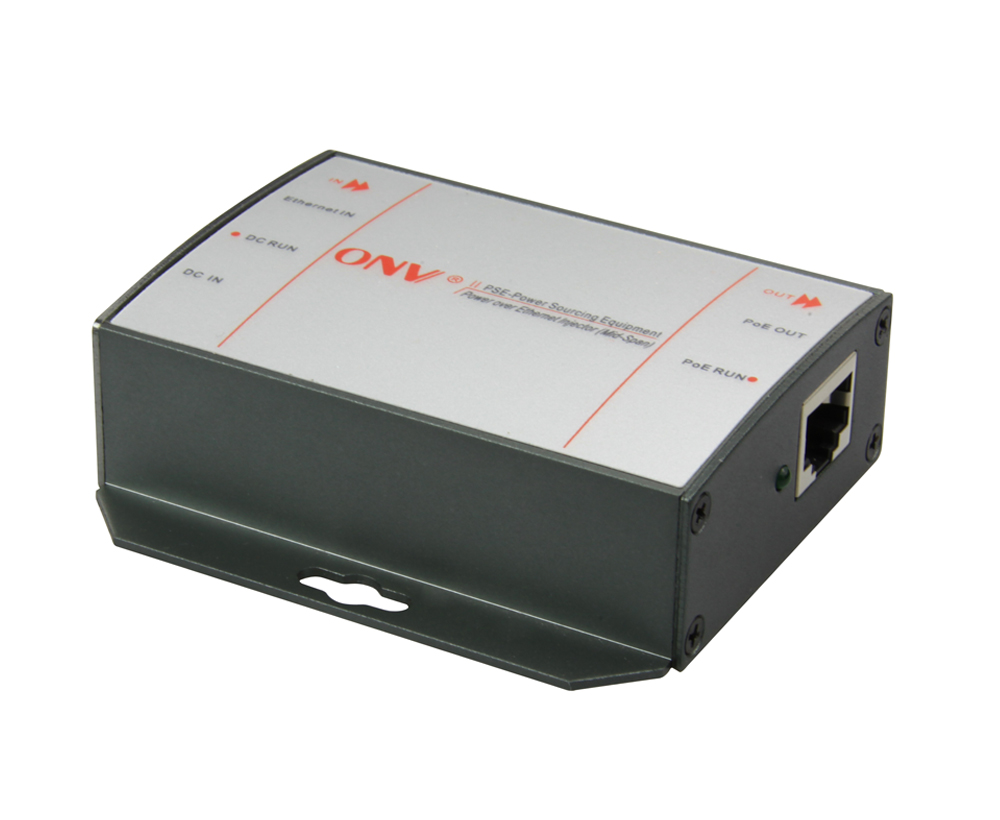

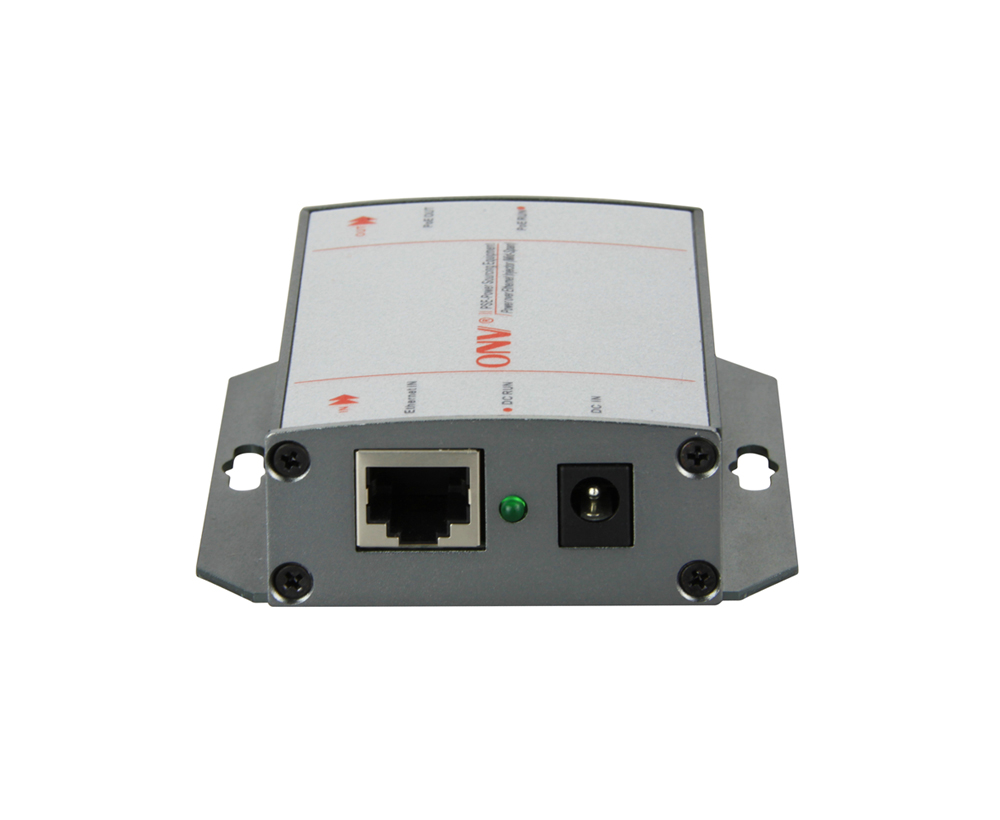

Gigabit single port PoE injector 95W

OVERVIEW

This single port 95W gigabit PoE injector is ONV’s independent research and development for high power PoE injector, it supports LT PoE++ high power standard, and can be backward compatible with IEEE 802.3af/at PoE standard. The maximum output power is 95W, the total power is 110W. There are 2x standard RJ45 network ports, one of which is used as the upper switch or other upper network devices. And another network port is used as the port that integrated PoE power output and network data. It’s more convenient for installation and use of high power network dome cameras or other high power IP devices.

PoE injector can provide a simple and economical solution for high performance Ethernet PoE power supply and data communication. Easy to use and install, superior performance and cost-effective, which is an ideal choice for customer to improve the projects’ quality. It’s an efficient engineering solution to meet the requirement of the reliability system and simplified installation for remote places without power supply or unable to use Ethernet cable to supply power.

FEATURE

Supply power to 5 classes Ethernet network surveillance cameras

2x 10/100/1000Mbps RJ45 ports

Support network port, lightning-proof power input port (the secondary lightning protection)

PoE power supply method: 4/5(+),7/8(-) or 1/2(+),3/6(-)

Support LT PoE++ standard, and compatible with IEEE802.3af /at standard.

Each port output power is 95W, voltage is 50-57V, and the total power is 110W

No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall

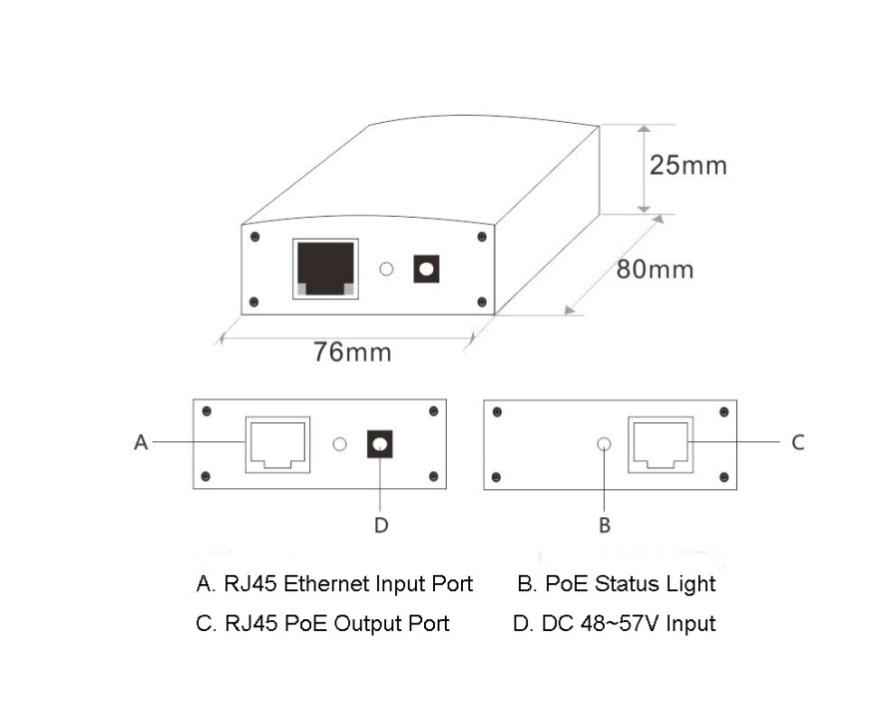

DIMENSION

ORDERING INFORMATION

PACKING LIST
