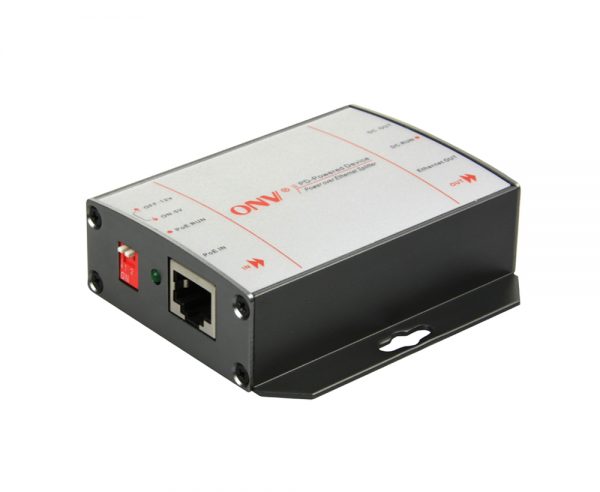

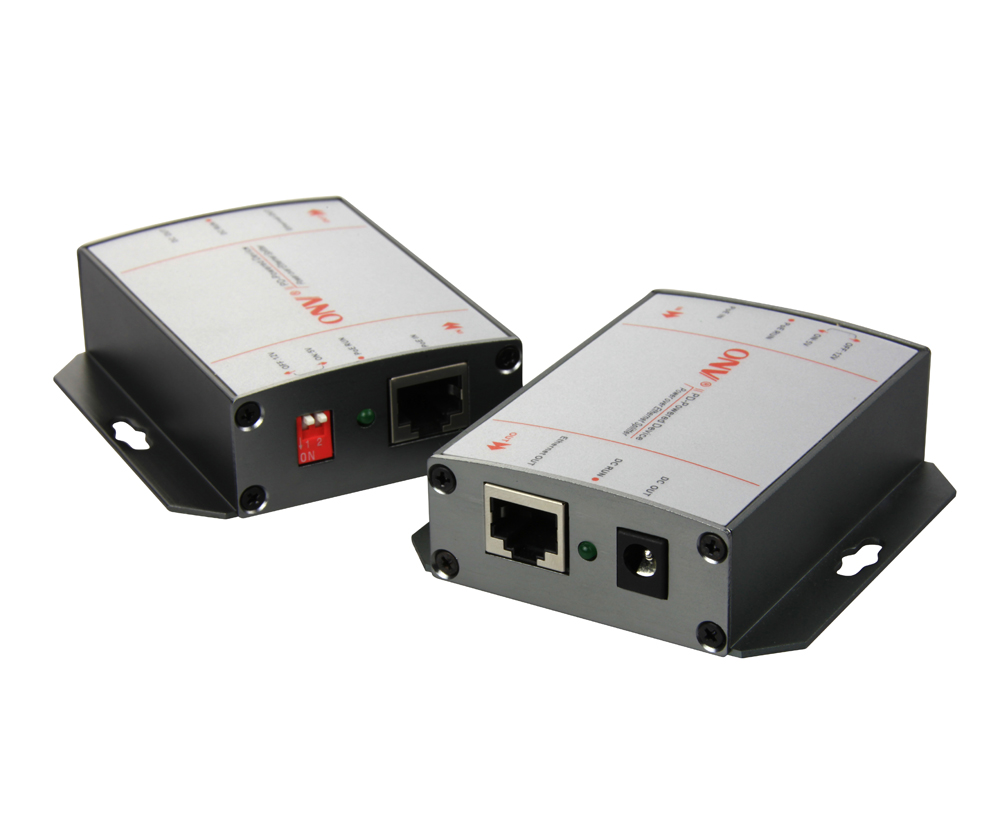

Gigabit single port PoE splitter

OVERVIEW

While working with the IEEE802.3af/at power source equipment (PSE), and auto-detect the IEEE802.3af/at PoE equipment, protects devices from being damaged by incorrect installation. This single port PoE splitter supports the deployment from restrictions of power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time. Data and power transmission distance can be up to 100 meters.

For the cost saving and power management purpose, the ONV-PD3301 is the ideal IEEE 802.3af/at Power over Ethernet device that splits the 48V DC into 5V/12V DC power output through the RJ-45 Ethernet cable. It is complies with IEEE 802.3af/at Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard.

FEATURE

◇ Dual output, 5V/ 12V DC output, can be adjustable

◇ Compatible with IEEE 802.3af/at PSE devices

◇ Support 10/100/1000M data transmission through RJ45 port

◇ Auto-negotiation and auto-MDIX fast Ethernet RJ45 port

◇ Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )

◇ IEEE802.3i; IEEE802.3u; IEEE 802.3x Flow Control; IEEE802.1af DTE Power via MDI

◇ 1000Base-TX (Less than 100 meters, Catalogue 5 cable)

◇ Splits the 48V DC power over RJ-45 Ethernet cable into 5V/ 12V DC output

DIMENSION

ORDERING INFORMATION

PACKING LIST
