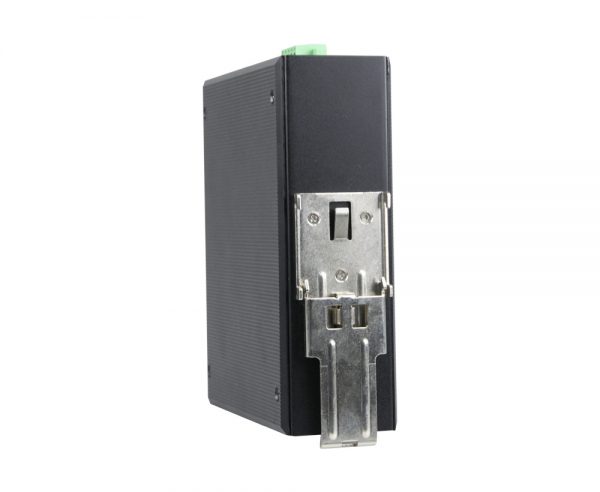

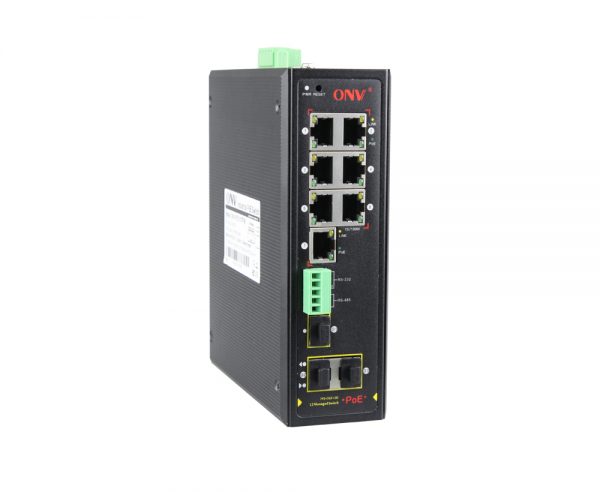

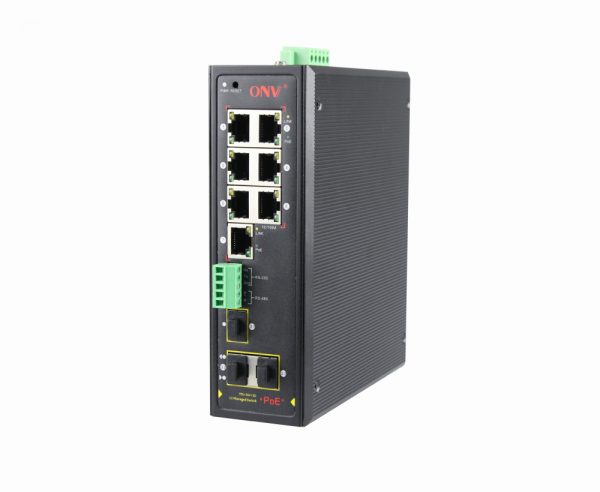

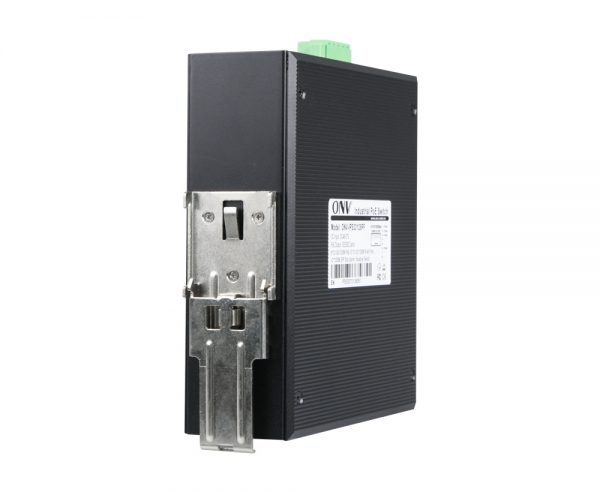

Gigabit uplink 10-port managed industrial PoE data switch

OVERVIEW

The ONV-IPS31107PFM-2D series is a L2 gigabit uplink managed industrial PoE data switch independently developed by ONV. It has 7*10/100Base-TX RJ45 ports and 3*1000Base-X uplink SFP slot ports. Port 1-7 can support IEEE 802.3af/at standard PoE power supply, single-port PoE power up to 30W, and the maximum PoE output power is 120W (at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, web camera, VoIP phone, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

ONV-IPS31107PFM-2D has L2 network management function and provides serial to network function. It can convert RS232/485 serial port into TCP/IP network interface, it can realize data bidirectional transparent of RS232/485 serial port and TCP/IP network interface. transmission. The serial device can immediately have the TCP/IP network interface function, connect the network for data communication, and greatly expand the communication distance of the serial device.

FEATURE

10/100M Ethernet port access, Gigabit SFP uplink

◇ Gigabit uplink SFP fiber port, easy to achieve high switching capacity and high rate transmission.

Provide data bidirectional transparent transmission, can realize serial port to TCP/IP, the users do not need to make any modifications to the original system.

◇ Support 1 channel RS485 serial port data to TCP/IP transparent transmission;

◇ Support 1 channel RS232 serial port data to TCP/IP transparent transmission;

Powerful port lightning protection, ultra-wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input

◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.

Intelligent PoE power supply function

◇ 7*10/100Base-TX RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Strong business processing capability

◇ IGMP V1/V2 and IGMP Snooping.

◇ ERPS/STP/RSTP/MSTP.

◇ Static and dynamic aggregation.

◇ IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

◇ Support IEEE 802.1Q VLAN, users can flexibly divide VLANs according to requirements and support port-based VLANs.

◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

Stable and reliable

◇ Low power consumption, fanless mute design, aluminum alloy metal shell.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ CCC,CE, FCC, RoHS.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link,L/A,PoE.

Easy operation and maintenance management

◇ Support web management and maintenance.

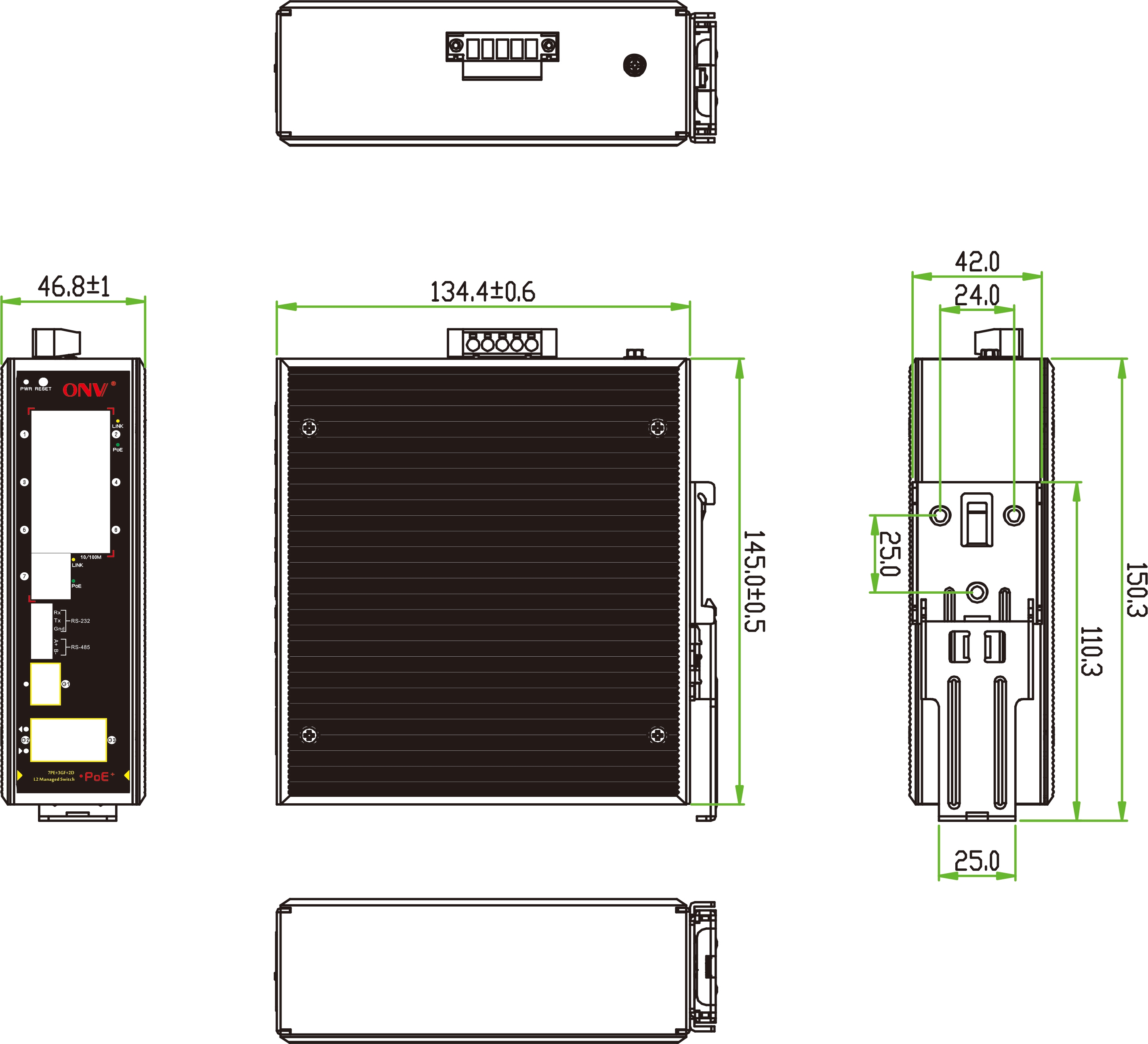

DIMENSION

ORDERING INFORMATION

PACKING LIST
