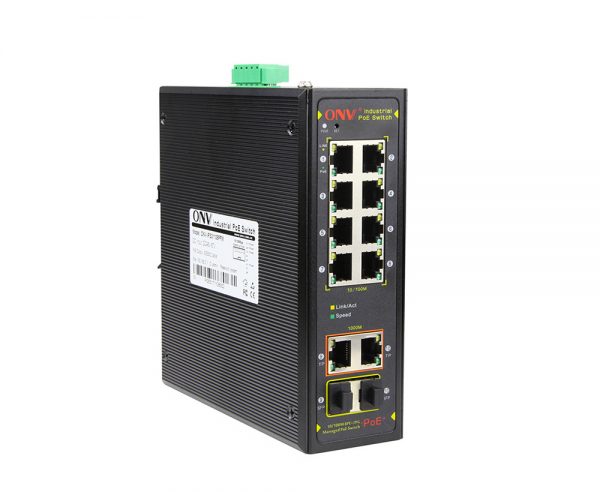

Gigabit uplink 8-port managed industrial PoE switch
OVERVIEW
The ONV-IPS31108PFM series is a gigabit uplink L2 managed industrial PoE fiber switch independently developed by ONV. It has 8*10/100Base-TX RJ45 ports and 2*100/1000Base-T(X) combo ports , Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 120W(at-240W). and each port can realize line-speed forwarding.
The ONV-IPS31108PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It can support security protection mechanisms, ACL/QoS policies, and VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.
FEATURE
100M access, Gigabit combo port uplink
◇ All series support “10/100M Ethernet port and Gigabit combo port”combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply
◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
◇ PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration.
◇ QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
◇ ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
◇ IGMP V1/V2 and IGMP Snooping.
◇ ERPS/STP/RSTP/MSTP.
◇ Static and dynamic aggregation.
Security
◇ 802.1X authentication.
◇ Port isolation,Storm control.
◇ IP-MAC-VLAN-Port binding.
Stable and reliable
◇ Low power consumption, no fan , aluminum casing.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.
Easy operation and maintenance management
◇ Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS31108PFM |
L2 managed industrial PoE fiber switch with 8*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M uplink SFP slot ports (combo port), Port 1-8 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting. |
<120W |
|
ONV-IPS31108PFM-at |
<240W |
|
|
Note: Industrial PoE switch does not match the SFP optical module and power supply. |
||
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
10-port gigabit uplink managed industrial PoE switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
