Gigabit uplink 10-port PoE switch

OVERVIEW

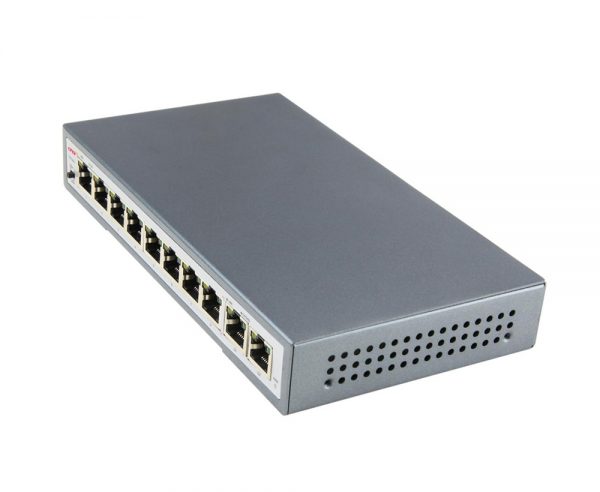

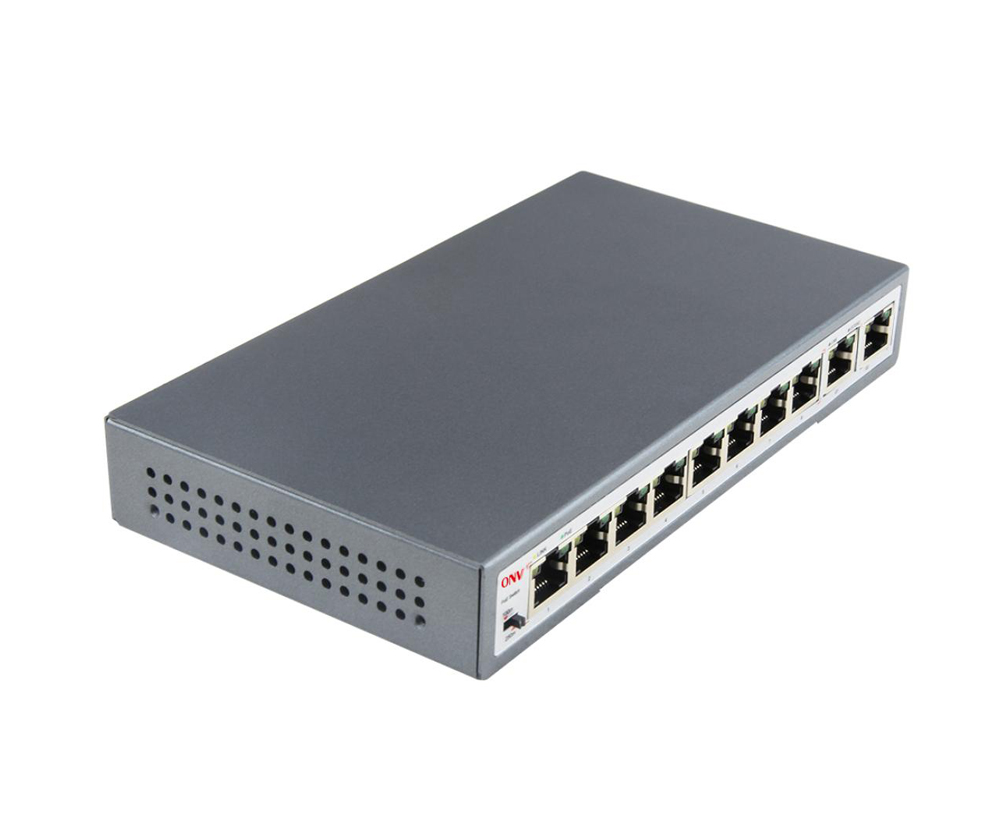

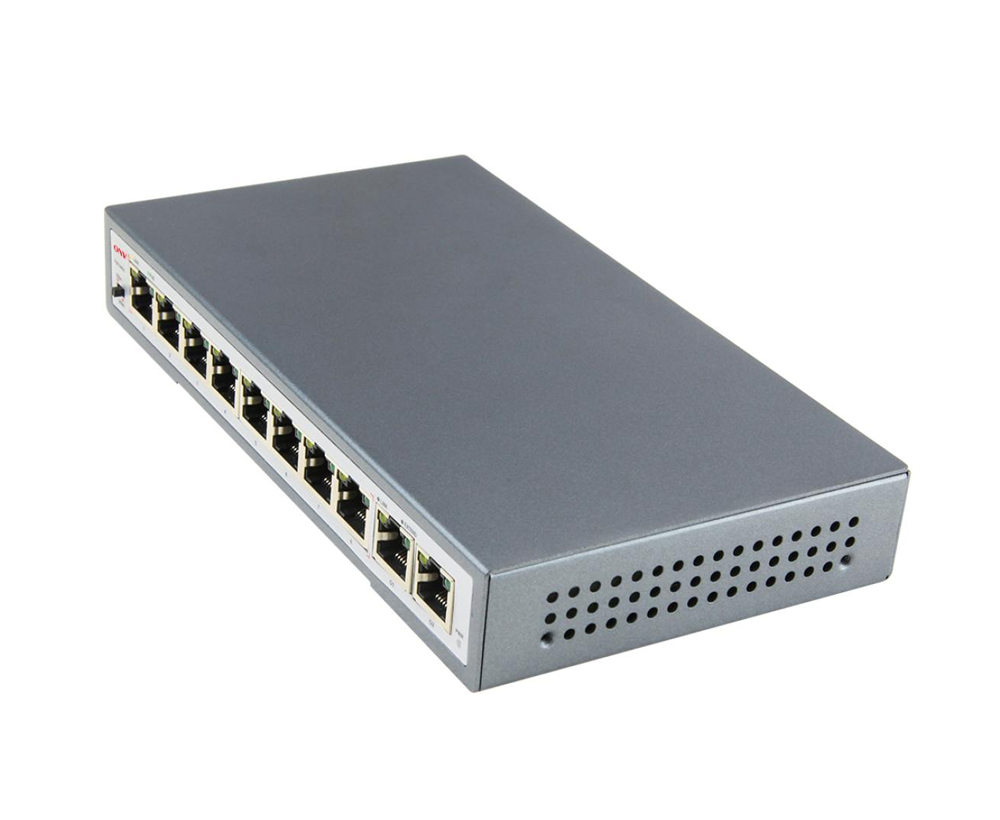

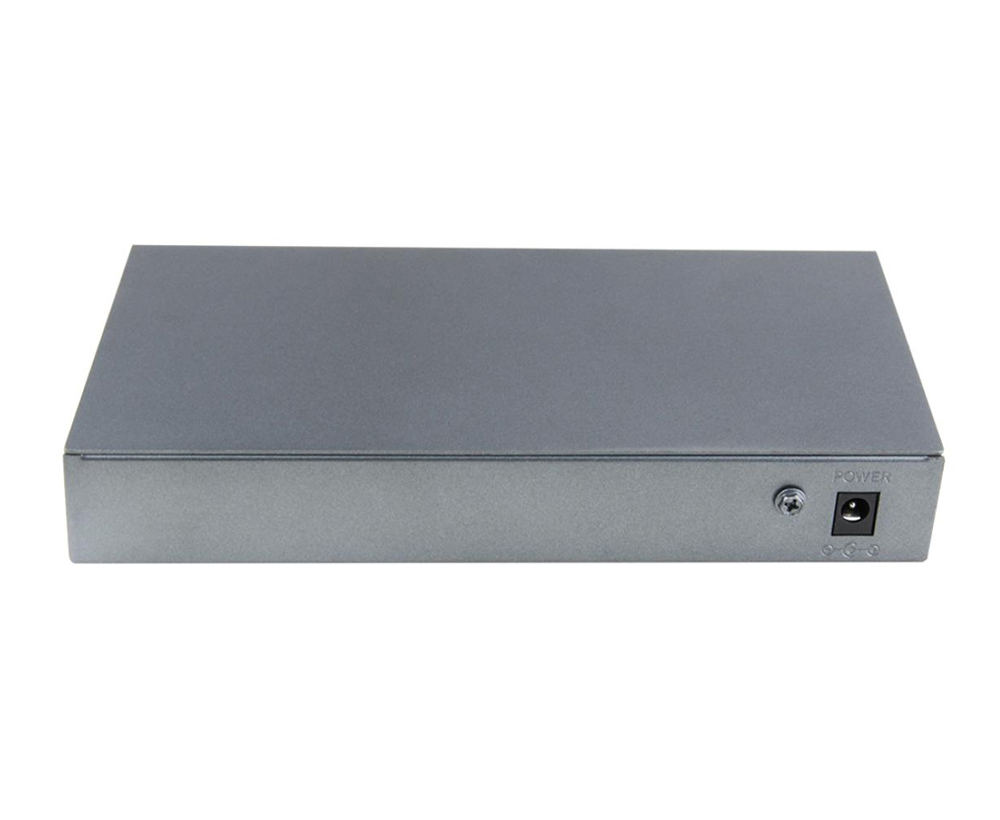

The ONV-POE31108PG is an unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100/1000M RJ45 ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 110W (at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged mode, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps access, gigabit RJ45 port uplink

◇ A combination of 10/100M Ethernet port and Gigabit RJ45 port to meet the networking requirements of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

Innovative functional switch

◇ Long-distance switch: When opening, the speed of port 1-8 is 10M, which can break the limit of 100m transmission of twisted pair, and the transmission distance reaches 250m, which can solve the problem of poor transmission caused by line aging.

Stable and reliable, easy to operate

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption and low noise, fan-less design, metal shell

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

DIMENSION

ORDERING INFORMATION

 PACKING LIST
