Antaira IMC-100A-S3

10/100TX To 100FX Industrial Media Converter, Single-Mode 30km, with SC Connector.

Mã: IMC-100A-S3 Danh mục: Media Converters Antaira Từ khóa: IMC-100A-S3

Mô tả
Sản phẩm liên quan

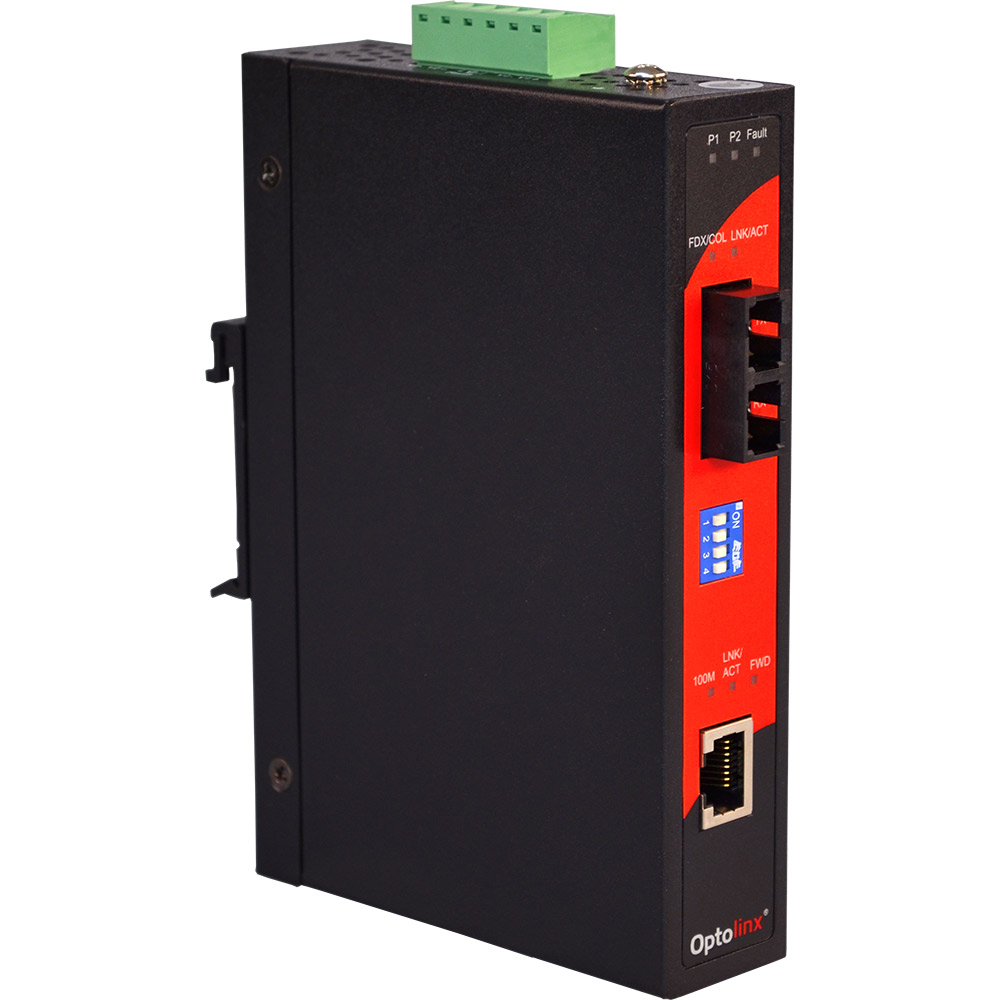

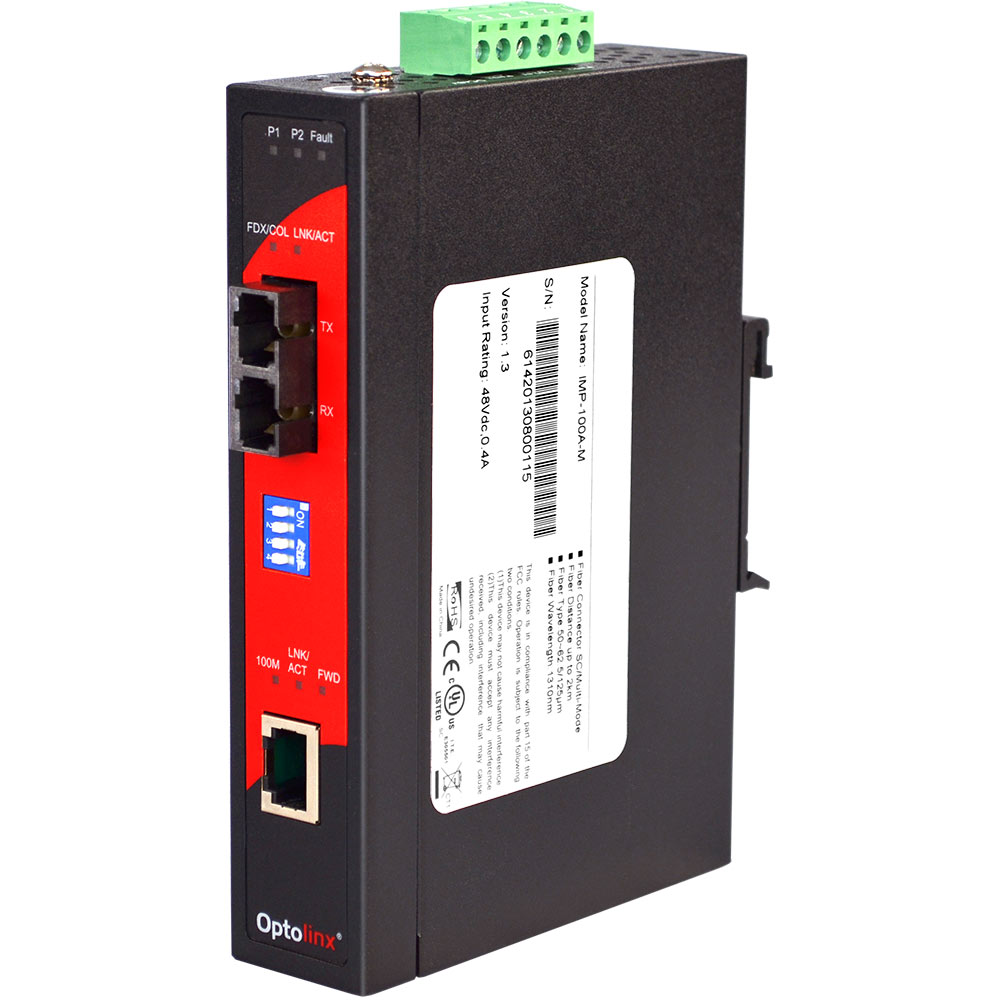

Antaira Technologies IMC-100A-S3 is an industrial grade, fast Ethernet, single-mode, media converter. The IMC-100A-S3 will convert between 10/100BaseTX copper to 100BaseFX fiber. The industrial media converter conforms to the FCC emission standards and is

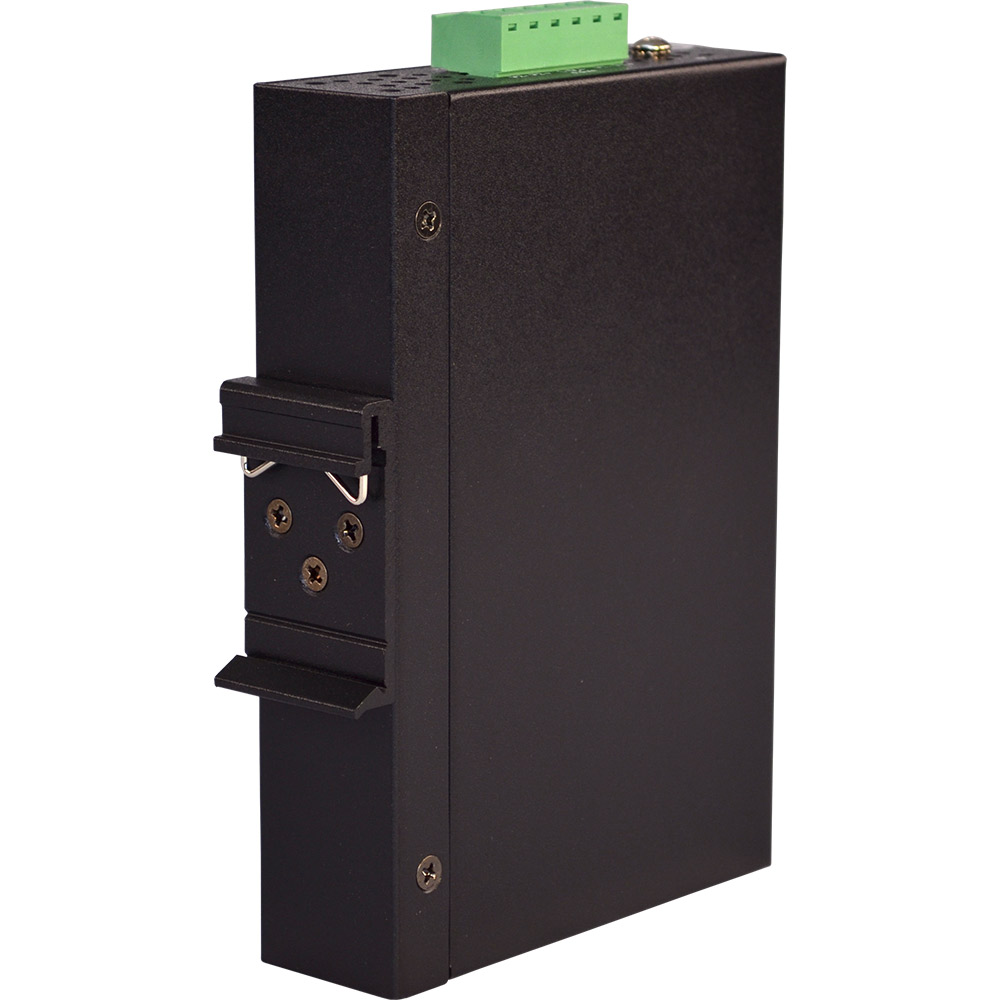

housed in a metal, din rail mountable case. The IMC-100A-S3 features a standard SC connector as well as a copper STP-RJ45 Ethernet connector. The IMC-100A-S3 is compliant with the IEEE 802.3u and 802.3x standards. The IMC-100A-S3 fast Ethernet media converter
will use single mode 1310nm wavelength fiber and is capable of communication of up to 30 kilometers.

UTP to Fiber Media Converter
RJ-45 Port Support Auto MDI/MDI-X Function
Auto Negotiation Speed, Half/Full Duplex
Store-and-Forward Switching Architecture
Built-in Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
Wide-range Redundant Power Design
Power Polarity Reverse Protection
Overload Current Protection
UL Class I, Division 2 Certified
DIN-Rail or Wall Mountable
IP30 Protection
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/FX Fast Ethernet
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x back pressure flow control
Ethernet Interface
Ethernet Port Count	1 port
10/100 BASE-T(X)	10/100BaseT: 1 × RJ45 Port
Fiber Interface
Fiber Port Count	1 port
100 BASE-FX Fiber	100BaseFX: 1 × SC Port
Wavelength	1310nm
Transmission Distance	30 km
Link Loss Forward	Link Loss Forwarding (LLF) & Link-Fault-Pass-Through (LFP)
Other Interface
DIP Switch	DIP Switch 1: Enables Port/Power Alarm (ON), Disables Port/Power Alarm (OFF) DIP Switch 2: Enables LLF and LFP (ON), Disables LLF and LFP (OFF) DIP Switch 3: 100BaseFX Half-Mode (ON), 100BaseFX Full-Mode (OFF) DIP Switch 4: 100BaseTX Full-Duplex Mode (ON), Au~ Negotiation (OFF)
LED Indicator	Power1, Power2(Green), Fault (Red) Fiber: Link/Activity(Green), Half/Full-Duplex(Yellow) Etherent : Link/Activity(Green), 100M (Yellow)
Performance
Jumbo Frame	1,600 bytes
Memory Buffer	128 kbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Power Requirements
Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
System Power Consumption	2.74 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 70° C (14° to 158° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 90% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection

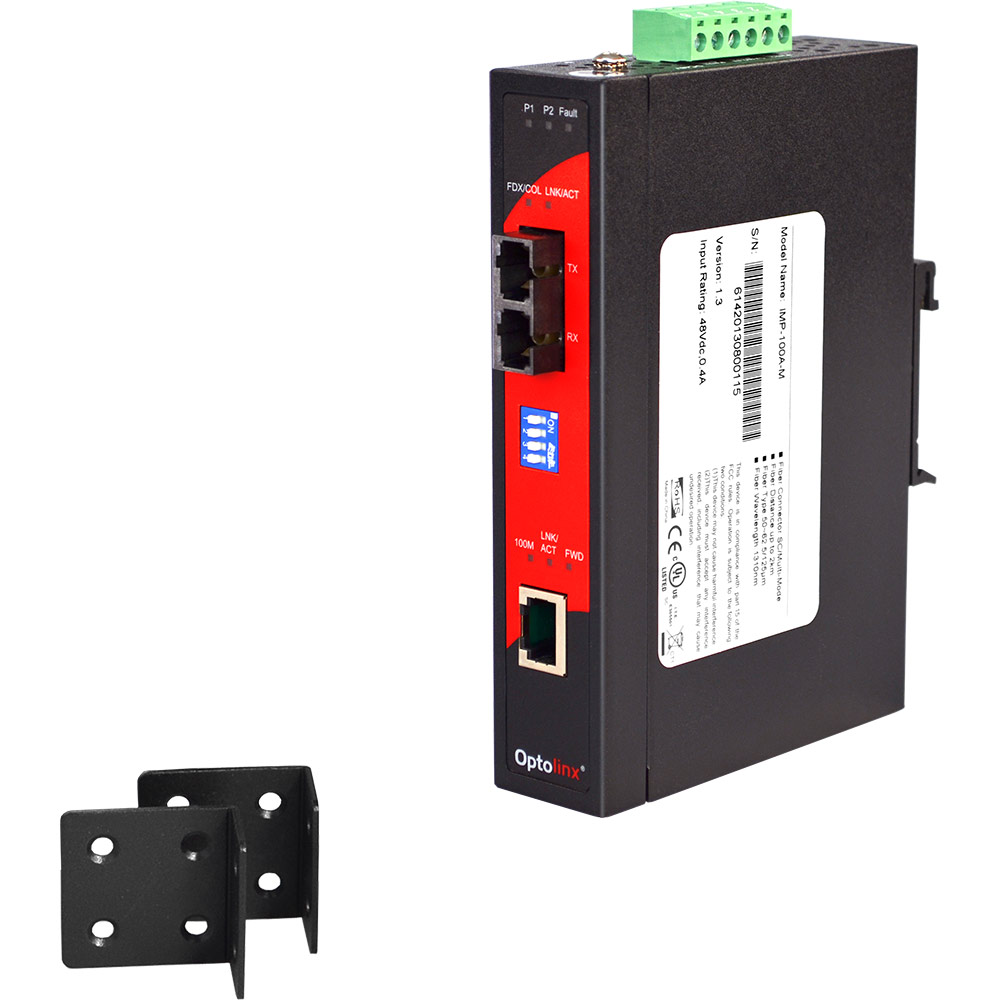

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	30 × 140 × 95 mm (1.18 × 5.51 × 3.74 inches)
Weight	Unit: 0.95 Ib Shipping: 1.4 Ibs
Regulatory Approvals
Certifications	FCC, CE
ISA 12.12.01 (UL C1D2)	✔
EMI	FCC Part 15 Subpart B Class A EN 61000-6-4 Class A EN 61000-3-2 EN 61000-3-3
EMS	CE EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 EN61000-4-12
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6
Green	RoHS Compliant
Warranty	5 years
