Antaira LMP-0601G-SFP-V2

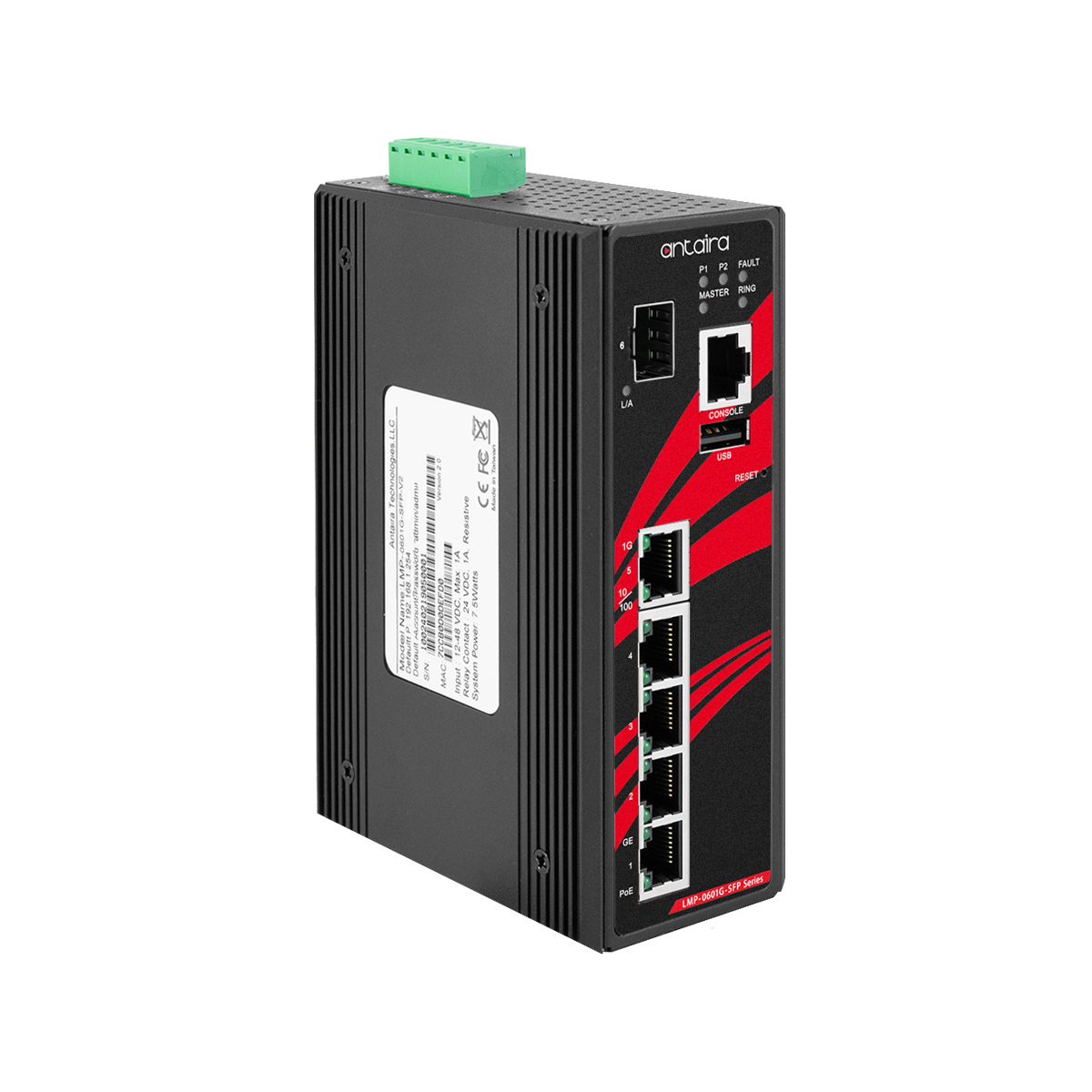

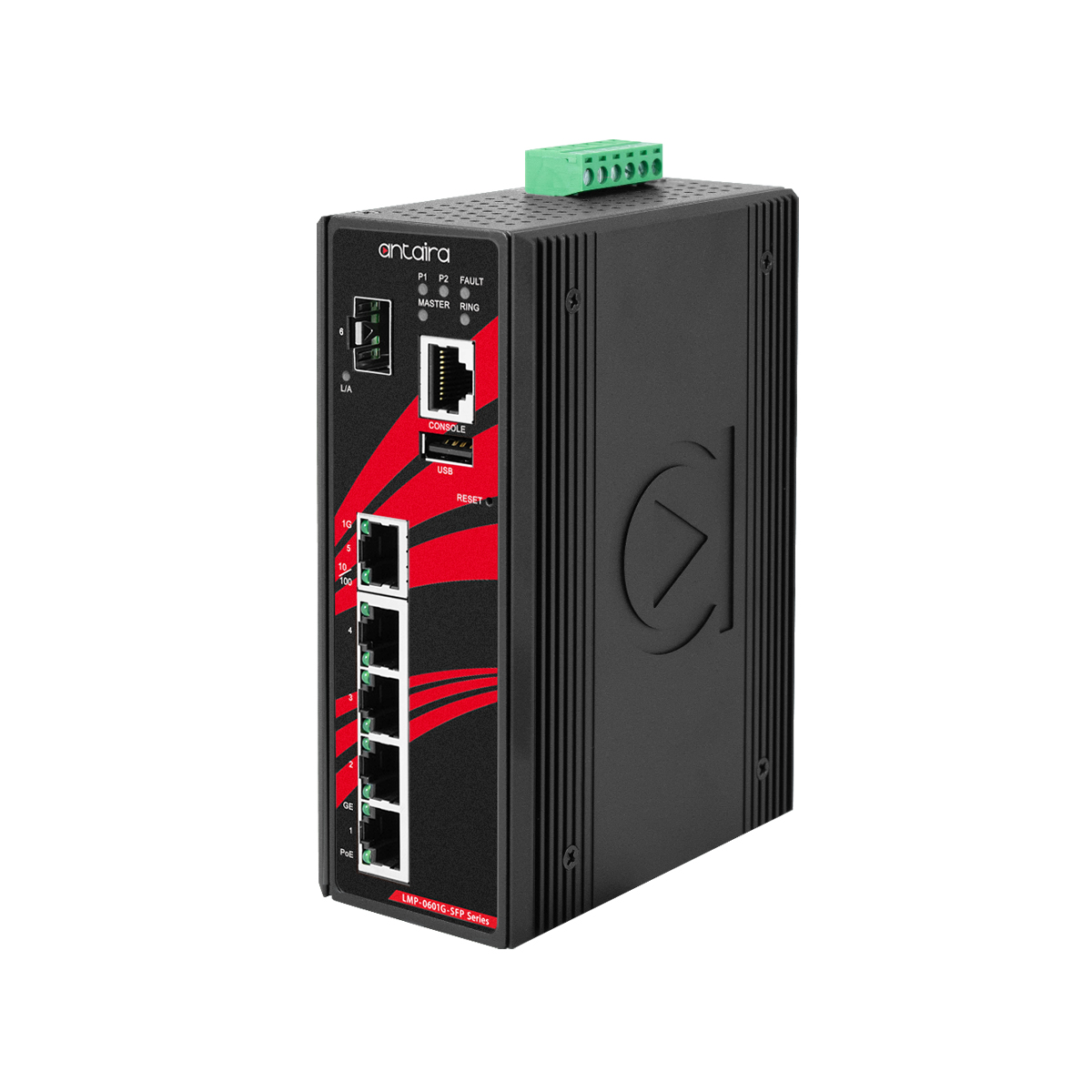

Antaira’s LMP-0601G-SFP is a 6-port industrial PoE+ gigabit managed Ethernet switch that is embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, 1*10/100/1000Tx Fast Ethernet port, and 1*100/1000 dual
rate SFP slot for fiber connection.
The LMP-0601G-SFP is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software, and supports a user friendly web console interface for easy configuration. This product is IP30 rated, DIN-rail mountableIt supports
industrial standard temperature range from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.
- Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, + 1*10/100/1000Tx, and 1*100/1000 SFP Slot
- Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- System Warning Setting for Automatic Warning through Email
- Redundant Power Input Design: 48~55VDC
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Operating Temperature – STD: -10~70C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch) IEEE 802.1Q Virtual LANs (VLAN) IEEE 802.1x Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization IEEE 802.1ad Stacked VLAN Q-in-Q |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD, IGMPv1/v2, SNMPv1/v2, TFTP, SNTP, SMTP, RARP, Syslog |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 5 ports |
| 10/100/1000 BASE-T(X) | 5 ports |
| PoE Port | 4 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 1 port |
| 100/1000 BASE-(F)X SFP | 1 port |
| Wavelength | Refers to SFP module |
| Other Interface | |
| LED Indicator | Power 1, Power 2, Fault, Master, Ring: On / Off Fiber Port: Link / Act Ethernet Port: Link / Act PoE: On-connected to PD devices |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 4 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 12Gbps |
| Software | |
| Configuration | Web Console, Telnet, CLI Command |
| VLAN Group | 4095 |
| IGMP Group | 1024 |
| Ethernet Redundancy | STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2( |
| Power Requirements | |

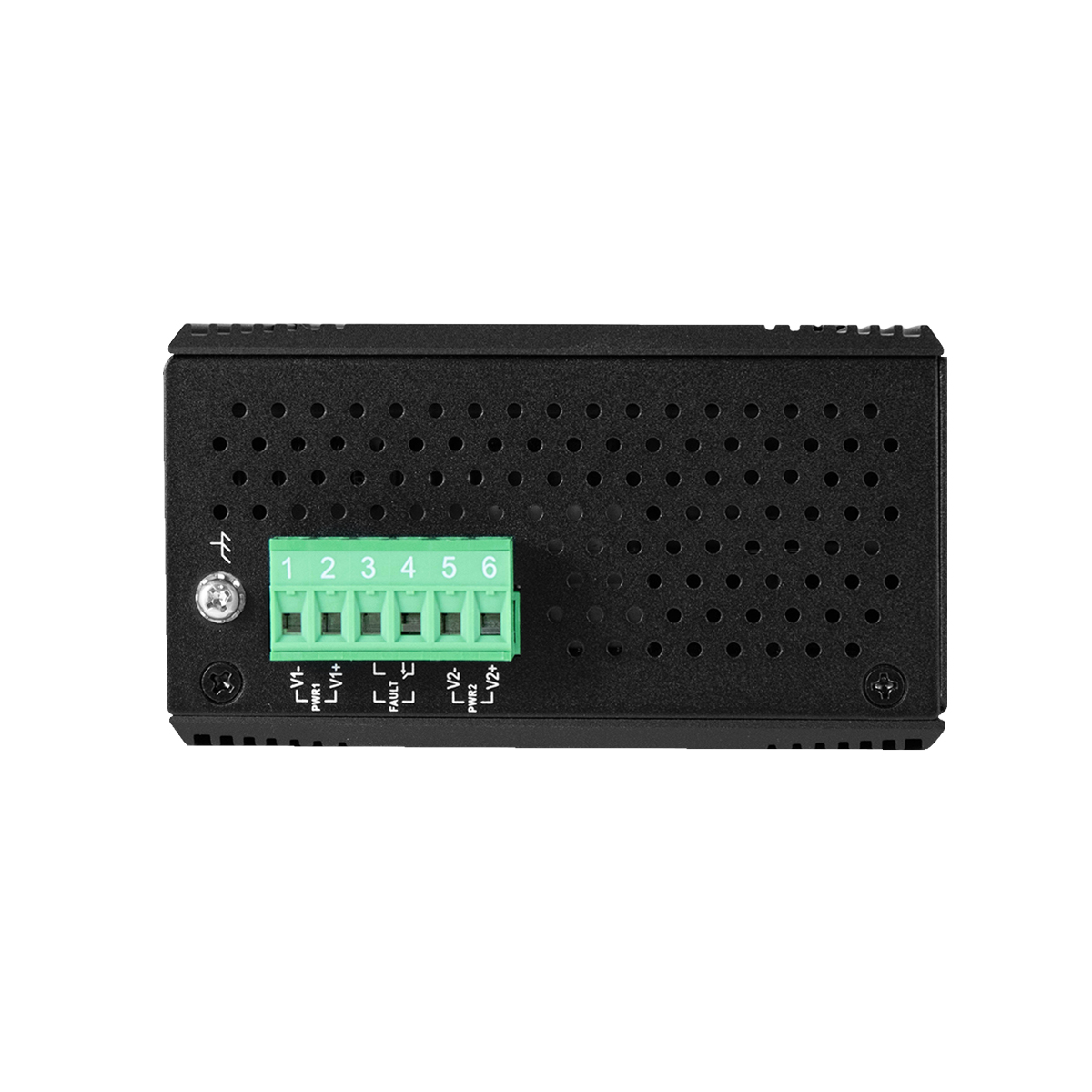

| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 48V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 7.5 Watts |
| Max. PoE Power Budget | 120 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

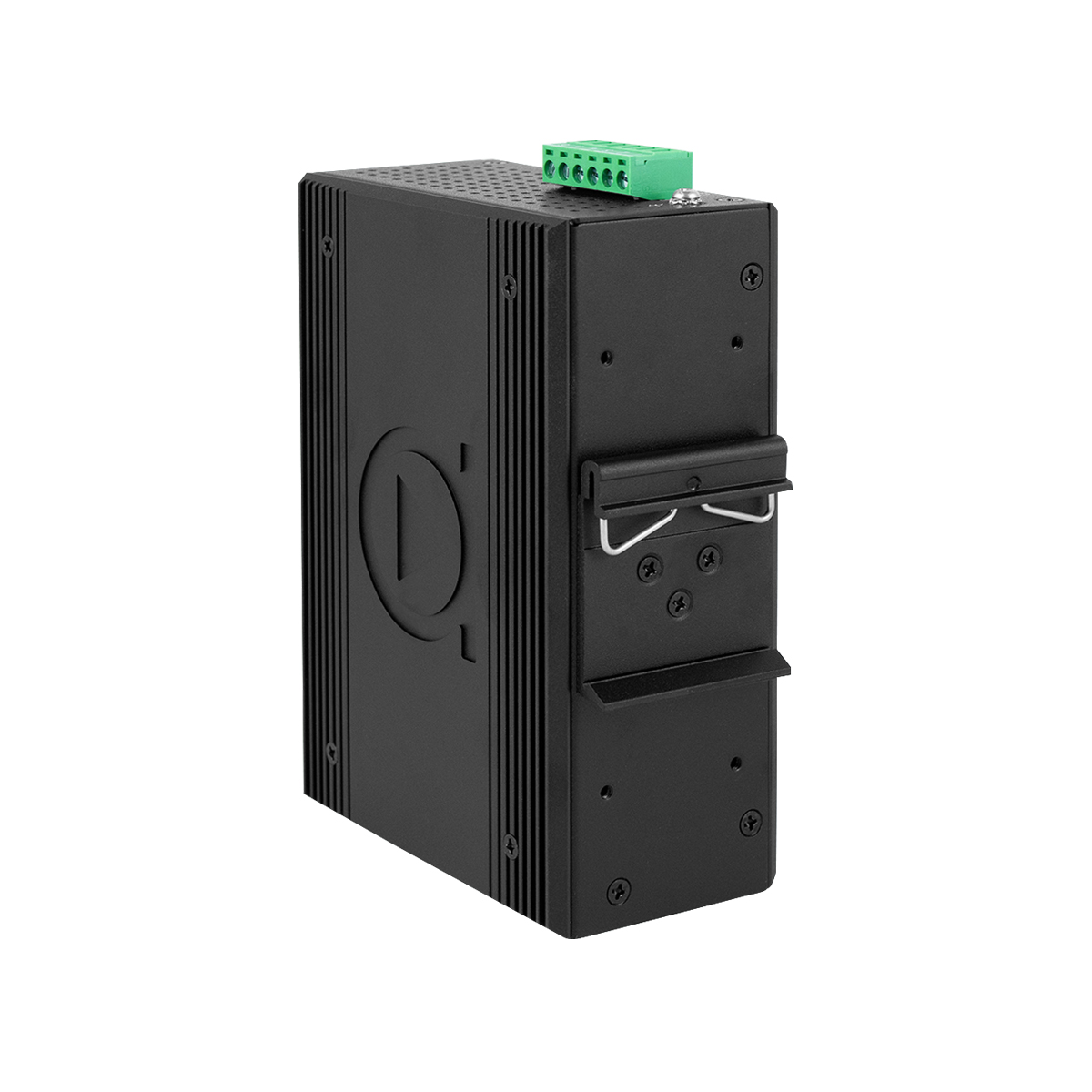

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 1.9 lbs Shipping weight : 2.7 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 60950-1 | ✔ |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| MTBF | 516,613hrs. |
| Green | RoHS Compliant |
| Warranty | 5 years |
