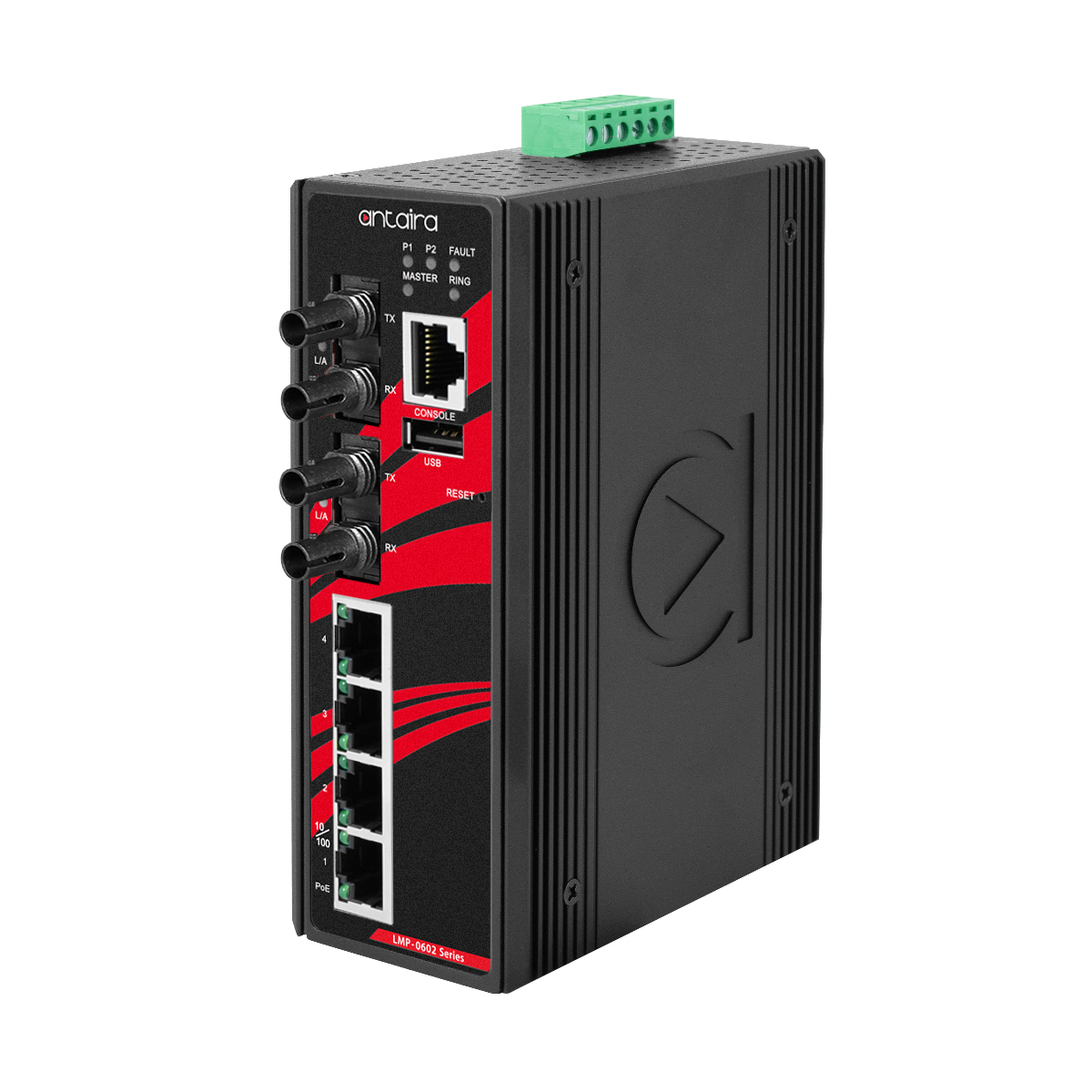

Antaira LMP-0602-ST-M-24-T-V2

Antaira’s LMP-0602-24 is a 6-port industrial PoE+ managed Ethernet switch that is embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30 watts per port, and 2*100Fx (SC or ST connector) fiber ports with optional versions
for multi-mode (2Km) and single-mode (30Km).

LMP-0602-24 is a fully manageable industrial Ethernet switch with pre-loaded Layer 2 network management web console, and it supports a low voltage redundant power input range in 12~36VDC with a voltage booster. This product is IP30 rated and DIN-rail mountable
and supports industrial extended temperature range from -40°C to 75°C. It also provides a high EFT and ESD protection for any industrial networking application in factory automation, ITS, power/utility, water wastewater treatment plants, and any outdoor or
harsh environment.

• Supports 4*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, and 2*100Fx (ST) Fiber Ports
• Fiber Supports: Multi-Mode in 2Km
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c
• PoE Ping Alarm Function for PoE Ports Power Recycle
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design – 12~36VDC (Voltage Booster)
• Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
• Operating Temperature – EOT: -40~75C
• 5-Year Warranty
