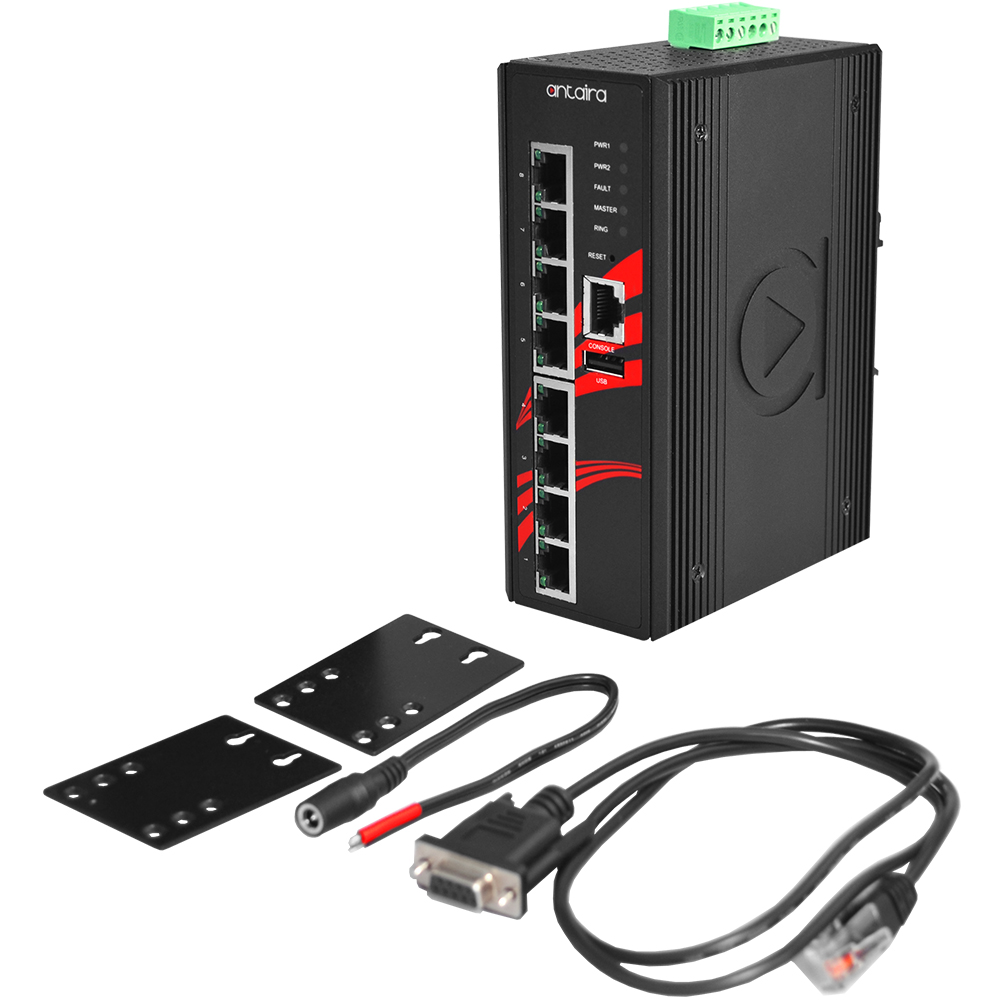

Antaira LMP-0800G

Antaira’s LMP-0800G is a 8-port industrial managed Ethernet switch that is embedded with 8*10/100/1000Tx Gigabit ports. All 8 ports on this unit are PoE+ IEEE 802.3af/at compliant, capable of providing up to 30 watts of PoE power at each RJ45 port. This
model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software.

The LMP-0800G has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation,
ITS, power/utility, water wastewater, Security, or any other outdoor or harsh environment.

• Supports 8*10/100/1000Tx Gigabit Ports
• IEEE 802.3af/at Compliant up to 30 Watts per Port
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Network Broadcast Storm Protection
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
• Redundant Power Input Design 48~55VDC + Built-in relay output for Port Break Alarm
• System Warning Setting for Automatic Warning through E-mail

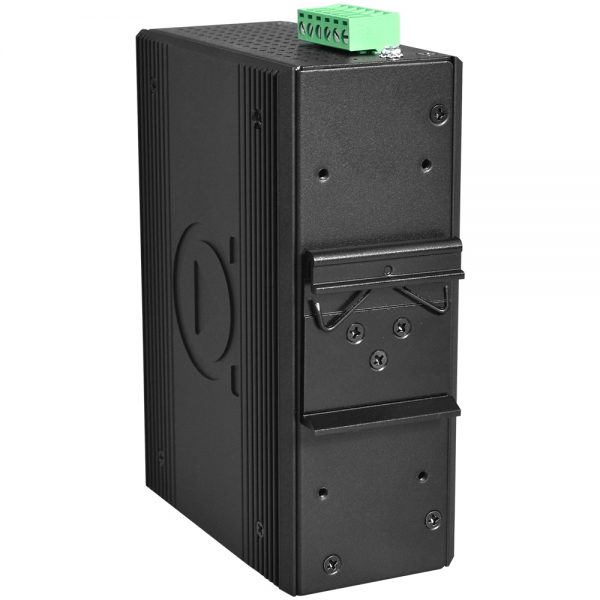

• DIN-Rail and Wall Mount Support
• Operating Temperature Range – STD: -10° to 70° C
• 5-Year Warranty
