Antaira LMP-1002G-10G-SFP

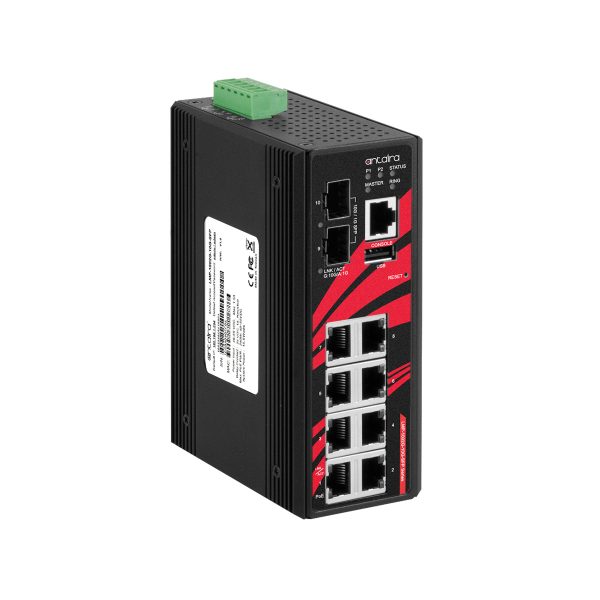

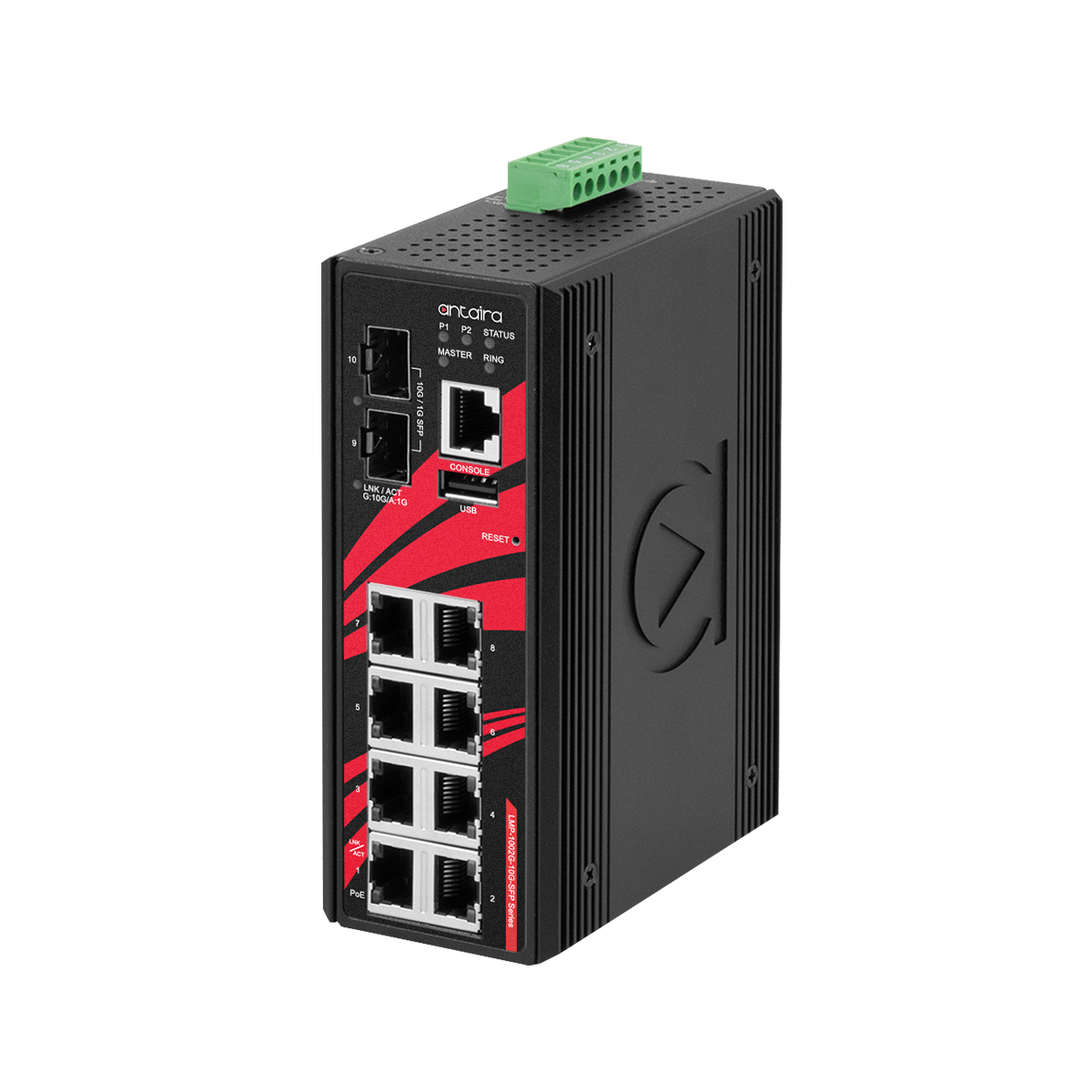

Antaira Technologies’ LMP-1002G-10G-SFP is a 10-port industrial gigabit managed Ethernet switch that is embedded with eight PoE+ gigabit Ethernet ports and two dual rates (1G/10G) SFP+ slots for fiber connection. This series is a fully manageable industrial
Ethernet switch pre-loaded with standard Layer 2 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for edge-level connectivity solutions.
The LMP-1002G-10G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 60°C. It also provides high EFT and ESD protection for any industrial networking application within factory
automation, ITS, power/utility, water/wastewater, or any other outdoor or harsh environment. The two 10 gig SFP+ ports deliver high bandwidth support to applications requiring greater speeds of connectivity.
- Supports 8*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
- Supports 2*1G/10G SFP+ Slots
- Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Supports IPv4/IPv6, and DHCP Option 66/67/82
- Supports Modbus/TCP Protocol for Device Management and Monitoring
- IGMP v1/v2 for Multicast Traffic Filtering
- IEEE802.1Q VLAN for Easy Network Planning
- Power Input: 48~55VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP30 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range – STD: -40° to 60°C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af/at Power over Ethernet IEEE 802.3x Flow Control IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-T G.8032 / Y.1344 ERPS v1/v2(Ethernet Ring Protection Switch) IEEE 802.1Q Virtual Local Area Network (VLAN) IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization IEEE 802.1X Network Authentication IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.3ad Link Aggregation (LACP) |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD, IGMPv1/v2, SNMPv1/v2, TFTP, SNTP, SMTP, RARP, Syslog |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100/1000 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Fiber Interface | |
| Fiber Port Count | 2 port |
| 1G/10G SFP+ | 2 port |
| Wavelength | Refers to SFP module |
| Other Interface | |
| LED Indicator | System: Power 1, Power 2, Master, Ring, Status Ethernet ports: Speed/Link/Active PoE: On-connected to PD devices SFP: Link/Active |
| Performance | |
| MAC Table Size | 16K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 8 Mbits |
| Transfer Rate | 14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Ethernet port 14,880,000pps for 10 Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 56Gbps |
| Software | |
| Configuration | Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3 |
| VLAN Group | 4095 |
| IGMP Group | 1024 |
| Ethernet Redundancy | STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 ( |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 48V–55V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 15.5 Watts |
| Max. PoE Power Budget | 240W |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 60° C (-40° to 140° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

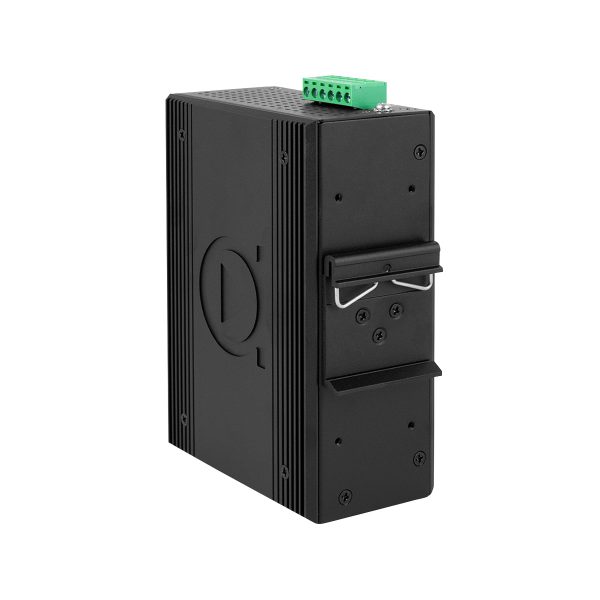

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 2.43 lbs Shipping weight : 3.10 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 61010-1 / UL 61010-2-201 | UL61010-1, UL61010-2-201 |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55035 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| MTBF | 352,670 hrs. |
| Green | RoHS Compliant |
| Warranty | 5 years |
