Antaira LMP-1202M-SFP-24-T

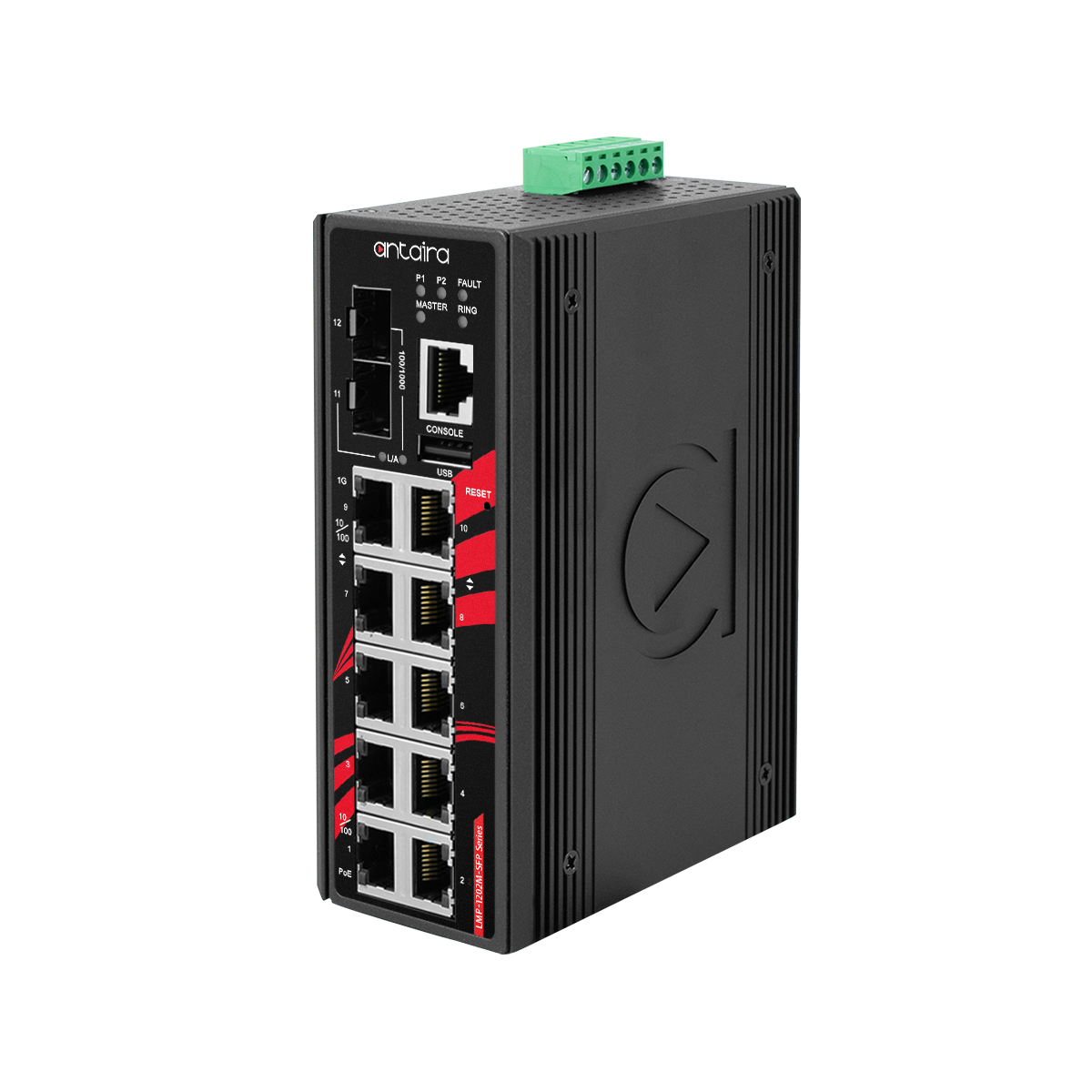

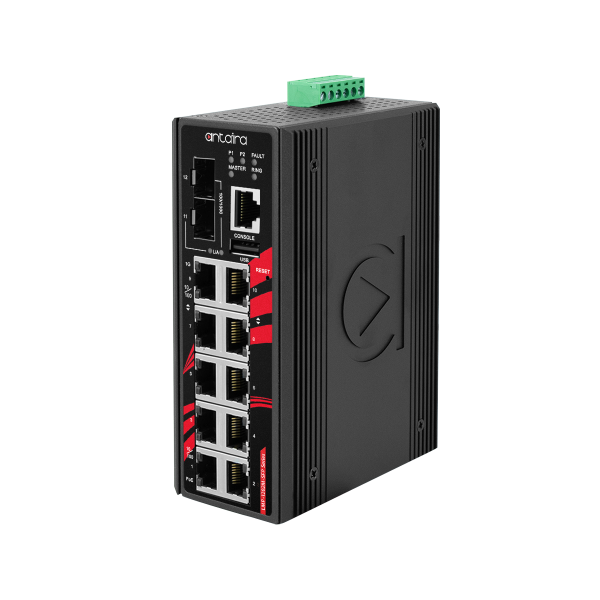

Antaira’s LMP-1202M-SFP-24 series is a 12-port industrial PoE+ managed Ethernet switch embedded with 8*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port, 2*10/100/1000Tx RJ45 and 2*100/1000 dual rate SFP slots for gigabit fiber
connections. The LMP-1202M-SFP-24 series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS
(Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security

functions, such as, IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMP-1202M-SFP-24 series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models of either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). This series supports

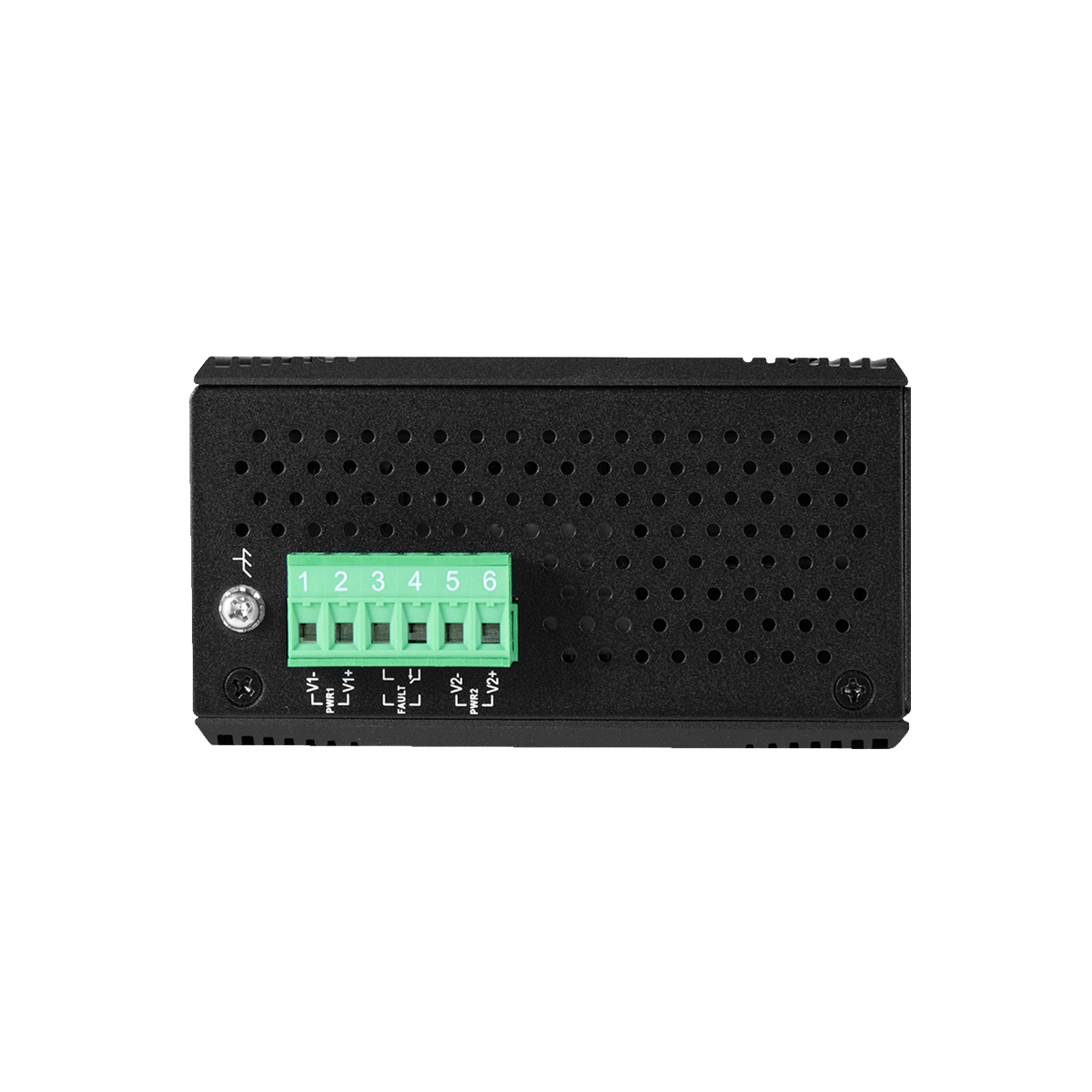

a dual power input having a low voltage range (12~55VDC) and a built-in voltage booster allowing the unit to give a full 48VDC PoE power for any mobile PoE application or any low voltage power sourcing environment. It also provides high EFT and ESD protection
for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

• Supports 8*10/100Tx IEEE 802.3at/af Compliant with 30W/Port, 2*10/100/1000Tx RJ45 & 2*100/1000 SFP Slots for Fiber Connections
• Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Auto Warning by Exception through E-mail, Relay Output
• Support RMON function for Efficient Network Monitoring
• Support Port Mirroring for Online Diagnostic
• Low Power Input 12~36VDC (w/Voltage Booster)
• 5-Year Warranty
