Antaira LMX-0600-V2

6-Port Industrial Managed Ethernet Switches w/6*10/100Tx. (Hardware Version 2)

Mã: LMX-0600-V2 Danh mục: Switch công nghiệp Antaira Từ khóa: LMX-0600-V2

Mô tả
Sản phẩm liên quan

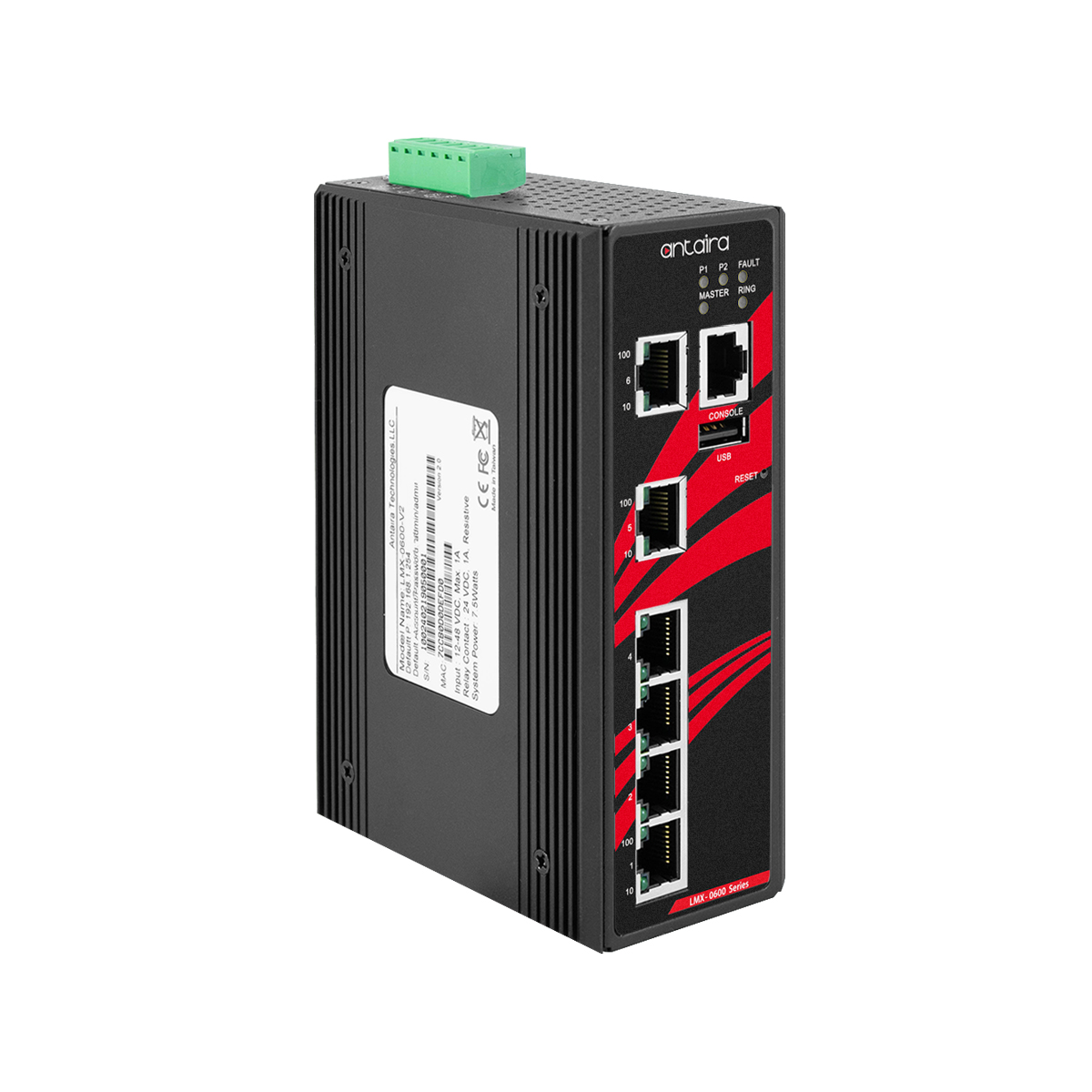

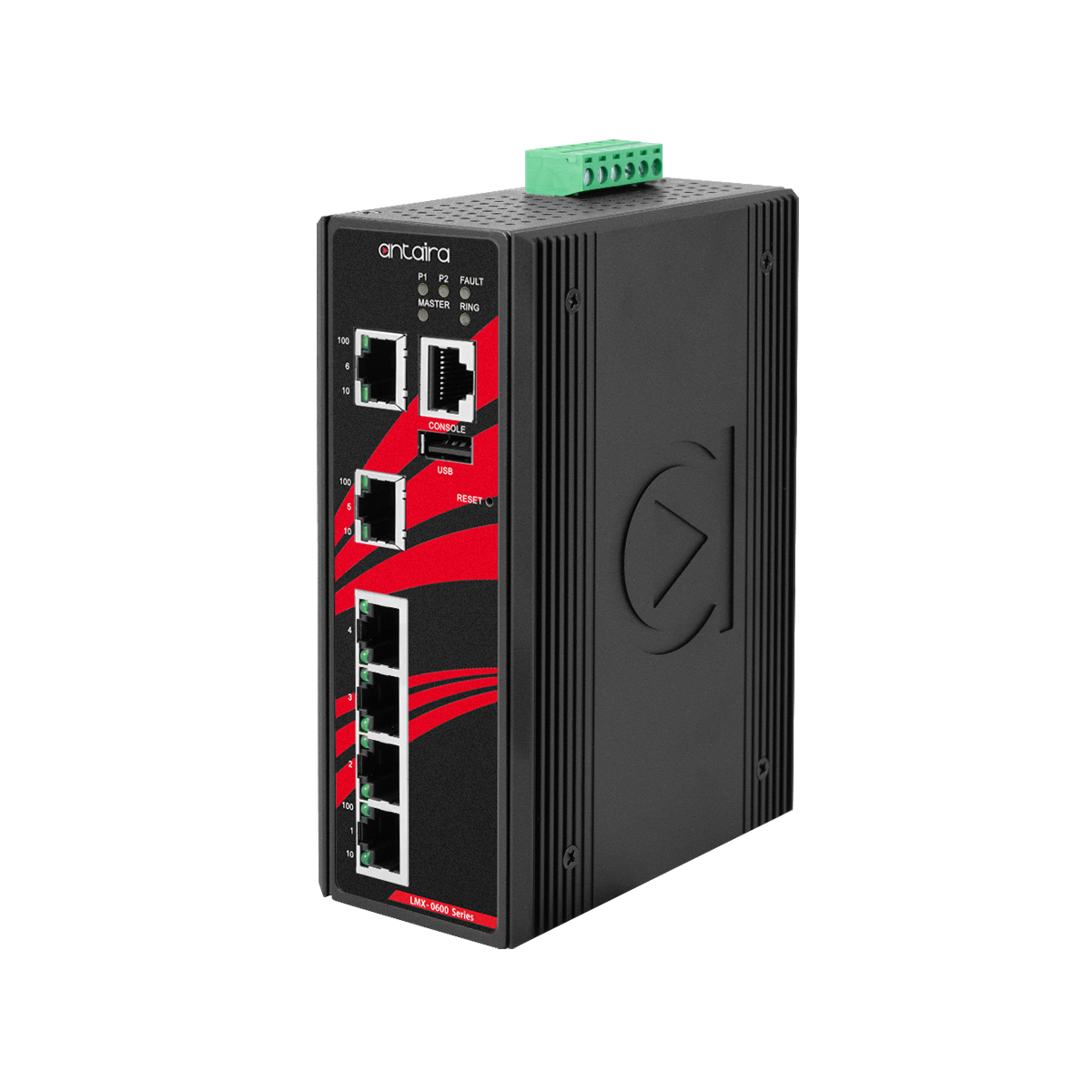

Antaira’s LMX-0600 is a 6-port industrial managed Ethernet switch that is embedded with 6*10/100Tx fast Ethernet ports. This is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software, and supports a user
friendly web console interface for easy configuration.

The LMX-0600 is IP30 rated, DIN-rail mountableIt supports industrial standard temperature range from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water
wastewater, and any other outdoor or harsh environment.

Supports 6*10/100Tx Fast Ethernet Ports
Network Redundancy support: RSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2, up to 256 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
System Warning Setting for Automatic Warning through E-Mail
Redundant Power Input Design – 12~48VDC
Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
Operating Temperature – STD: -10 to 70C
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch) IEEE 802.1Q Virtual LANs (VLAN) IEEE 802.1x Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization IEEE 802.1ad Stacked VLAN Q-in-Q
Processing Type	Store and Forward
Protocol	CSMA/CD, IGMPv1/v2, SNMPv1/v2, TFTP, SNTP, SMTP, RARP, Syslog
Flow Control	IEEE 802.3x flow control, back pressure flow control
Ethernet Interface
Ethernet Port Count	6 ports
10/100 BASE-T(X)	6 ports
Other Interface
LED Indicator	Power 1, Power 2, Fault, Master, Ring: On / Off Ethernet Port: Link / Act
Performance
MAC Table Size	8K
Jumbo Frame	9.6 Kbytes
Memory Buffer	4 Mbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port
Switching Architecture	Back-Plane (Switching Fabric): 1.2Gbps
Software
Configuration	Web Console, Telnet, CLI
VLAN Group	0~4094 groups
IGMP Group	Up to 256 groups
Ethernet Redundancy	STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(
Power Requirements

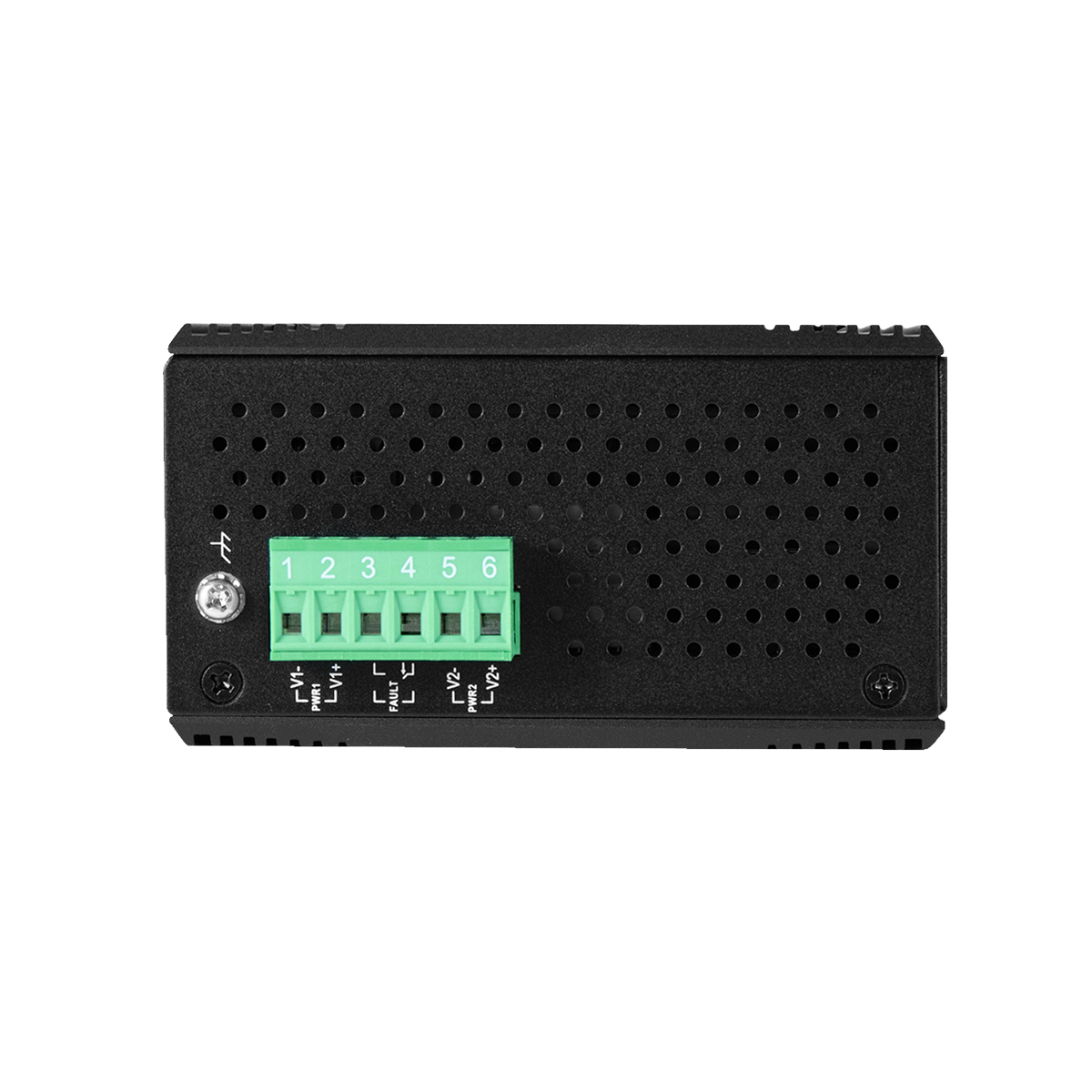

Power Connection	Removable 6-contact terminal block
Input Voltage	12V–48V DC, Redundant Input
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	7.5 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Environmental Limits
Operating Temperature	-10° to 70° C (14° to 158° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 protection

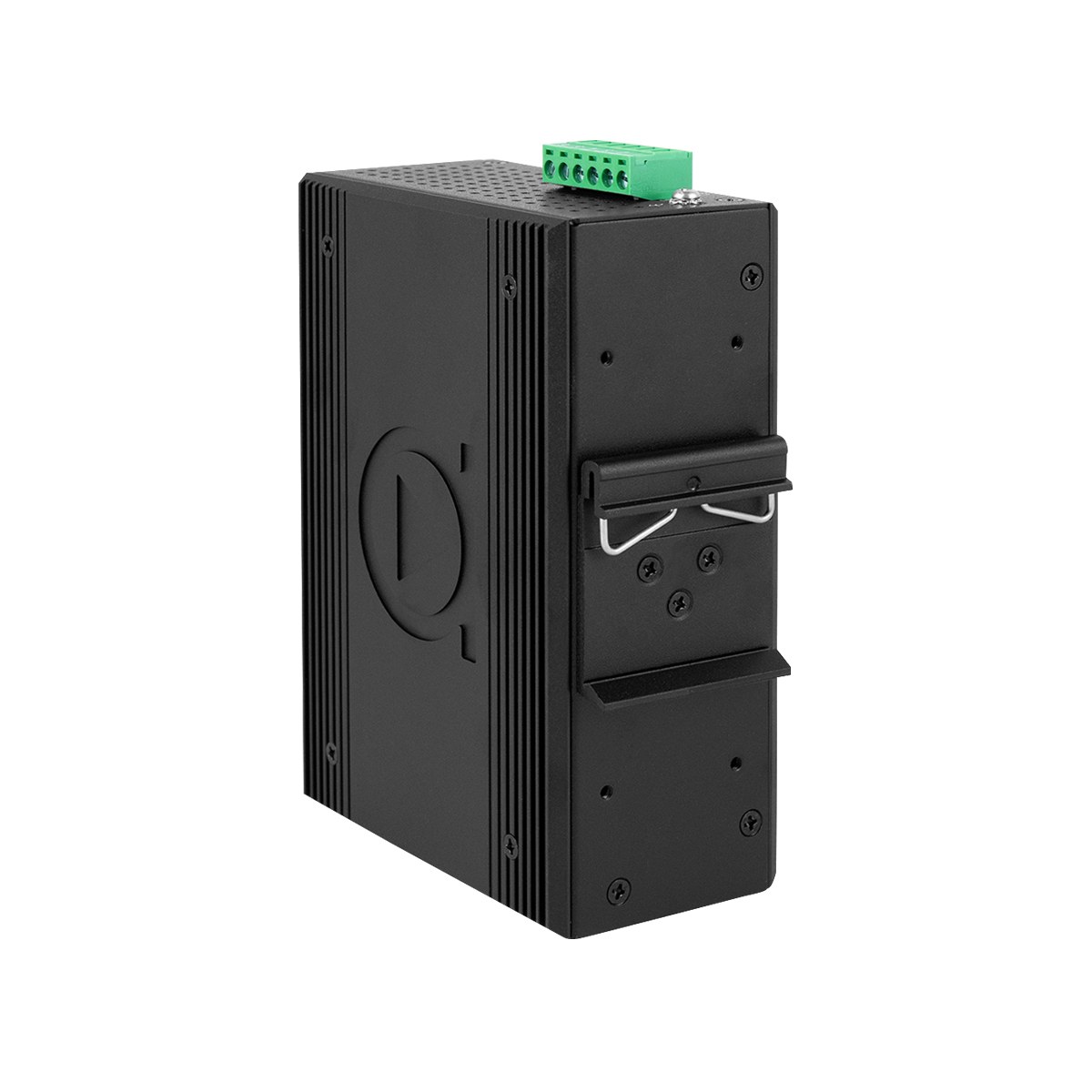

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	54 × 142 × 99 mm
Weight	Unit weight : 1.9 lbs Shipping weight : 2.7 lbs
Regulatory Approvals
Certifications	FCC, CE
UL 60950-1	✔
UL 61010-1 / UL 61010-2-201	✔
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A
EMS	CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Stability Testing	Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6
MTBF	583,856 hrs.
Green	RoHS Compliant
Warranty	5 years
