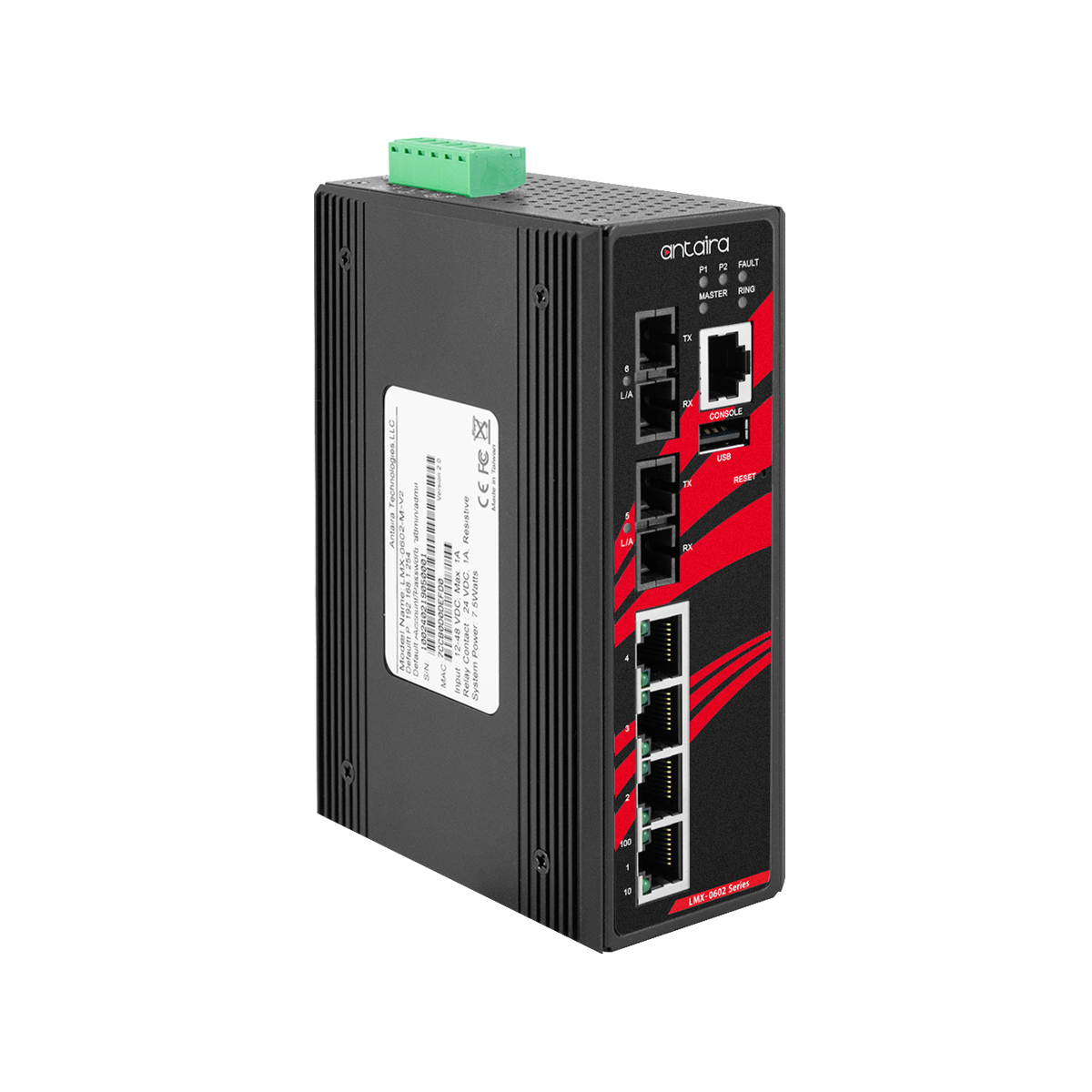

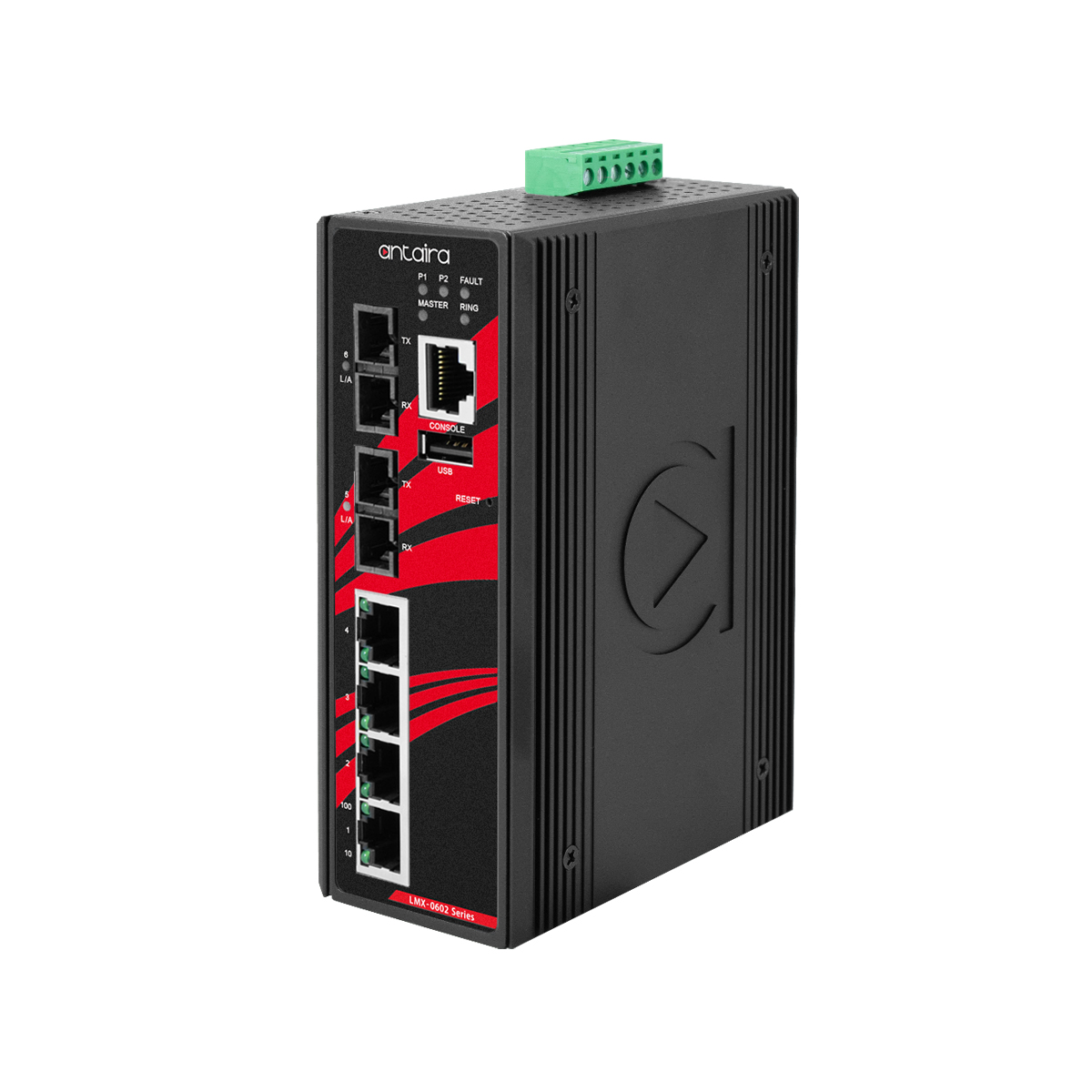

Antaira LMX-0602-S3-T-V2

Antaira’s LMX-0602-S3-T is a 6-port industrial managed Ethernet switch that is embedded with 4*10/100Tx fast Ethernet ports and 2*100Fx SC fiber connectors with single-mode 30Km support. It is a Layer 2 full manageable Ethernet switch pre-loaded with user
friendly web management console design. It supports Ring Network Redundancy function with market open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol <50ms network recovery time. The advanced network Filtering and Security functions,
IGMP, VLAN, QoS, SNMP, Port lock, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control network.

The LMX-0602-S3-T is a high performance industrial managed Ethernet switch with a compact size, IP30 rating, DIN-rail or wall mounting design, and extended operating temperature range from -40°C to 75°C. It provides high EFT and ESD protection for any industrial
networking applications within Power/Utility, Water Wastewater, Oil/Gas/Mining, Factory Automation, ITS-Transportation, Security Surveillance and any other outdoor or harsh environment.

• 4*10/100Tx RJ45 Ports and 2*100Fx SC Fiber Ports with Single-Mode 30Km
• Supports Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Port Lock Function for Unauthorized Access Based on MAC Address Blocking
• Auto Warning by Exception through E-mail, Relay Output
• Support RMON Function for Efficient Network Monitoring
• Support Port Mirroring for Online Diagnostic
• Extended Operating Temperature: -40°C to 75°C
• 5-Year Warranty
