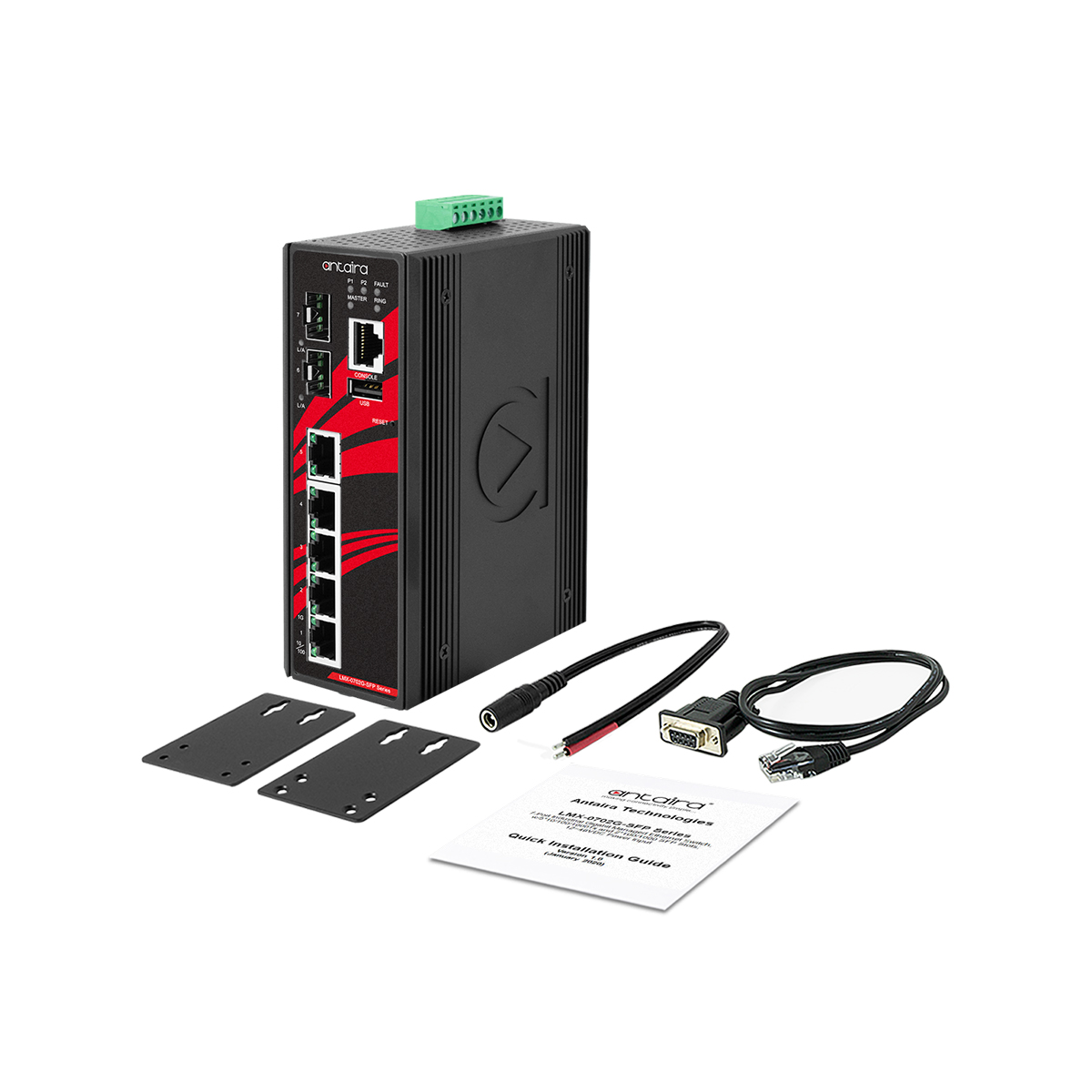

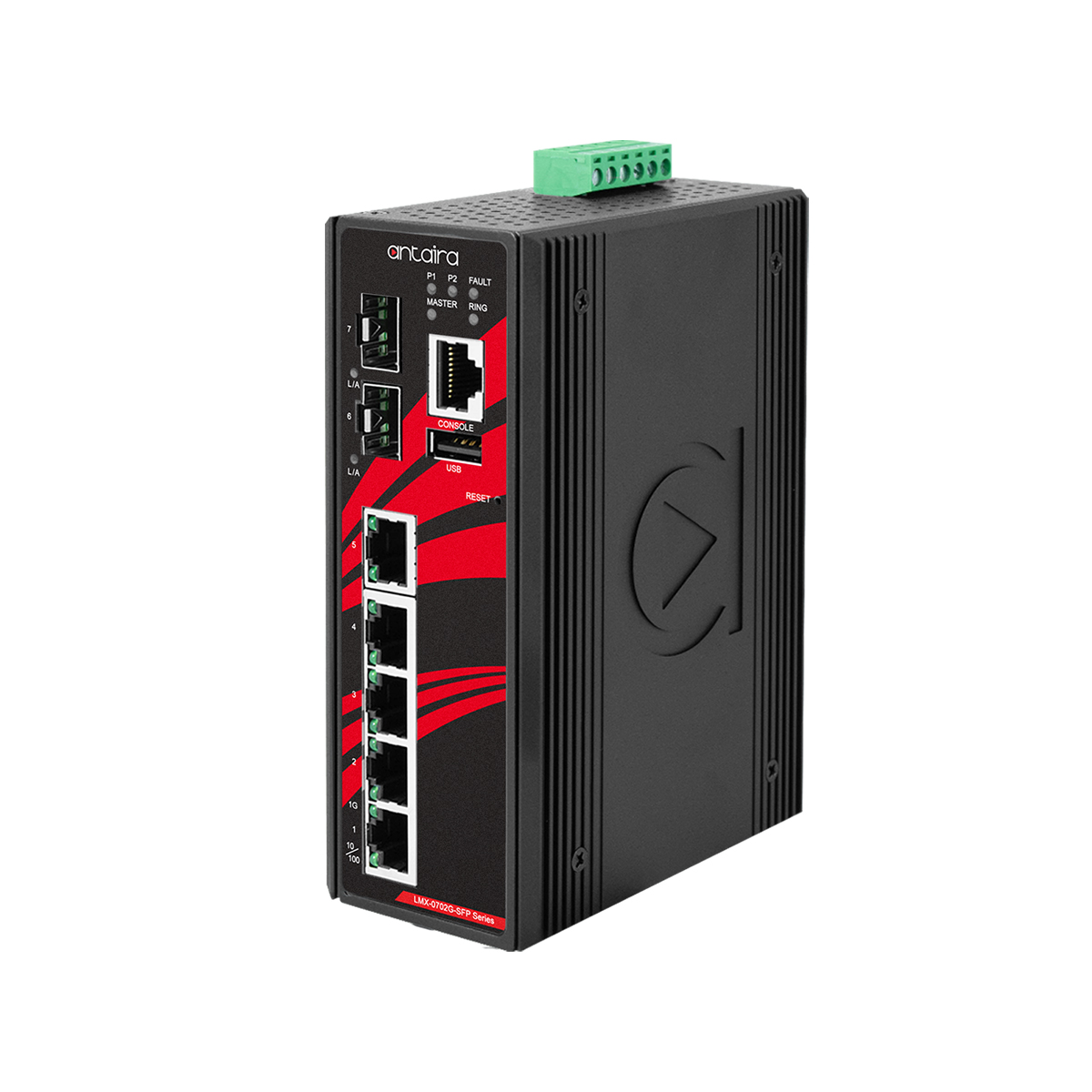

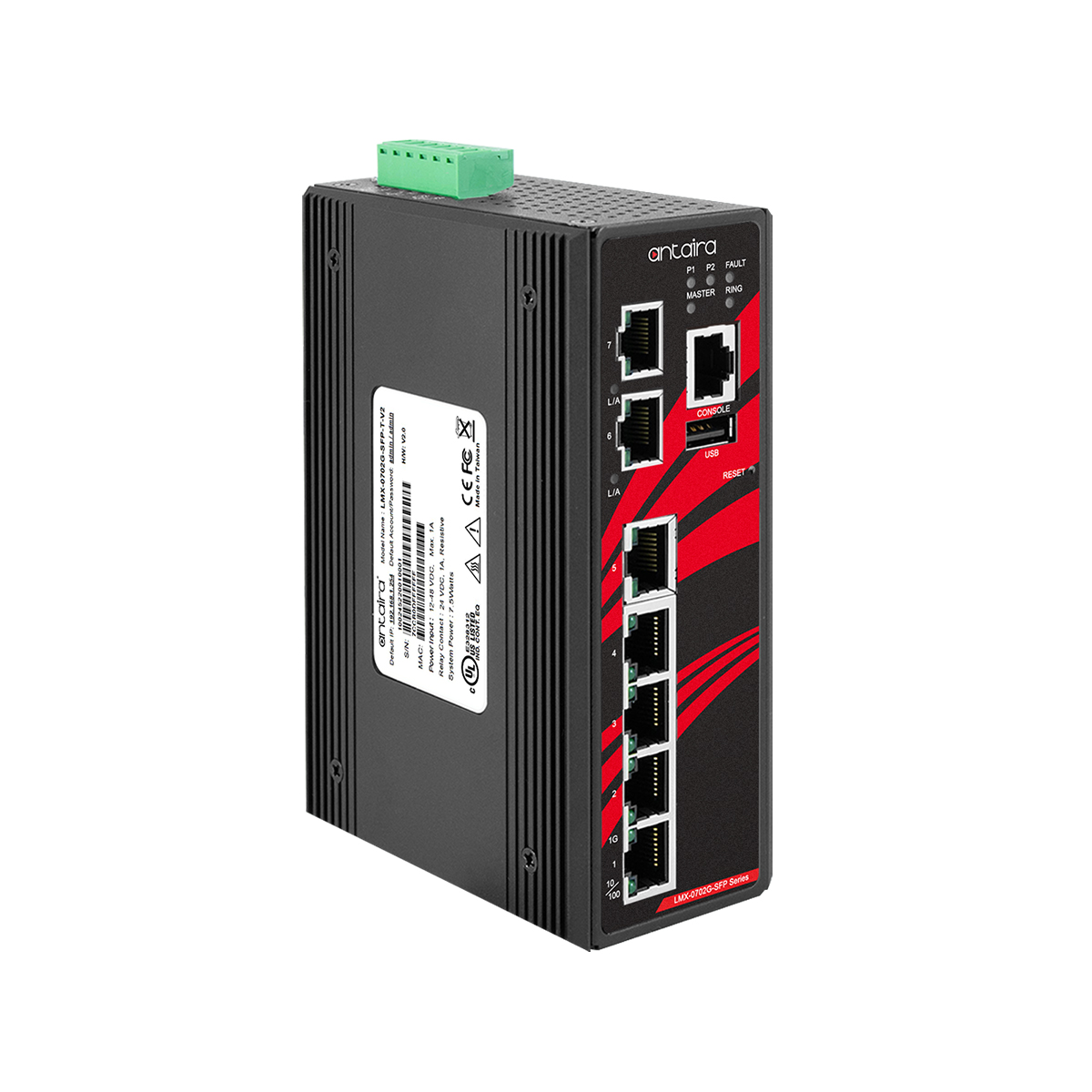

Antaira LMX-0702G-SFP-V2

Antaira Technologies’ LMX-0702G-SFP-V2 is a 7-port industrial Gigabit managed Ethernet switch embedded with 5*10/100/1000Tx Ethernet ports and 2*100/1000 SFP slots. This model can operate in industrial standard temperatures from -10° to 65°C. It is a fully
manageable Light Layer 3 Ethernet switch pre-loaded with a user-friendly web management console design. It supports a ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol supportsing
network recovery time less than 50ms.

The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

LMX-0702G-SFP-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other
outdoor or harsh environment.

• Supports 5*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2/v3, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c
• System Warning Setting for Automatic Warning through E-Mail

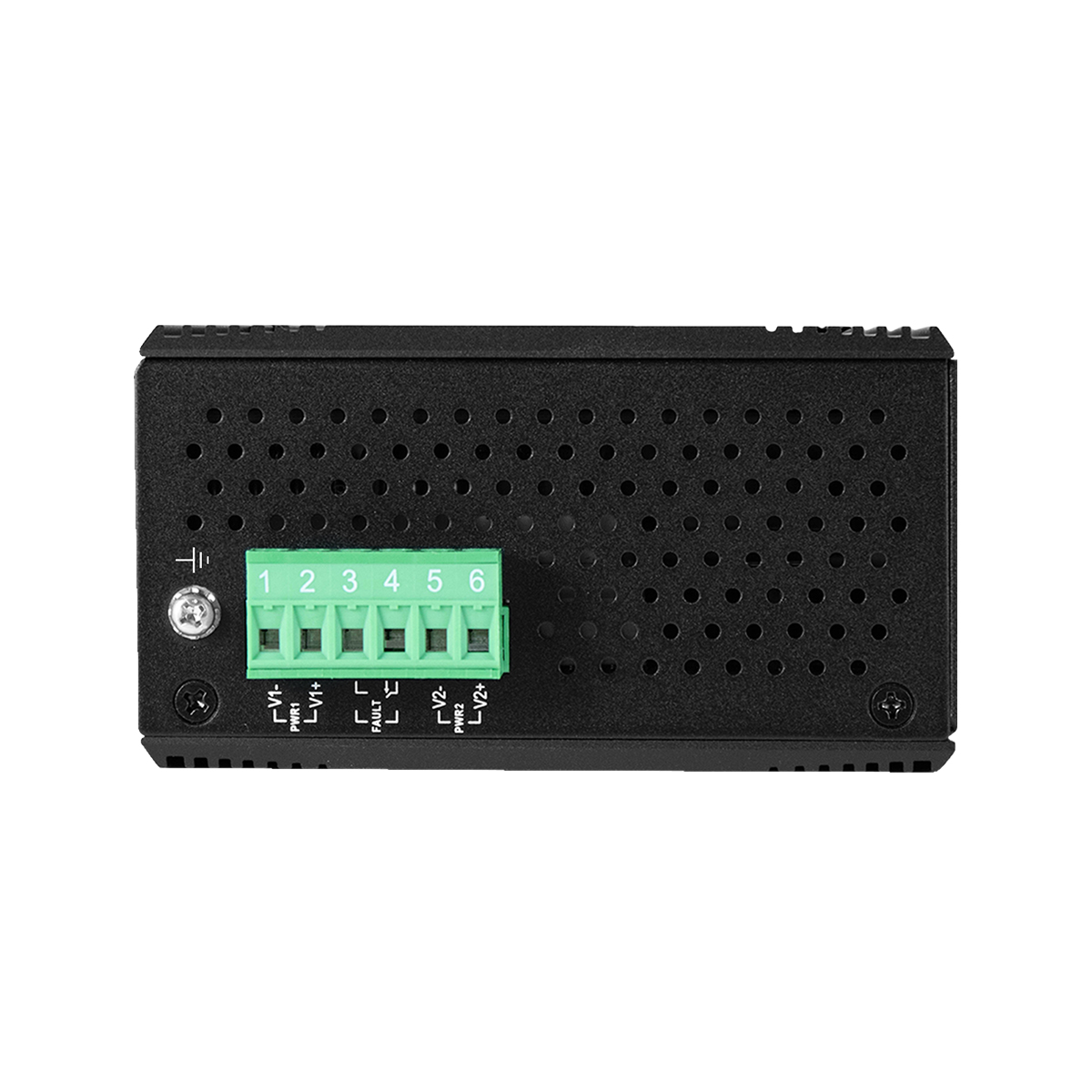

• Power Input: 12~48VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP30 Protection

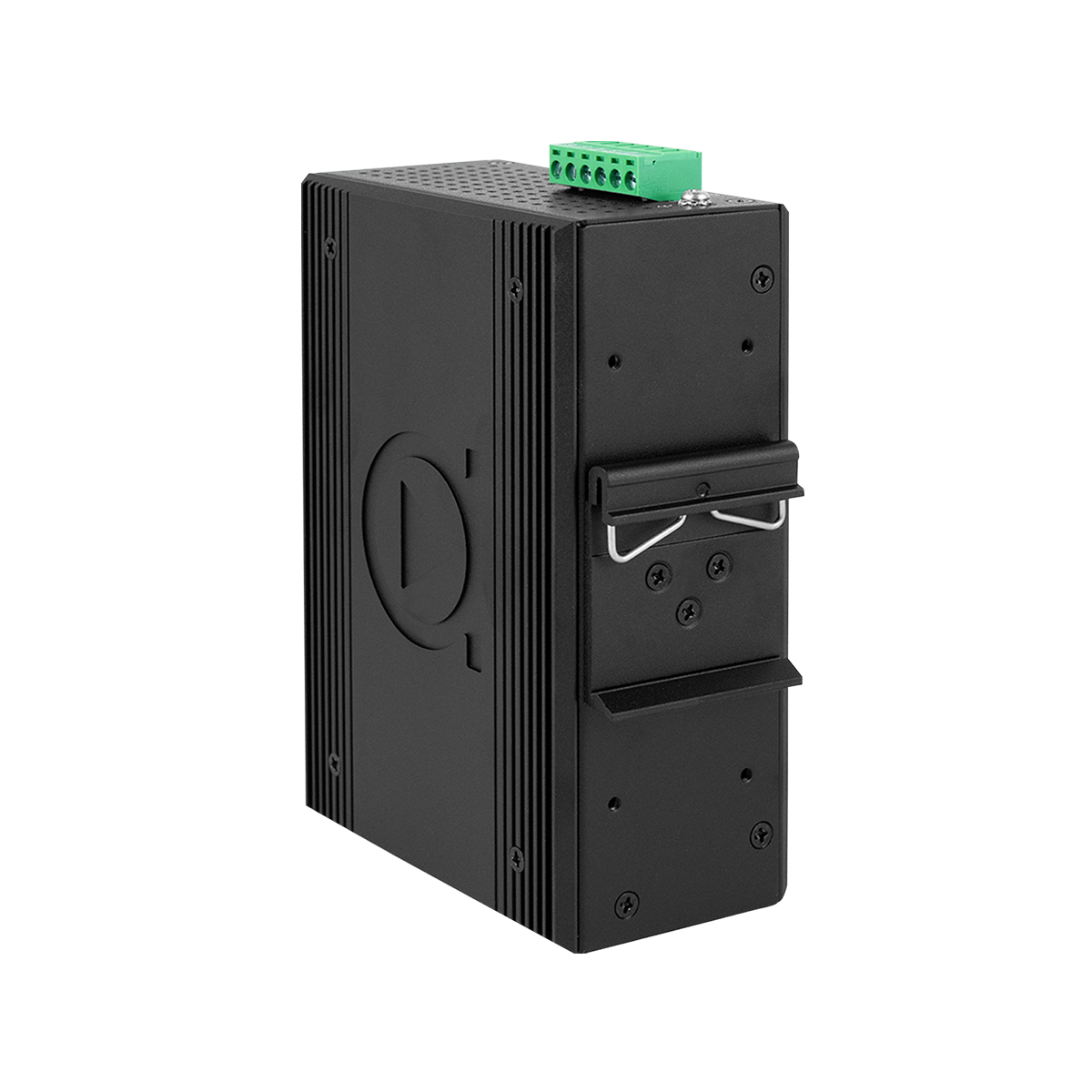

• DIN-Rail or Wall Mountable
• Operating Temperature Range
• STD: -10° to 65°C
• 5-Year Warranty
