Antaira LMX-1202G-SFP-T

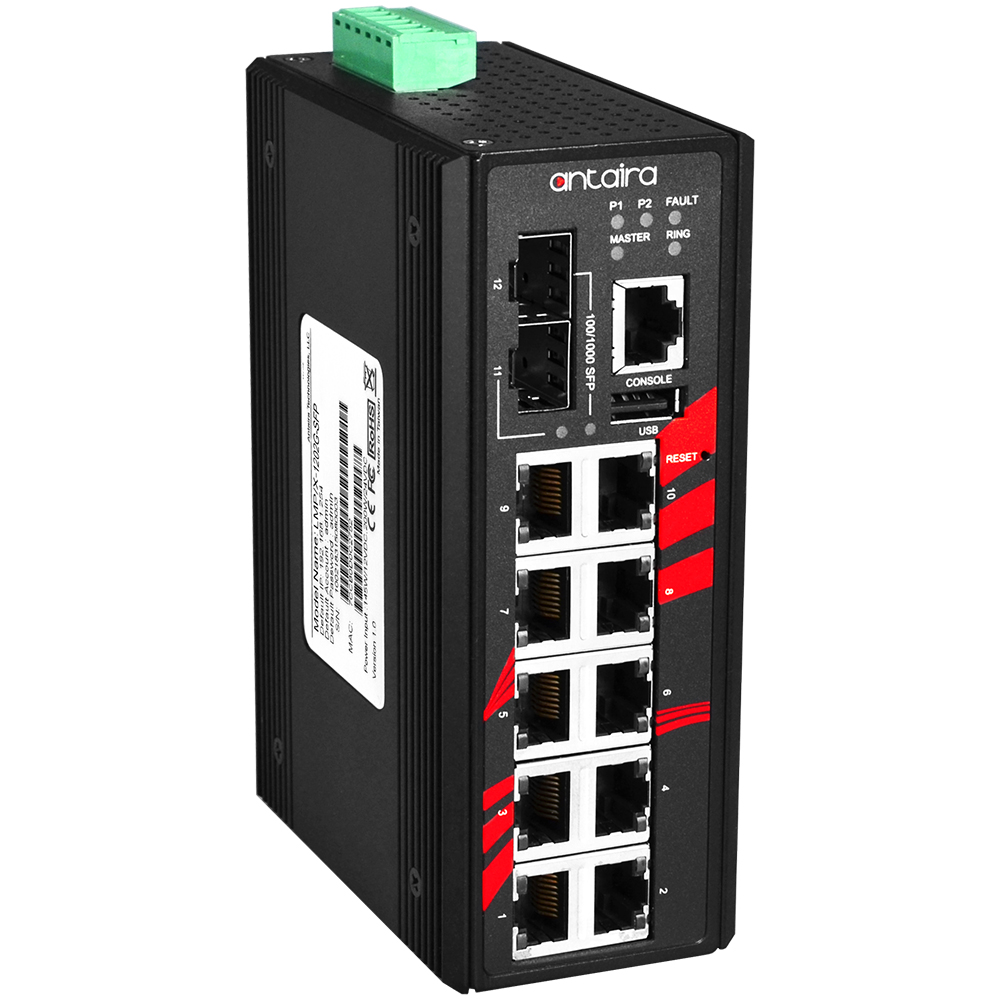

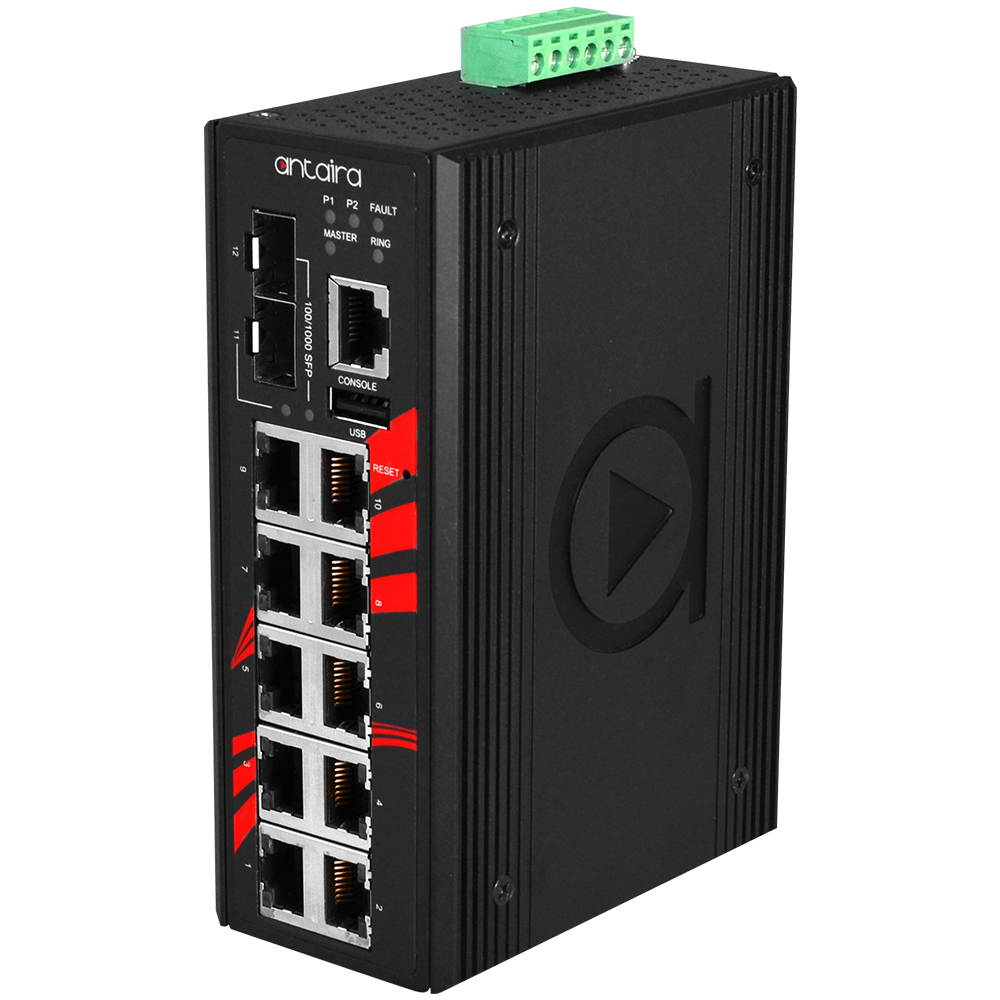

Antaira’s LMX-1202G-SFP-T is a 12-port industrial gigabit managed Ethernet switch that is embedded with 10*10/100/1000Tx Fast Ethernet ports and two dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with
standard Layer 2 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions.
The LMX-1202G-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory
automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.
- Supports 10*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/3
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 12~48VDC

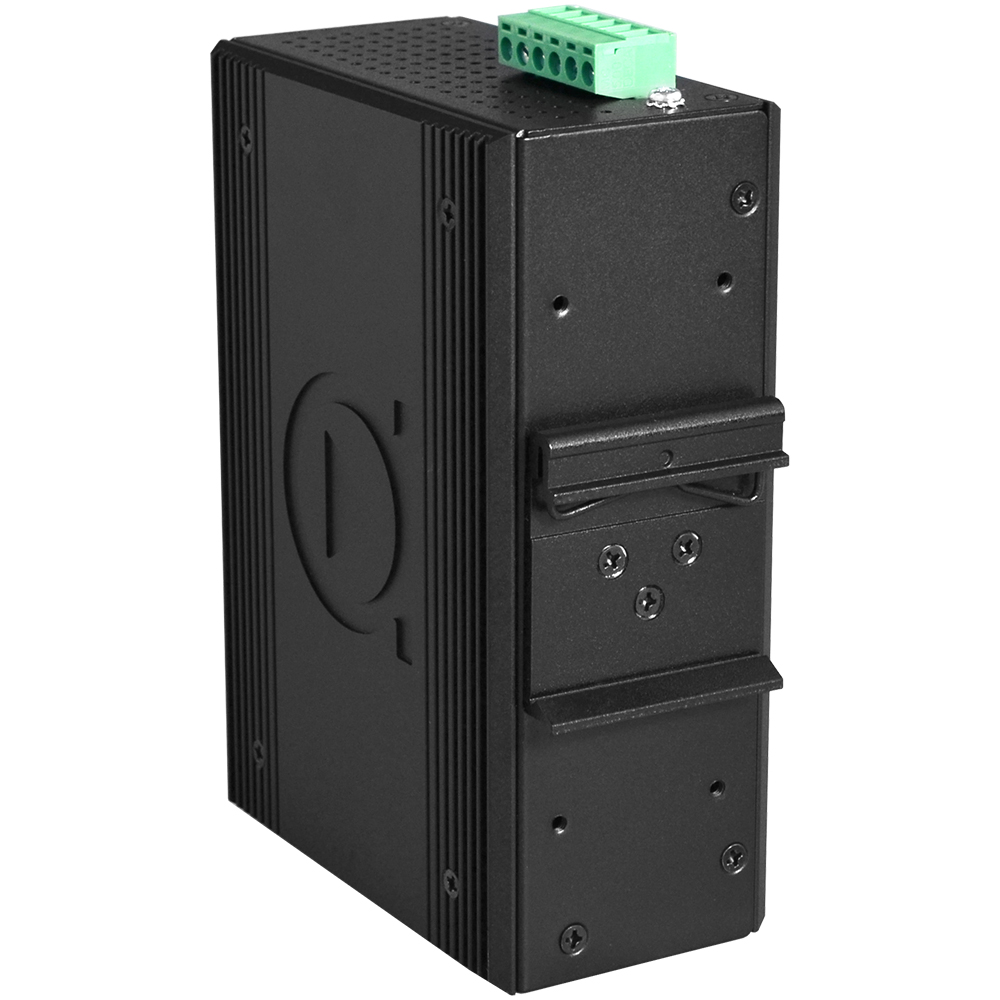

- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Extended Operating Temperature: -40°C to 75°C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber IEEE 802.3x Flow Control IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-TG.8032 / Y.1344 ERPS (Ethernet Ring Protection Switch) IEEE 802.1Q Virtual LANs (VLAN) IEEE 802.1x Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization |
| Processing Type | Store and Forward |
| Protocol | IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 10 ports |
| 10/100/1000 BASE-T(X) | 10 ports |
| Fiber Interface | |
| Fiber Port Count | 2 ports |
| 100/1000 BASE-(F)X SFP | 2 ports |
| Wavelength | Refers to SFP module |
| Performance | |
| MAC Table Size | 8K |
| Jumbo Frame | 9.6 Kbytes |
| Memory Buffer | 4 Mbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 24Gbps |
| Software | |
| Configuration | Web Console, Telnet, CLI |
| VLAN Group | 1~4094 groups |
| IGMP Group | Up to 256 groups |
| Ethernet Redundancy | STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2( |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 15 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |

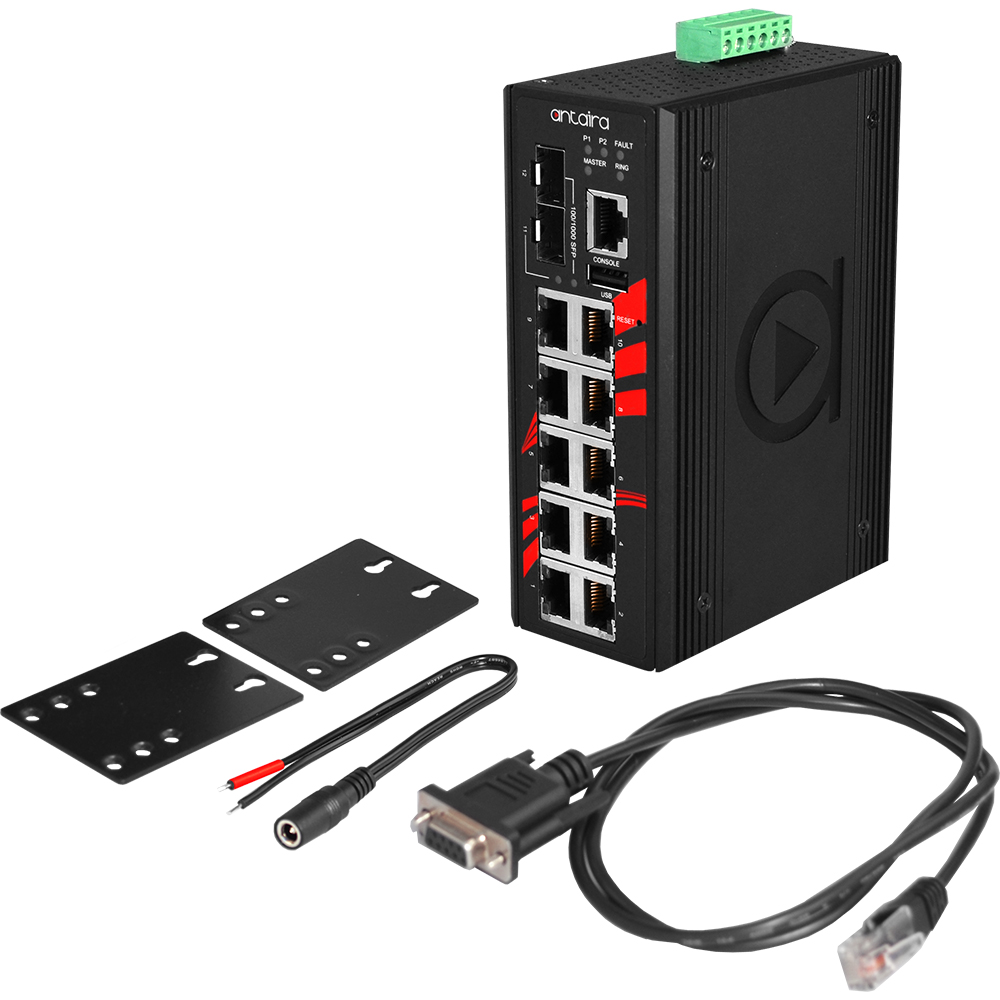

| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 54 × 142 × 99 mm |
| Weight | Unit weight : 2.2 lbs Shipping weight : 3.0 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 60950-1 | ✔ |
| UL 61010-1 / UL 61010-2-201 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| ATEX | ✔ |
| NEMA TS2 | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
