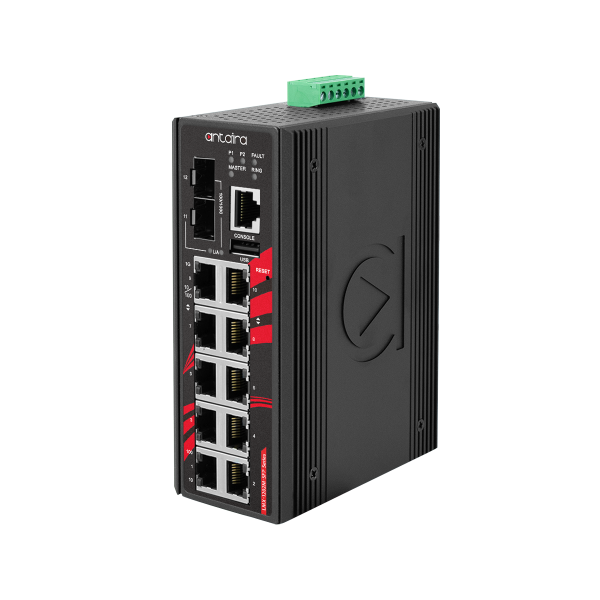

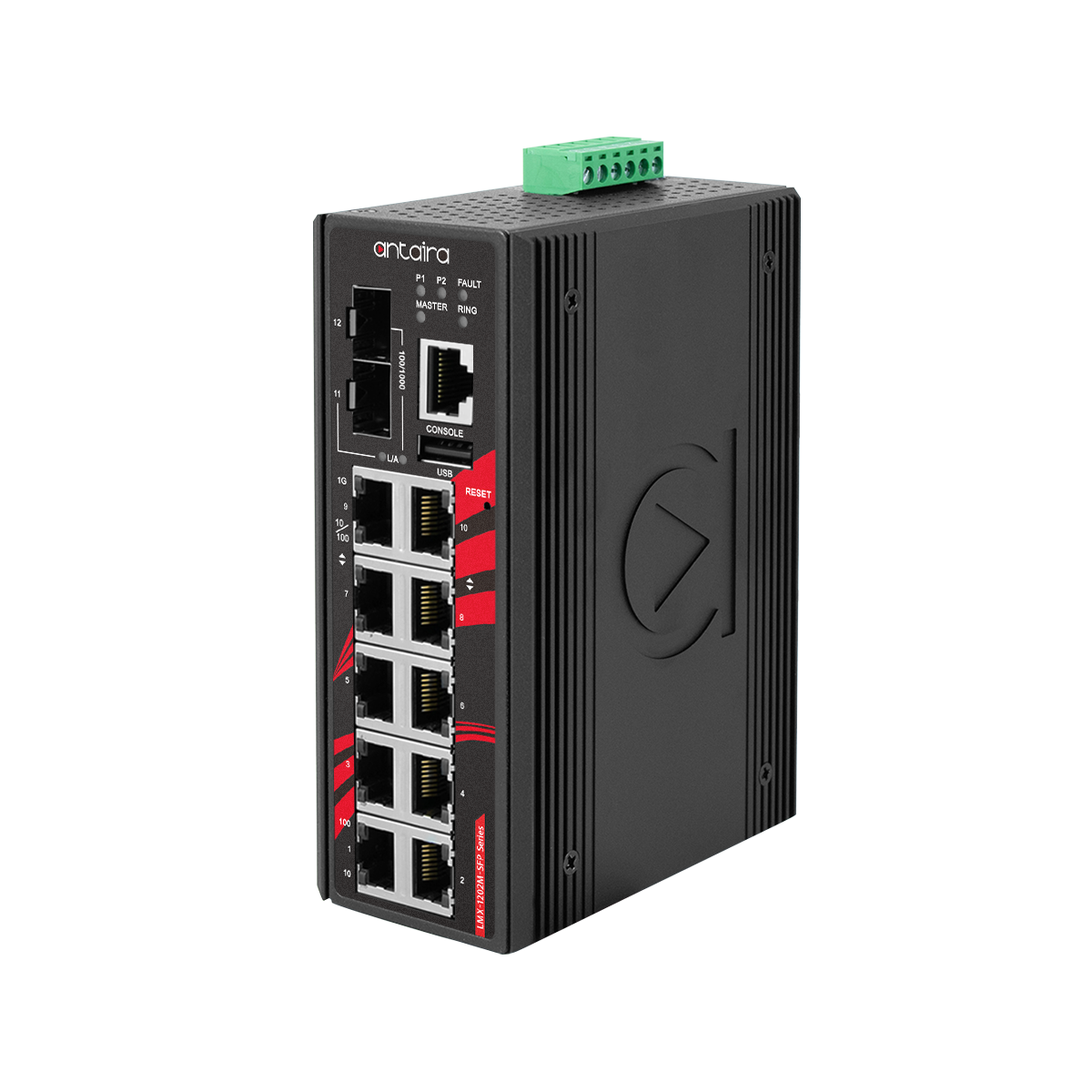

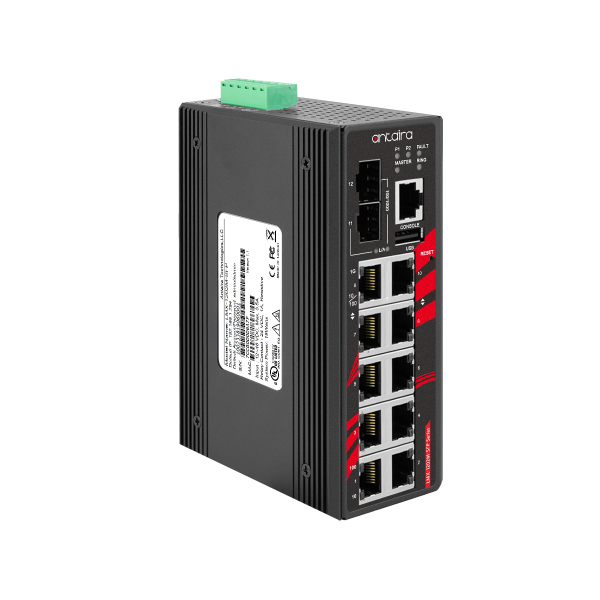

Antaira LMX-1202M-SFP-T

Antaira’s LMX-1202M-SFP series is a 12-port industrial gigabit managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports, 2*10/100/1000Tx RJ45, and 2*100/1000 dual rate SFP slots. This model is a fully manageable industrial Ethernet switch
pre-loaded with standard Layer 2 network management software. The RJ45 ports provide flexibility to users for either 10/100 or 1000Tx Ethernet connections. The plug-in SFP modules provide 100MB or Gigabit Fiber connection where distance, EMI, or security is
a concern.

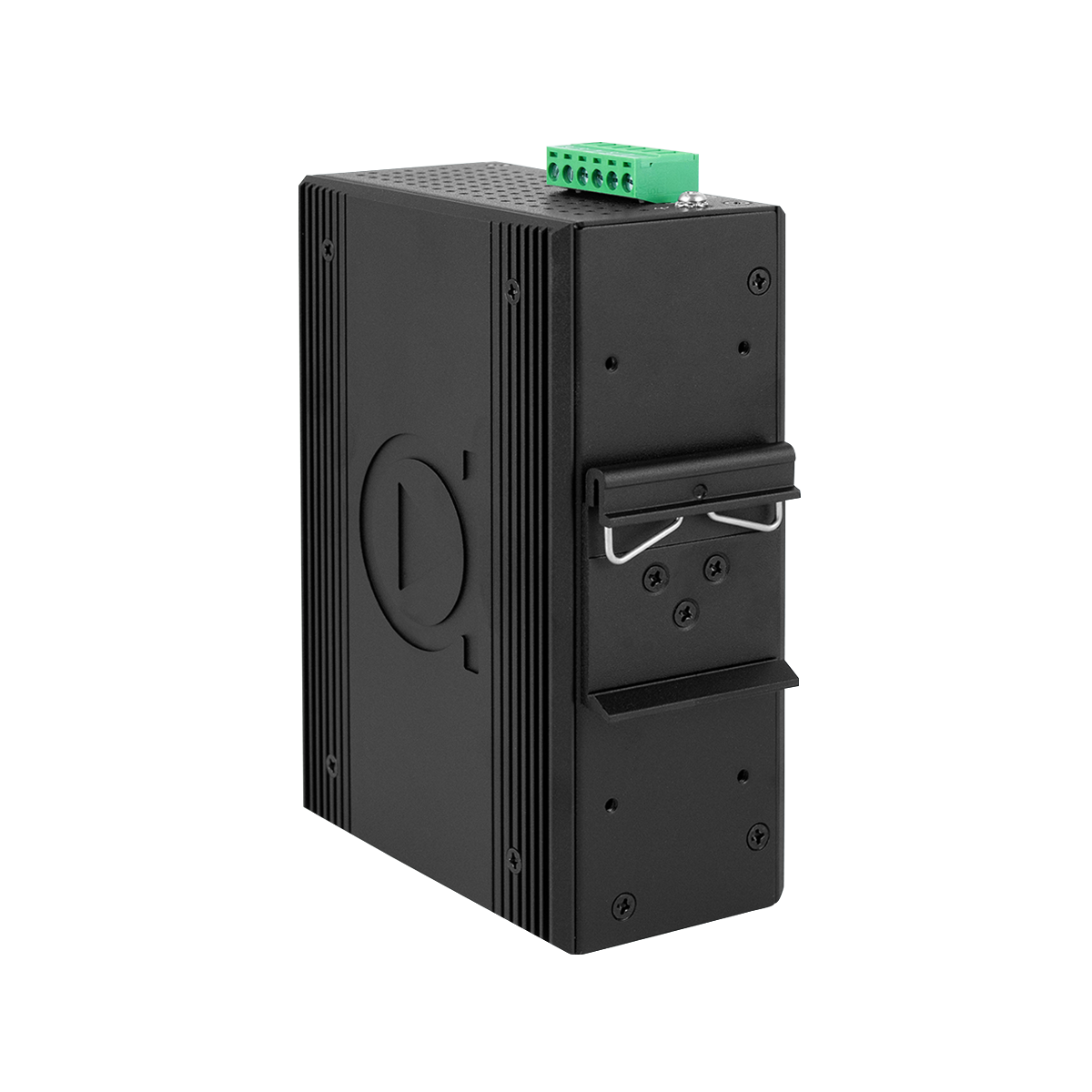

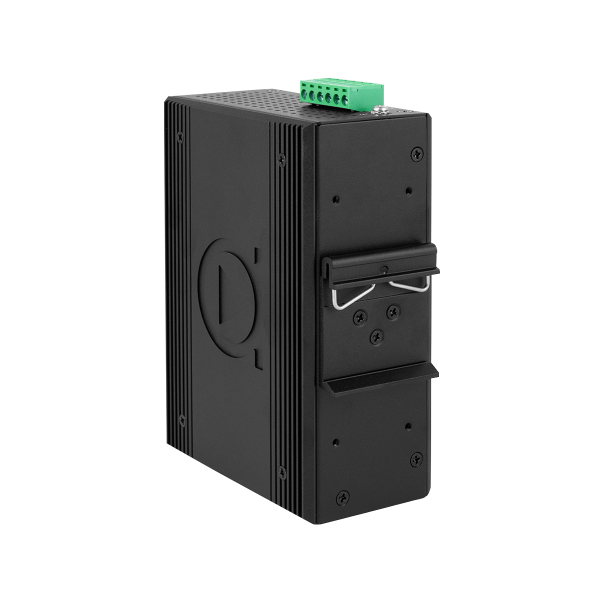

The LMX-1202M-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also
provides high EFT and ESD protection for industrial networking applications; such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.

• Supports 8*10/100Tx Fast Ethernet Ports, 2*Gigabit 10/100/1000Tx RJ45 and 2*100/1000 SFP Slots for Fiber Connection
• Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• Configuration: Web Console, Telnet, CLI Command
• IGMP v1/v2 for Multicast Traffic Filtering
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Auto Warning by Exception through E-mail, Relay Output
• Support RMON Function for Efficient Network Monitoring
• Support Port Mirroring for Online Diagnostic
• 5-Year Warranty
