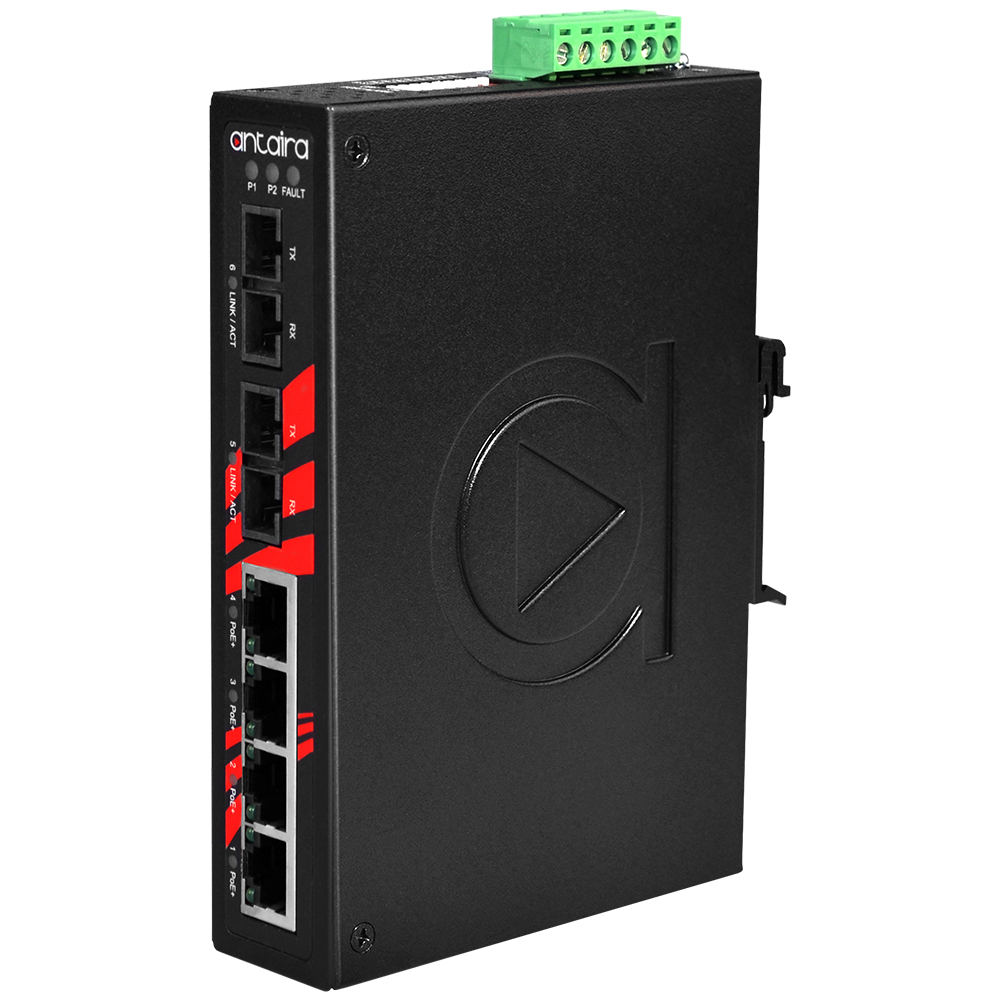

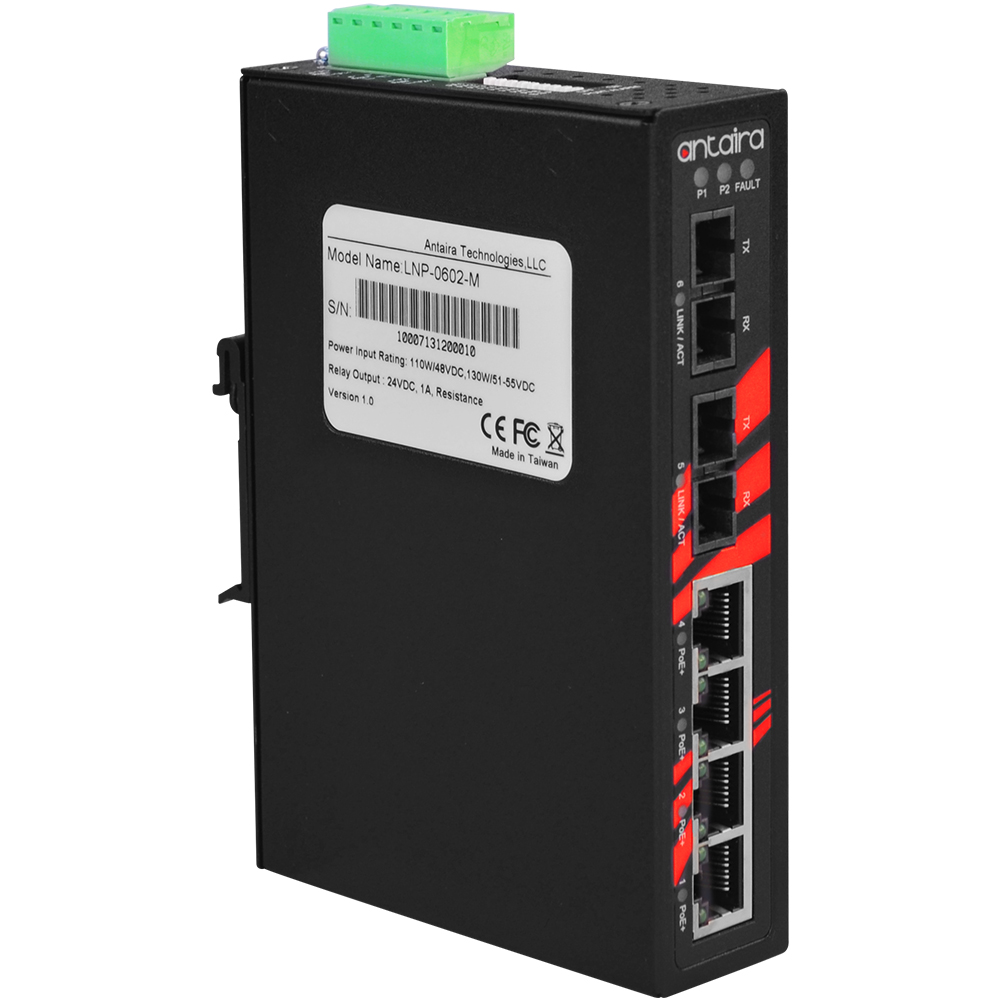

Antaira LNP-0602-M

Antaira’s LNP-0602-M is a smart 6-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 4. It comes with 2 x 100Fx ports with SC type connectors for multi-mode 2Km. LNP-0602 supplies a power source
up to 30 watts/per port @ 51~55VDC output; with 48~55VDC power input support. It offers an Extended Operating Temperature model (w/-T) that supports from -40° to 75° C. It also supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X
auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

• Network broadcast storm protection
• 4-Ports IEEE 802.3at compliant PoE+ Function with 30W/Port
• 2-Ports 100Fx SC/ST type connector (Multi / Single mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• Redundant Power Input Design – 48~55VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design

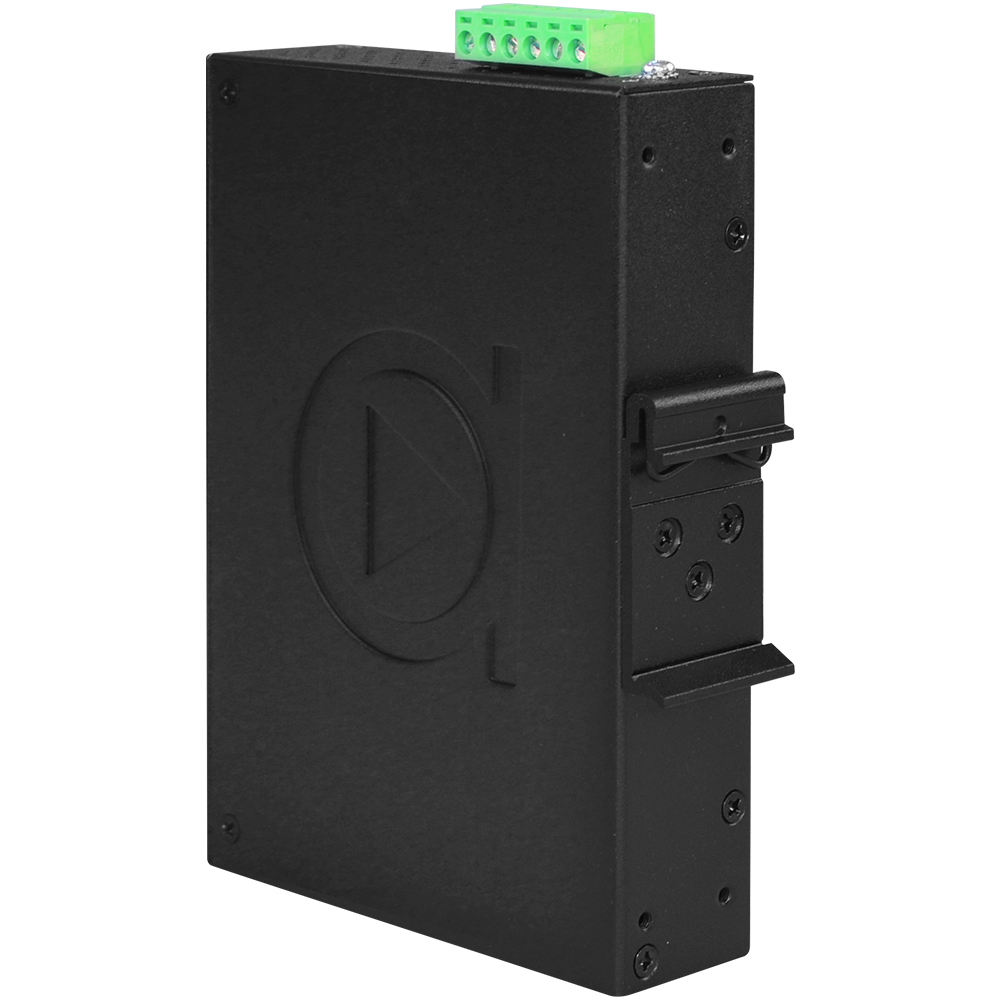

• DIN-Rail and Wall Mount support
• Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty
