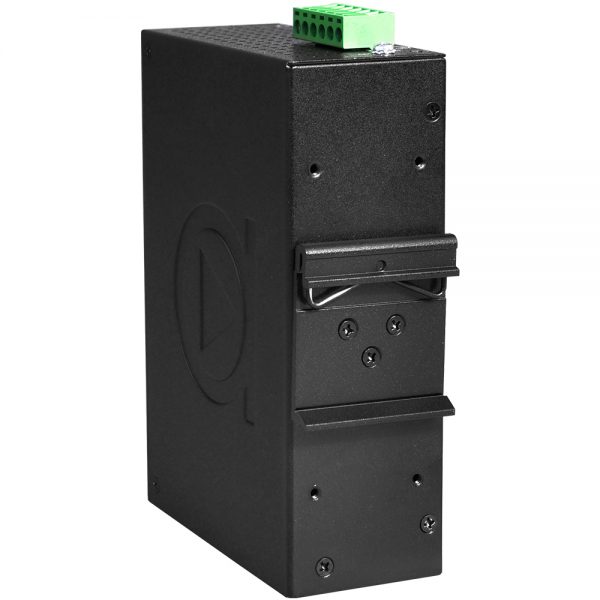

Antaira LNP-0802-M-24-T

Antaira’s LNP-0802-24-T is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 6. The switch comes with 2 x 100Fx ports with SC type connectors for multi-mode 2Km. LNP-0802-24 enables centralization
of the power supply and provides up to 30 watts of power per port. This switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full
or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks
occur.

• Network broadcast storm protection
• 6-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
• 2-Port 100Fx SC type connector Multi-Mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• Redundant Power Input Design – 12~36VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty
